Physics
-
Electrical Accessories
Spectrum Tube Power Supply
Housed in a black metal body, specially designed spectrum tube sockets enable the tube to be placed in position easily and also provide protection against electrical contact. The bottom socket is spring-loaded for easy tube placement and removal. Holds up to 26cm spectrum tubes.
For use with Spectrum Tubes PH95014.
PH61025 -
Electrical Accessories
Advanced Power Supply
This advanced power supply is widely used due to its high precision, reliable performance, and overload protection circuit. This power supply provides a continuously variable, regulated DC voltage with excellent load and line regulation. The power supplies work in both constant voltage (CV) and constant current (CC) modes. Coarse and fine knobs are provided for very minute adjustments. Dual displays help continuously monitor both output voltage and current. Outputs are provided with overload and short circuit protection. The power supply operates on 220 V (±10 %), 50 / 60 Hz input.
Output Volts: 0 – 12V DC
Output Current: 0 – 5 APH61033D/5 -
Electrical Accessories
Advanced Power Supply
Advanced power supply is specially designed for scientific research and product development in laboratories, universities, colleges and electronic production lines. This instrument is widely used due to its high precision, reliable performance and overload protection circuit. This power supply provides a continuously variable, regulated DC voltage with excellent load and line regulation. The power supplies work in both constant voltage (CV) and constant current (CC) mode. Dual displays help continuously monitor both output voltage and current. Outputs are provided with overload and short circuit protection. Power supply operates on 220V (±10 %), 50/60Hz input.
Please mention ‘A’ for analog and ‘D’ for digital meter at the end of part no. to specify the display required.
PH61035 -
Electrical Accessories
Constant Current Power Supply
This power supply, specially designed for Hall Probe Experiment (PH93225), provides 100% protection against crystal burn-out due to over current protection circuit. The power supply is regulated and ripple-free.
Specifications:
Output Current: 0 – 20 mA DC.
Resolution: 10 μA.
Display: 3½ digit LED.
Power Supply: 220 V (±10 %), 50 / 60 Hz.Suggested Leads (not included): PH90051/3, PH90051/4
PH61500 -
Electrical Accessories
Power Supply E.H.T
A floating, high voltage power source useful for supplying a charge for quantitative electrostatic experiments, gas discharge tubes/spectrum tubes. Continuously variable output up to 6 KV DC. 6V/2A AC or 12V/2A AC filament heating supply, insulated for EHT Voltages. Current limited output: 0-6 KV DC, 50μA with 50MΩ resistor is also provided in this power supply. A rotary control knob is provided on the front panel to adjust the EHT output. The non-hazardous maximum load capacity of 3mA (short circuit current). A digital meter is provided on the front panel to set the required voltage. All outputs via clearly marked 4mm shielded sockets. Both input and output fuse is protected. Plastic Box with Indicator type ON/OFF switch. Supplied complete with detachable mains lead.
Suggested Leads (not included): PH90051/3, PH90051/4
PH62053 -
Electrical Accessories
Smoothing Unit
Smoothing unit reduces ripple from nonregulated power supplies. Maintains a ripple-free output when high currents are drawn. Unit comprises of a LC network of an inductor with two 2200µF capacitors. Maximum input can be upto 8A at 35V, absolute maximum 40V DC.
PH62500 -
Electrical Accessories
Voltmeter, Moving Coil
For D.C. measurements, any single range, 0-1, 1.5, 2, 5, 10, 25, 50, 100, 250, 300 volts. The ranges covered are 0 – 1 Volt to 0 – 600 Volt.
For D.C. use only, with a permanent magnet, spring-controlled movement, jeweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic/acrylic stand with color-coded terminals.
PH63001 -
Electrical Accessories
Milli-Voltmeter, Moving Coil
For D. C. measurements, any single range, 0-25, 50, 100, 150, 250, 500mV. The ranges covered are 0 – 1 mV to 0 – 1000 mV.
For D. C. use only, with a permanent magnet, spring-controlled movement, jeweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic/acrylic stand with color-coded terminals.
PH63003 -
Electrical Accessories
Ammeter, Moving Coil
For D. C. measurements, any single range, 0-1, 1.5, 3, 5, 10 Amp. The ranges covered are 0 – 1 Amp to 0 – 10 Amp, with an internal shunt.
For D. C. use only, with a permanent magnet, spring-controlled movement, jeweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic/acrylic stand with color-coded terminals.
PH63005 -
Electrical Accessories
Milli-Ammeter, Moving Coil
For D. C. Measurements, any single range, 0-1, 5, 10, 25, 50, 100, 250, 500 mA. The ranges covered are 0 – 10 mA to 0 – 1000 mA.
For D. C. use only, with a permanent magnet, spring-controlled movement, jeweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic/acrylic stand with color-coded terminals.
PH63007 -
Electrical Accessories
Micro-Ammeter, Moving Coil
For D.C. measurements, any single range, 0-50, 100, 150, 200, 250, 500, A. The ranges covered are 0-100 uA to 0-500 uA.
For D.C. use only, with a permanent magnet, spring-controlled movement, jeweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic/acrylic stand with color-coded terminals.
PH63009 -
Electrical Accessories
Galvanometer, Moving Coil
For D. C. measurements, Scale 35-0-35 or 50-0-50.
For D.C. use only, with a permanent magnet, spring-controlled movement, jeweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic/acrylic stand with color-coded terminals.PH63012 -
Electrical Accessories
Voltmeter, Dual Scale, Moving Coil
For D. C. measurements. 1/5, 3/15, 5/15 Volts. The ranges covered are 0 – 1 Volt to 0 – 600 Volt.
For D.C. use only, with a permanent magnet, spring-controlled movement, jeweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic/acrylic stand with color-coded terminals.
PH63019 -
Electrical Accessories
Ammeter, Dual Scale, Moving Coil
For D.C. measurements. 2.5/5, 1/5, 1.5/3, 5/10 Amps. The ranges covered are 0 – 1 Amp to 2 – 10 Amp, with an internal shunt.
For D.C. use only, with a permanent magnet, spring-controlled movement, jeweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic/acrylic stand with color-coded terminals. These meters are available in the following sizes:
PH63021 -
Electrical Accessories
A.C. Voltmeter, Moving Coil
Permanent magnet type with in-built rectifier, any single range, 0-30, 60 Volts. The ranges covered are 0 – 1 Volt to 0 – 600 Volt.
For D.C. use only, with a permanent magnet, spring-controlled movement, jeweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic/acrylic stand with color-coded terminals.
PH63027 -
Electrical Accessories

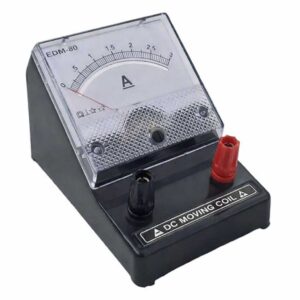

Desk Stand Ammeter
Analog Moving Coil Ammeter is housed in a sturdy plastic case and the connections are brought out on the front panel and connected to 4mm colour coded battery terminals.
It is designed for educational purpose and bench top use in schools, colleges, universities, scientific, industrial and research labs.
Available in different current ranges for both AC and DC.Single Ranges
50uA, 100uA, 250uA, 300uA, 500uA, 1mA, 5mA, 10mA,
50mA, 100mA, 300mA, 500mA, 1A, 3A, 5A, 10APH63030R
