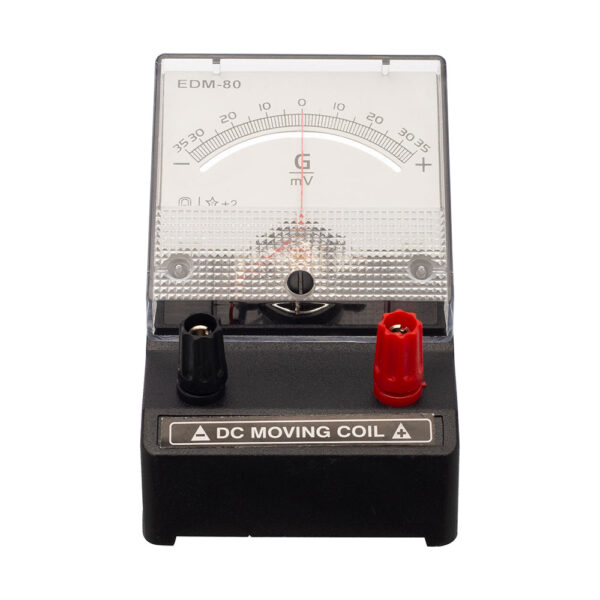

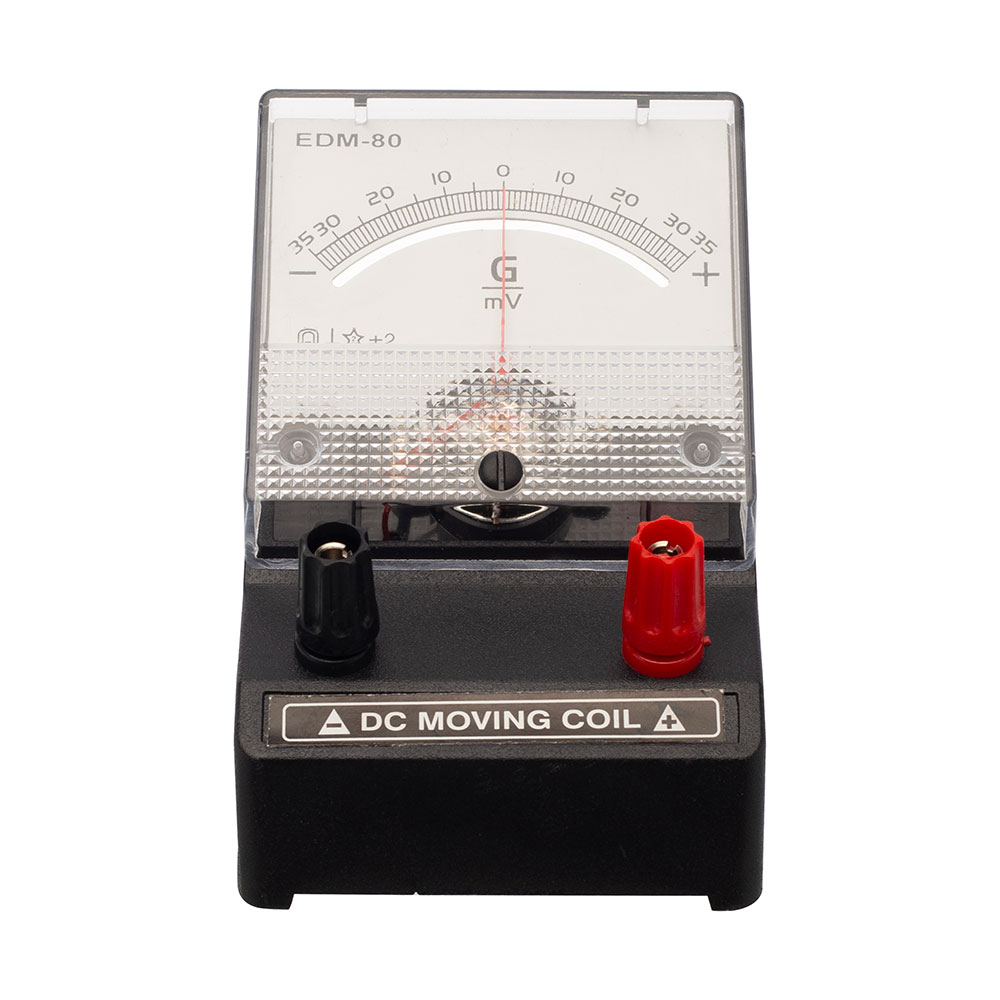

Galvanometer, Moving Coil
For D. C. measurements, Scale 35-0-35 or 50-0-50.
For D.C. use only, with a permanent magnet, spring-controlled movement, jeweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic/acrylic stand with color-coded terminals.
PH63012
Available Options
| Cat. No. | Model | Description | Quantity | |
|---|---|---|---|---|
| PH63012 | MR-100 | Scale Length approx. 85 mm with anti-parallax mirror scale, dial size 80 x 100 mm with color coded terminals. Overall size approx. 100 x 100 x 140 mm. | ||
| PH63012 | EDM-80 | Scale Length approx. 60 mm with anti-parallax mirror scale, dial size 72 x 72 mm with color-coded terminals. Overall size approx. 90 x 110 x 125 mm. Accuracy: +2% FSD |
