Power Supply E.H.T

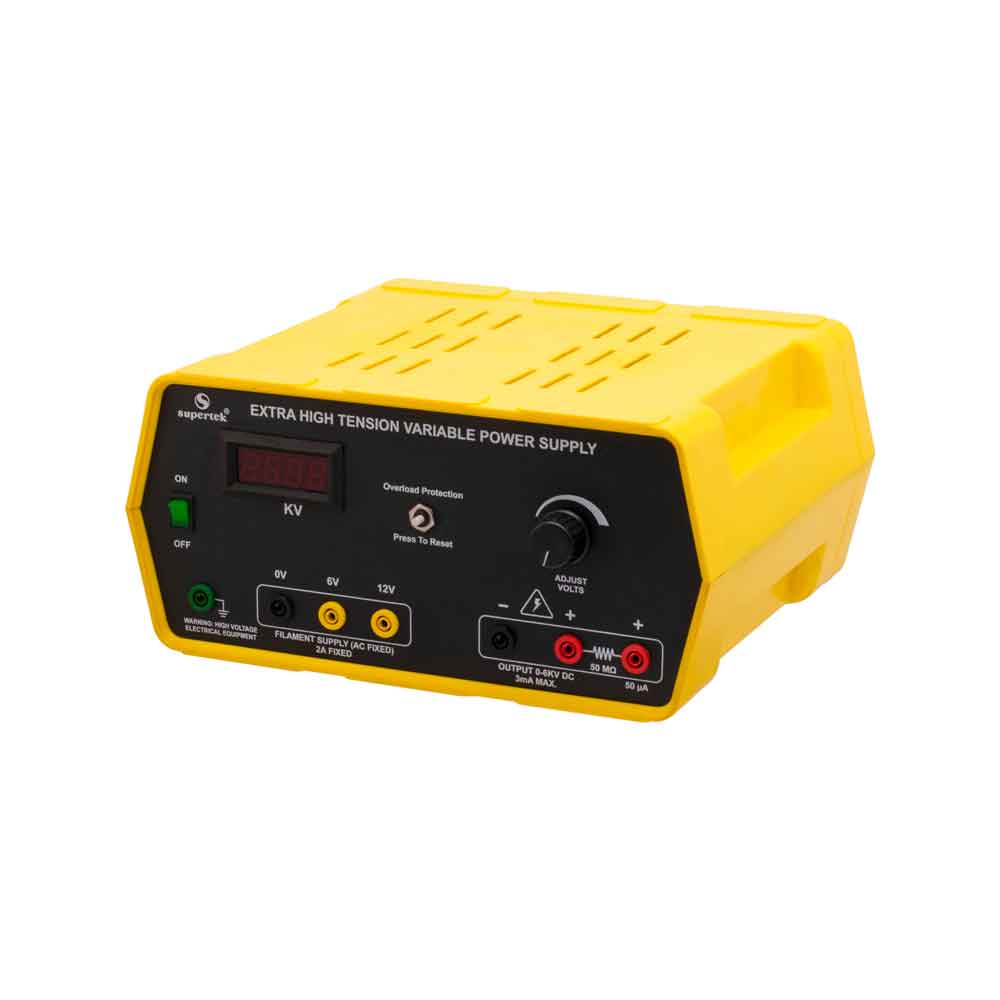

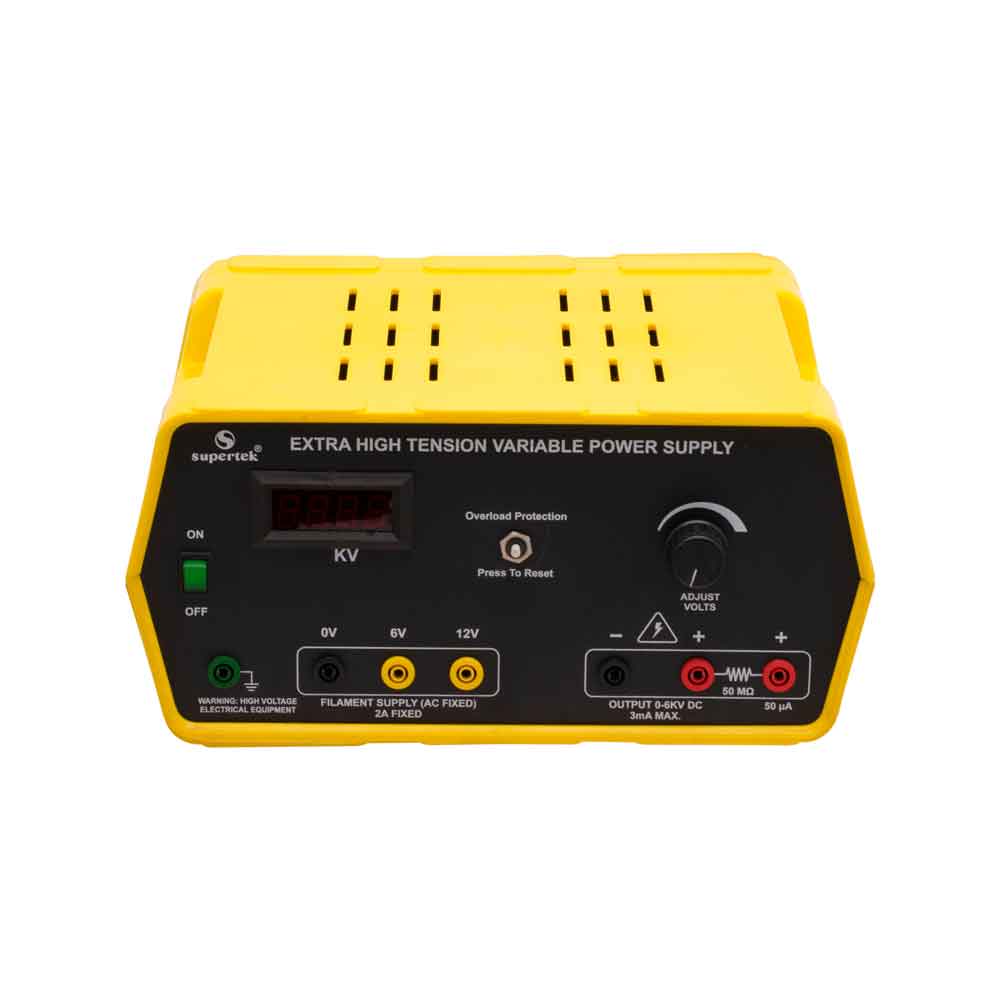

A floating, high voltage power source useful for supplying charge for quantitative electrostatic experiments, gas discharge tubes / spectrum tubes. Continuously variable output up to 6 KV DC. 6V/2A AC or 12V/2A AC filament heating supply, insulated for EHT Voltages. Current limited output: 0-6 KV DC, 50μA with 50MΩ resistor is also provided in this power supply. A rotary control knob provided on the front panel to adjusts the EHT output. Non-hazardous maximum load capacity of 3mA (short circuit current). A digital/analog meter is provided on the front panel to set the required voltage. All outputs via clearly marked 4mm shielded sockets.Both input and output fuse protected. Plastic Box with Indicator type ON/OFF switch. Supplied complete with detachable mains lead.



PH62053

Product # Quantity Add To Enquiry
PH62053

A floating, high voltage power source useful for supplying charge for quantitative electrostatic experiments, gas discharge tubes / spectrum tubes. Continuously variable output up to 6 KV DC. 6V/2A AC or 12V/2A AC filament heating supply, insulated for EHT Voltages. Current limited output: 0-6 KV DC, 50μA with 50MΩ resistor is also provided in this power supply. A rotary control knob provided on the front panel to adjusts the EHT output. Non-hazardous maximum load capacity of 3mA (short circuit current). A digital/analog meter is provided on the front panel to set the required voltage. All outputs via clearly marked 4mm shielded sockets.Both input and output fuse protected. Plastic Box with Indicator type ON/OFF switch. Supplied complete with detachable mains lead.
Please mention ‘A’ for analog and ‘D’ for digital meter at the end of part no. to specify the display required.
