A.C. Ammeter, Moving Coil
Availability:
In Stock
Permanent magnet type, with current transformer, any single range, 0-1, 3, 5, 10 Amps. The ranges covered are 0 – 1 Volt to 0 – 600 Volt.
For D.C. use only, with a permanent magnet, spring-controlled movement, jeweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic/acrylic stand with color-coded terminals.
PH63030
| Cat. No. | Model | Description | Quantity | |
|---|---|---|---|---|

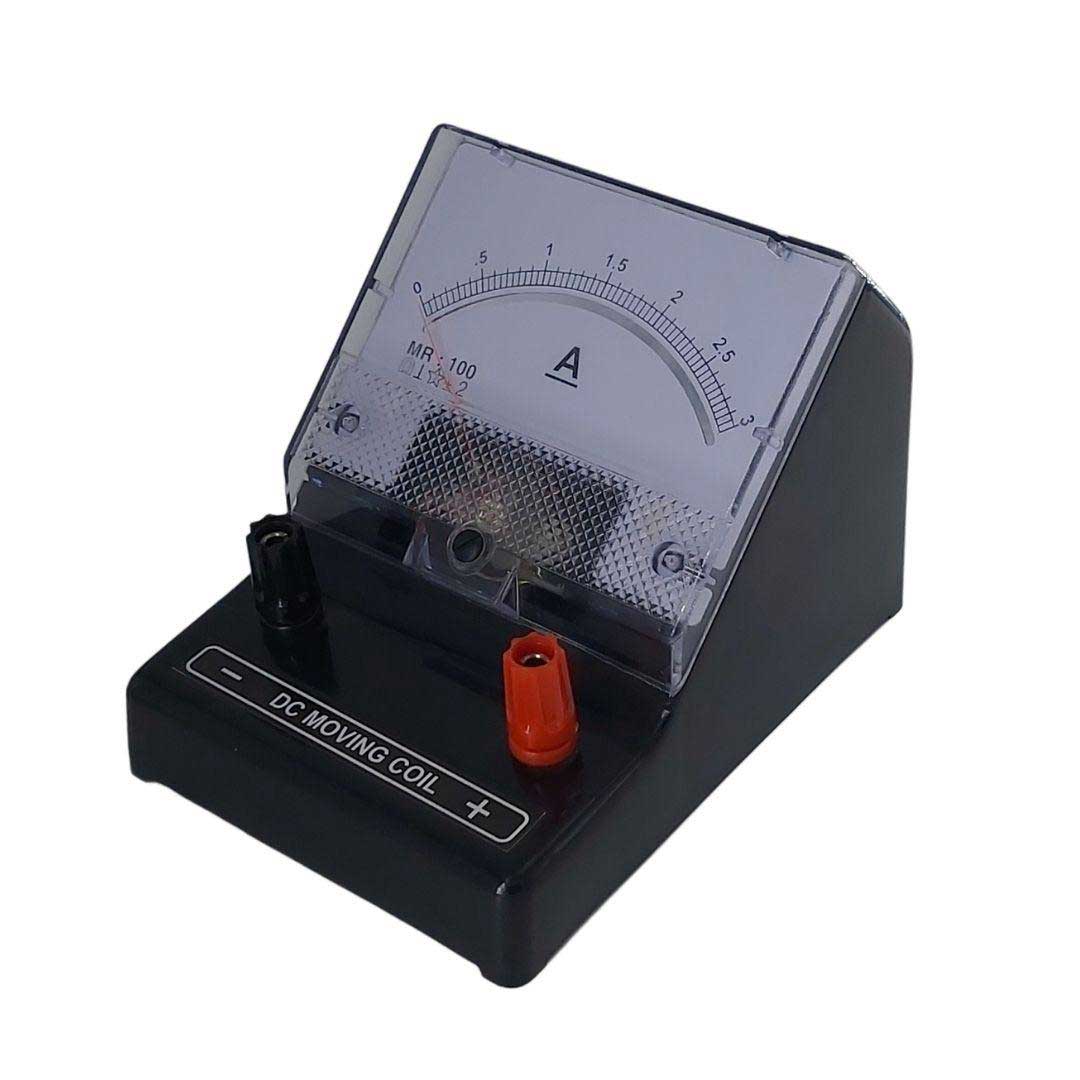

| PH63030 | MR-100 | Scale Length approx. 85 mm with anti-parallax mirror scale, dial size 80 x 100 mm with color-coded terminals. Overall size approx. 100 x 100 x 140 mm. | ||

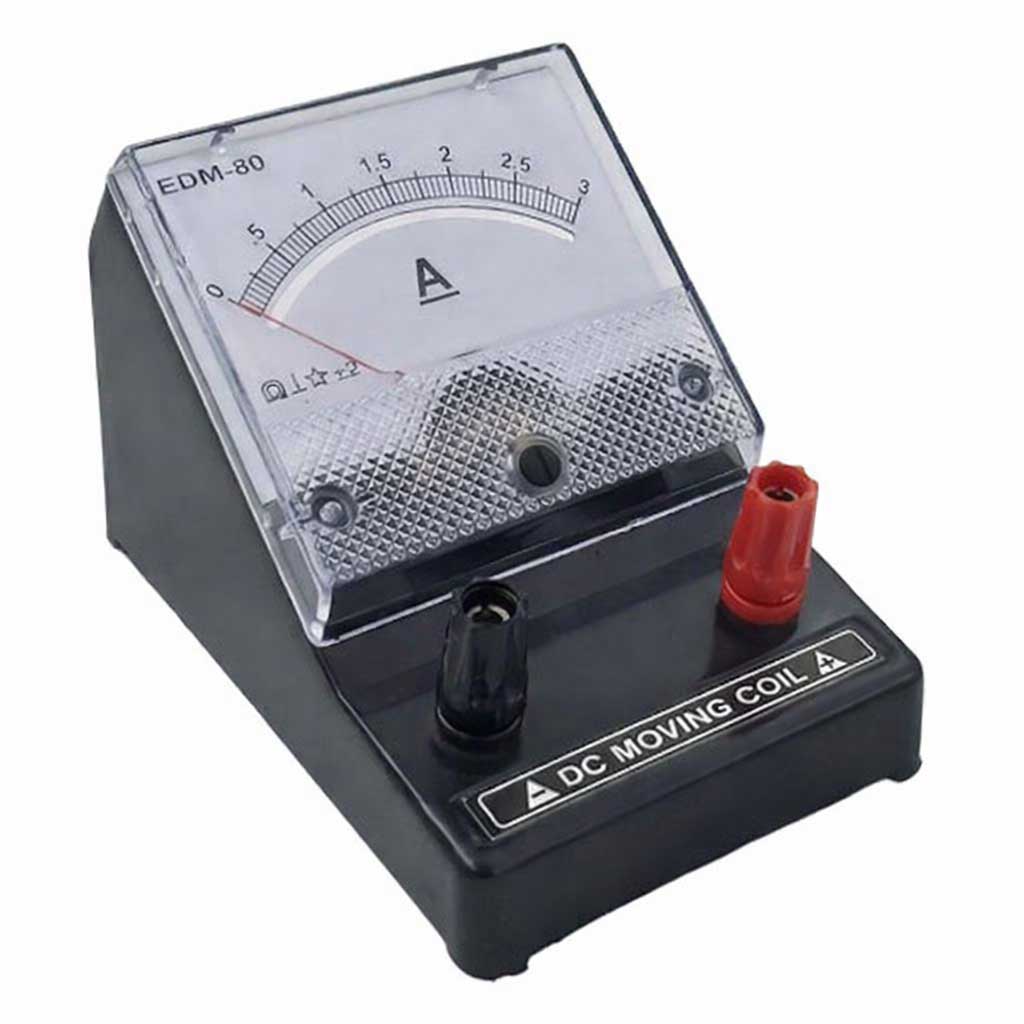

| PH63030 | EDM-80 | Scale Length approx. 60 mm with anti-parallax mirror scale, dial size 72 x 72 mm with color-coded terminals. Overall size approx. 90 x 110 x 125 mm. Accuracy: +2% FSD |
