Fundamentals of Electronics Kit
This kit introduces students to Ohm’s Law, resistors, capacitors, semiconductors and transistors. This kit includes a breadboard on base, LEDs (Red and Green), capacitors, resistors, switch, buzzer, transistors (NPN and PNP), diode, photoresistor, connecting wires, battery and instruction manual.
- To Explain Basic Concept of Electronics.
- High-Quality Solder Less Breadboard.
- Easy to Build and Learn.
- Symbolic Representation of Components.
- Color Coding Chart to Read the Resistor Values.
PH92080 -
Electronics
Transistor Characteristics Apparatus
This instrument is designed to study the input and output characteristics of common emitter and common base PNP & NPN Transistors. The instrument comprises two DC-regulated power supplies 0 – 10 V DC (150 mA) and 0 – 1 V DC (150 mA). Four round meters for voltage and current measurement. Connections of supplies and transistors are brought out at 4mm Sockets. 4mm stackable lead and instruction manual are also provided with this instrument.
PH92110 -
Electronics
FET Characteristics Apparatus
This instrument is designed to study the input and output characteristics of FET. Two DC-regulated power supplies 0 – 5 V DC (150 mA), 0 -15 V DC (150 mA), two round meters for voltage & one current meter are provided in this instrument. FET is mounted behind the panel. Connections of supplies, meters & FET are brought out at 4mm sockets. 4mm stackable lead and instruction manual are also provided with the instrument.
PH92140 -
Electronics
Semiconductor Diode/PN Junction Diode Characteristics Apparatus
This instrument is designed to study the forward and reverse characteristics of the PN Junction Diode. The instrument comprises two DC Regulated Power Supplies 0 – 3 V DC (150 mA) and 0 – 30 V DC (150 mA). Two dual-range round meters for voltage and current measurement are provided on the front panel. Connections of supplies, meters, and PN Junction diode are brought out at 4mm sockets. 4mm stackable lead and instruction manual are also provided with the instrument.
PH92150 -
Electronics
Zener Diode Characteristics Apparatus
This instrument is designed to study forward and reverse, voltage vs current characteristics of zener diode. A DC-regulated power supply of 0 – 15 V DC (150 mA) and two round meters for voltage and current measurement are provided in this instrument. Three different value zener diodes were mounted behind the panel. Connections of supplies, meters, and zener diodes are brought out at 4mm sockets. 4mm stackable lead and instruction manual are also provided with the instrument.
PH92160 -
Electronics

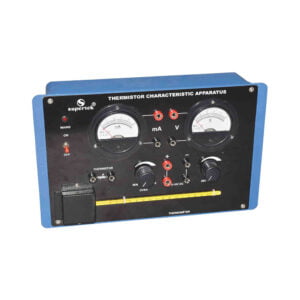

Thermistor Characteristics Apparatus
This instrument is designed to plot the negative resistance co-efficient characteristics of a thermistor. Instrument comprises of variable DC Regulated Power Supply 0 – 10 V DC (150mA). Two digital meters for voltage and current measurement. One thermistor is kept in Oven. Connections of supplies, meters, and thermistors are brought out at 4 mm Sockets. 4mm stackable lead and instruction manual are also provided with the instrument.
PH92168 -
Electronics
LCR Impedance Apparatus
This instrument is designed to calculate the AC power factor of an LCR circuit when connected in series. Instrument comprises of variable AC Power Supply 0 – 15 V AC. Two AC moving coil meters one for voltage and current measurement are provided on the front panel. 2 Resistance, 2 Capacitors, and 1 Inductance are inside the panel and connections are brought out at 4mm sockets. 4mm stackable lead and instruction manual are also provided with the instrument.
PH92172
