Ammeter, Moving Coil
For D. C. measurements, any single range, 0-1, 1.5, 3, 5, 10 Amp. The ranges covered are 0 – 1 Amp to 0 – 10 Amp, with an internal shunt.
For D. C. use only, with a permanent magnet, spring-controlled movement, jeweled bearings, hard polished pivots, and knife edge pointer. Each meter is mounted on a plastic/acrylic stand with color-coded terminals.
|PH63005||MR-100||Scale Length approx. 85 mm with anti-parallax mirror scale, dial size 80 x 100 mm with color-coded terminals. Overall size approx. 100 x 100 x 140 mm.|

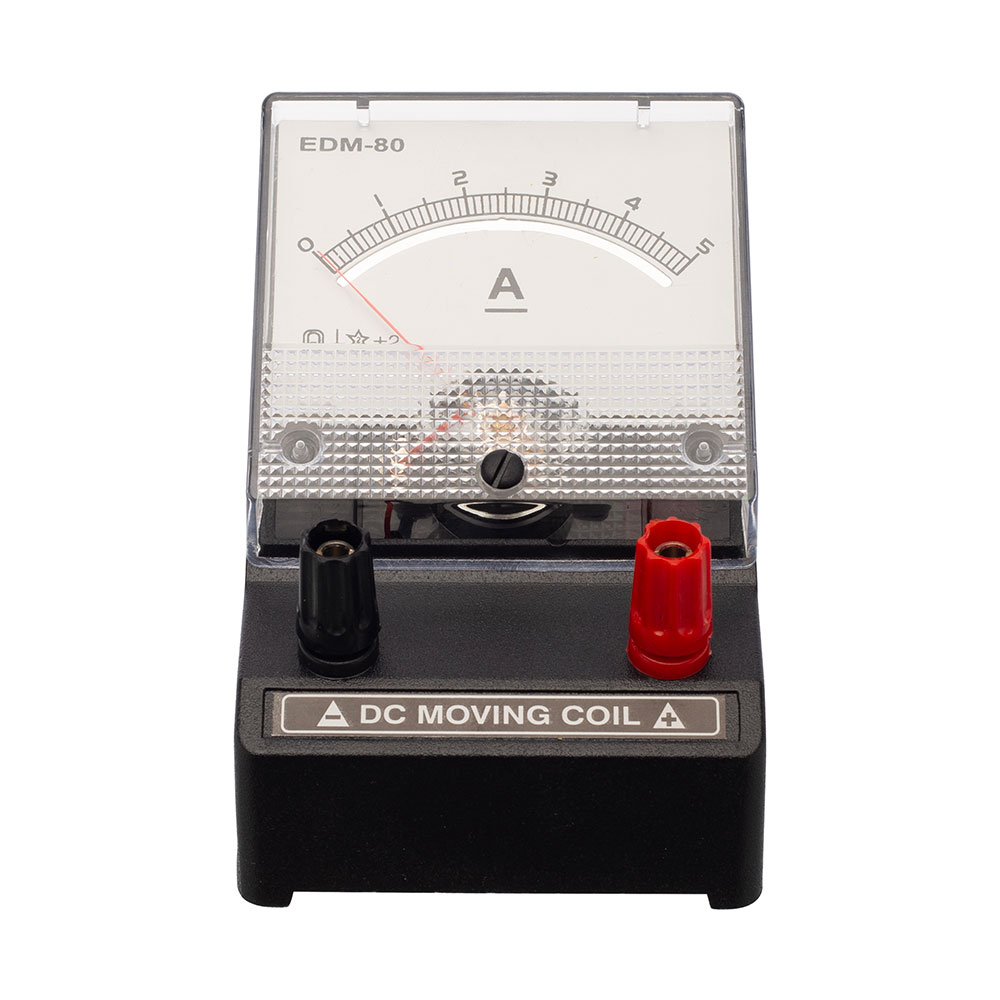

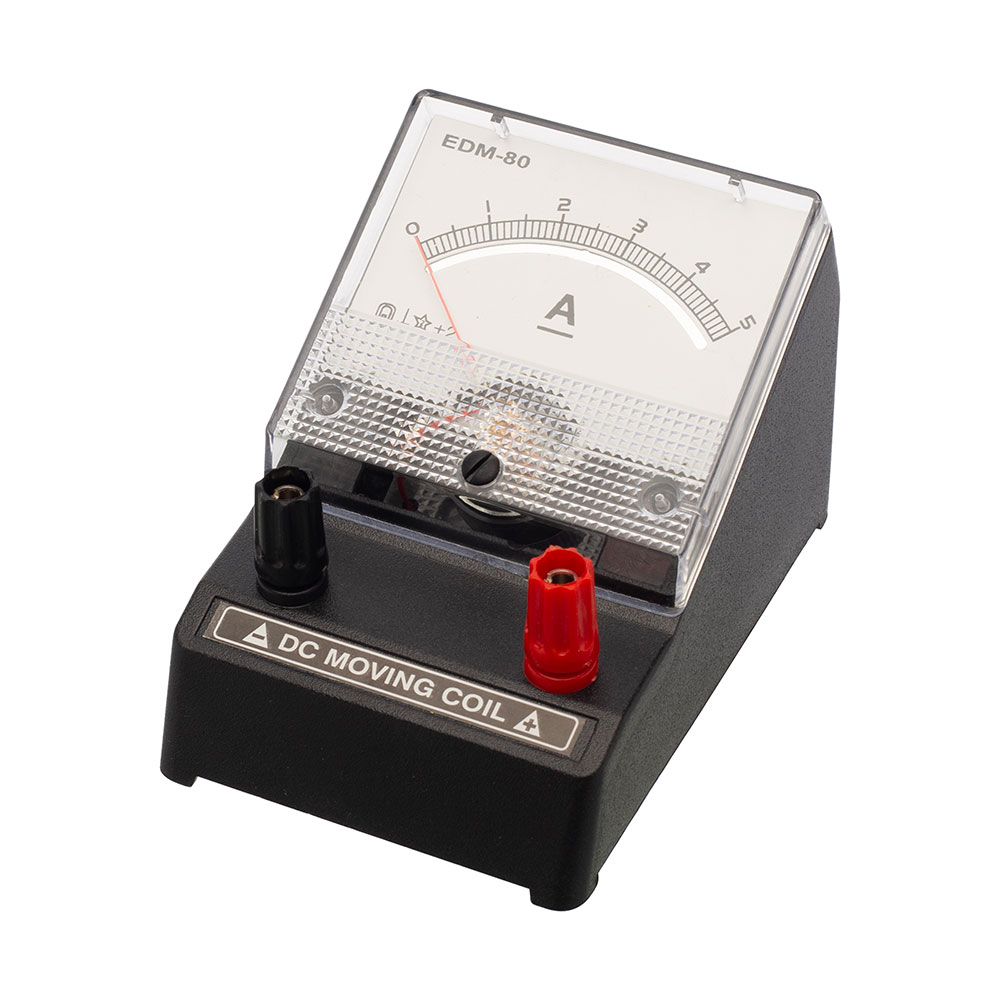

|PH63005||EDM-80||Scale Length approx. 60 mm with anti-parallax mirror scale, dial size 72 x 72 mm with color-coded terminals. Overall size approx. 90 x 110 x 125 mm. Accuracy: +2% FSD|
