Analog Multimeter
This pocket Multimeter is a universally usable multi-function instrument. The instrument has been designed in accordance with the most up-to-date safety regulations and ensures safe, reliable measurement. It is a useful aid, for all standard measurements, to the electrician on site, in industry, or for hobby electronics. Analogue Display DC and AC voltage measurements up to 1000V DC current measurement up to 250mA. Resistance measurement up to 2MΩ.
Operating temperature: 0-40°C, max 75%RH.
Display: Analogue display Meter.
Battery: 1.5V battery.
Function Range Accuracy
DCV 0 – 2.5/10/50/1000V ± 5%.
ACV 0 – 10/50/250/1000V ± 5%.
DCA 0 – 10/250mA ± 5%.
RESISTANCE 0-20kΩ/2MΩ (R x 10 / Rx 1k) ± 5%.
BAT TEST 1.5V (250mA) / 9V (10mA) ± 10% (Middle of GOOD line).
Resistance of meter DC 10kΩ/V, AC 4.5kΩ/V.PH64520 -
Electrical Accessories

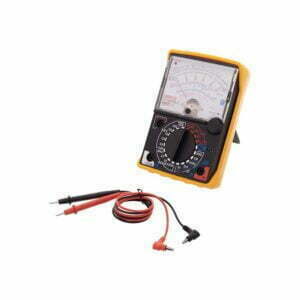

Analogue Multimeter (8 Function 19-Range)
Product Features:
- AC/DCV, DCA, Resistance, Diode Check, Continuity, dB & Transistor leak current.
- 20 kOhm/VDC sensitivity.
- Mirrored scale.
- 1-Year Warranty.
Product Description:
YX-360TRE-B is an analog multimeter, you can use it to measure AC/DC voltage, DC current, resistance, diode check, continuity, and transistor leak current, for DC current, it can measure as low as 10 micro amps and up to 250 mA, which is hard to do with a digital multimeter.
Specifications:
- DCV: 0 – 0.1V ±1% 0.25V/2.5/10V/50V/250/1000 ±3%.
- ACV :0-10/50/250/1000V±4%*DCA:0- 50μA/2.5mA/25mA/250mA±3%.
- Resistance: 0 – 2K/20K/200K/2M/20Mohm ±3% *dB: -10 dB – 22 dB.
- Diode check (including LED).
- Continuity: Both Buzzer & flash.
- Transistor leak current.
Features:
- All range fused.
- Compact size.
- Tilt back-stand.
- Continuity flash.
0-ohm adjustment Accessories:
- Test leads (attached).
- AA battery X 2 (installed).
- User Manual.
Brand Name: Sunwa
Model Number: YX-360TRE-B
Power Source Type: Battery-powered.
PH64522 -
-
Electrical Accessories
Fully Insulated Crocodile Clip
The metal part is Brass, Tin plated. It has a socket for a 4 mm banana plug at the end and a screw for the connection of wires. It is well-designed and can resist up to 20 amps. Insulation is Nylon. Red, Black, Yellow, Blue, and Green colors are available. Other colors are also available in case of quantity.
PH90120 -
Electrical Accessories
4 MM Moulded Patch Cord (Heavy Duty)
Integrally moulded 4 mm to 4 mm spring loaded patch cord with 4 mm socket at the rear end for connection of other 4 mm plug. Red, Black, Yellow, Blue, and Green colors are available. Any length is available. 60/42 wire with 4 mm O.D. is used.
PH90128/1 -
Electrical Accessories
2 MM Moulded Patch Cord (Heavy Duty)
2mm to 2mm spring loaded patch cord with 2mm socket at rear end for connection of other 2 mm plug. It is lock type plug and only plug is also available. Red, Black, Yellow, Blue and Green colors are available. Any length is available. 23/40 wire with 3mm O.D. can be used. Plug insulation is nylon.
PH90128/5
