Analogue Multimeter (8 Function 19-Range)

Product Features:

• AC/DCV, DCA, Resistance, Diode Check, Continuity, dB & Transistor leak current.
• 20 kOhm/VDC sensitivity.
• Mirrored scale.
• 1-Year Warranty.

Product Description:

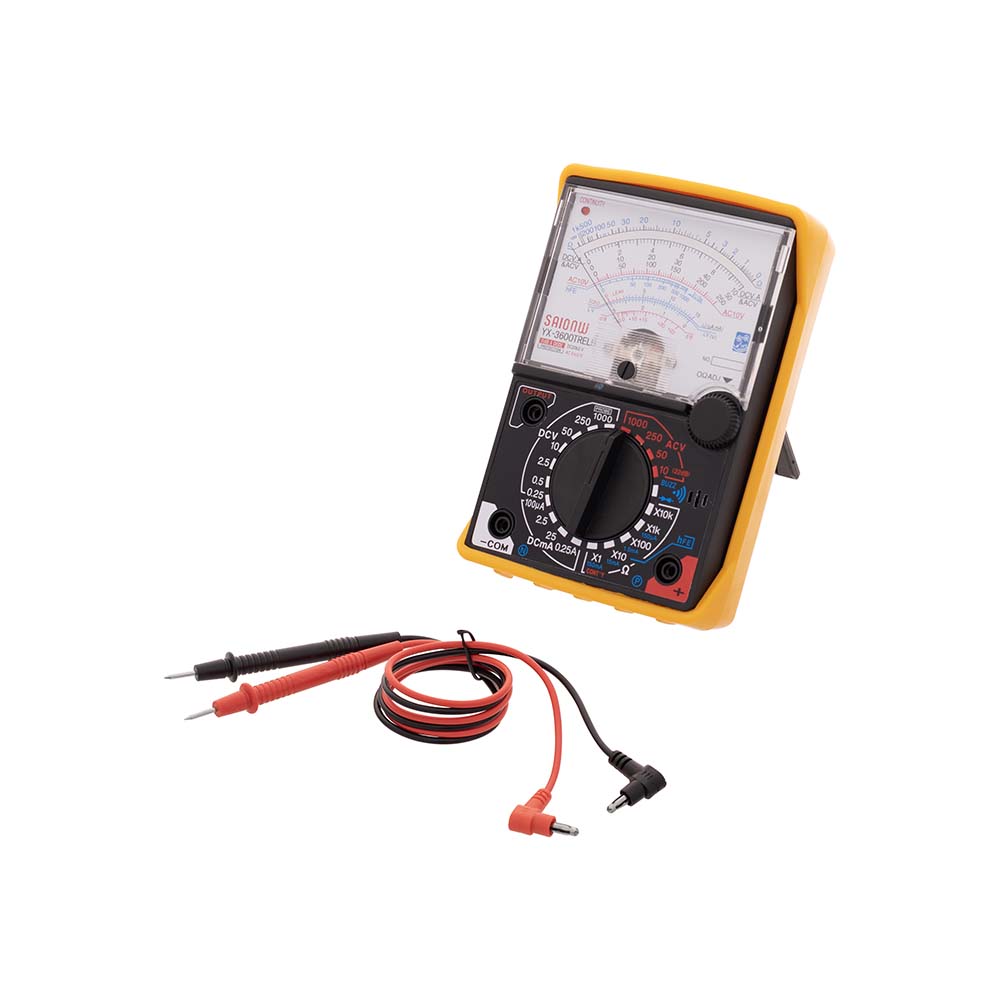

YX-360TRE-B is an analog multimeter, you can use it to measure AC/DC voltage, DC current, resistance, diode check, continuity, and transistor leak current, for DC current, it can measure as low as 10 micro amps and up to 250 mA, which is hard to do with a digital multimeter.
Specifications:

• DCV: 0 – 0.1V ±1% 0.25V/2.5/10V/50V/250/1000 ±3%.
• ACV :0-10/50/250/1000V±4%*DCA:0- 50μA/2.5mA/25mA/250mA±3%.
• Resistance: 0 – 2K/20K/200K/2M/20Mohm ±3% *dB: -10 dB – 22 dB.
• Diode check (including LED).
• Continuity: Both Buzzer & flash.
• Transistor leak current.

Features:

• All range fused.
• Compact size.
• Tilt back-stand.
• Continuity flash.

0-ohm adjustment Accessories:

• Test leads (attached).
• AA battery X 2 (installed).
• User Manual.
  Brand Name: Sunwa
  Model Number: YX-360TRE-B
  Power Source Type: Battery-powered.
