Electrical Accessories

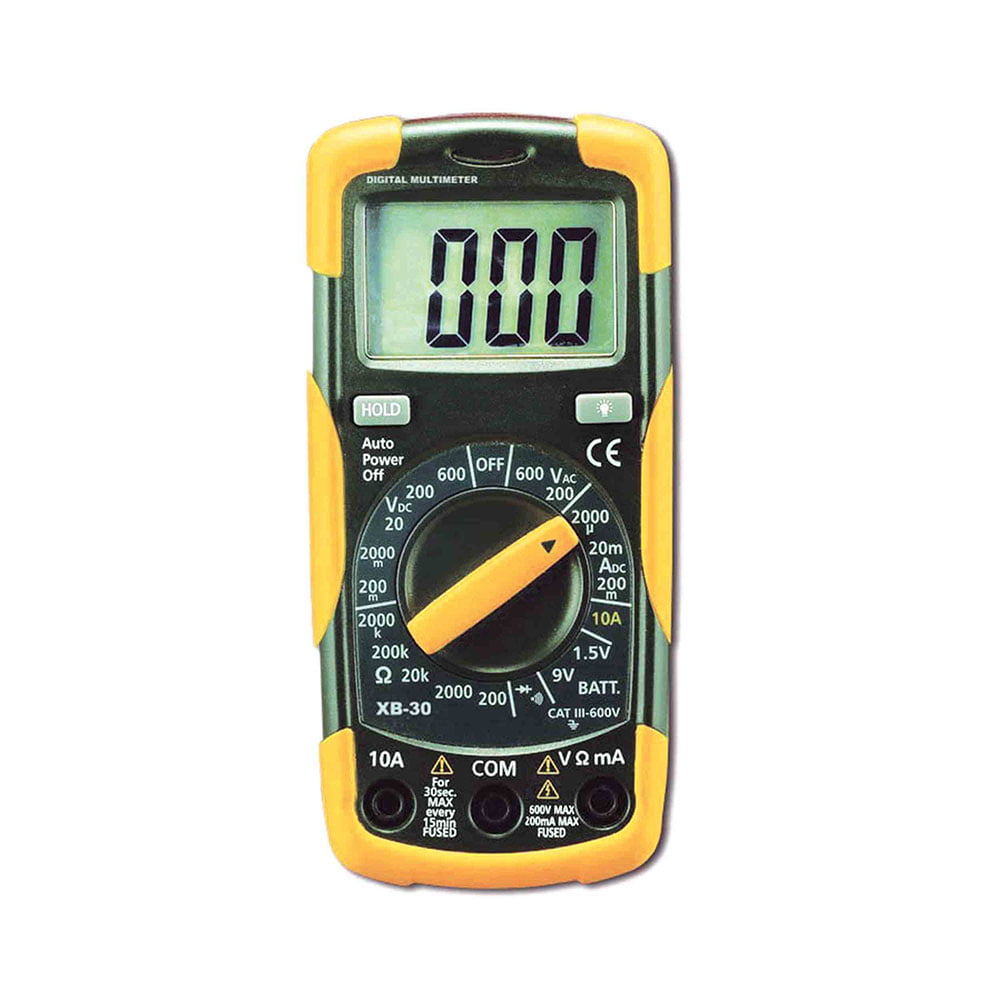

Digital Multimeter
Availability:
In Stock
Display 3 ½ digit, 2000 count Backlit LCD, 1.1″ digits.
Data Hold To Freeze the displayed data.
Over range indication “1” is displayed
Polarity Automatic (no indication for positive polarity); Minus (-) sign for negative polarity.
Measurement Rate 2 times per second, nominal.
Low Battery Indication “BAT” is displayed. if battery voltage drops below operating voltage Battery one 9-volt battery.
Fuses mA, μA ranges; 0.2A/250V Fast blow A range; 1A/250V fast blow.
Operating Temperature 32°F to 122°F (0°C to 50°C)
Includes Local level, Appliance, Portable equipment etc.
Technical Specification:
| Function | Range | Resolution | Accuracy |
| DV Voltage (V DC) |
200 mV 2000 mV 20V |
0.1 mV 1 mV 0.01V |
± (0.5% reading + 2 ±(0.8% reading + 2 digits) |
| AV Voltage (V AC) |
600V 200V 600 2000µA 20 mA |
1V 0.1V 1V 1µA 10µA |
± (0.2% reading + 10 digits 50/60 Hz) ±(1.0% reading + 2 digits) |
| DC Current (A DC) |
200 mA 10A |
100µA 10 mA |
± (1.2% reading + 2 digits) ± (2.0% reading + 2 digits) |
| Resistance | 200Ω 2000Ω 20KΩ 200 KΩ 2000 KΩ |
0.1Ω 1Ω 0.01KΩ 0.1KΩ 1 KΩ |
± (0.8% reading + 2 digits) ± (1.0% reading + 2digits) |
| Battery Test | 9V 1.5V |
10 mV 1.5 mV |
± (1.0% reading + 2digits) |
PH64510
In Stock
