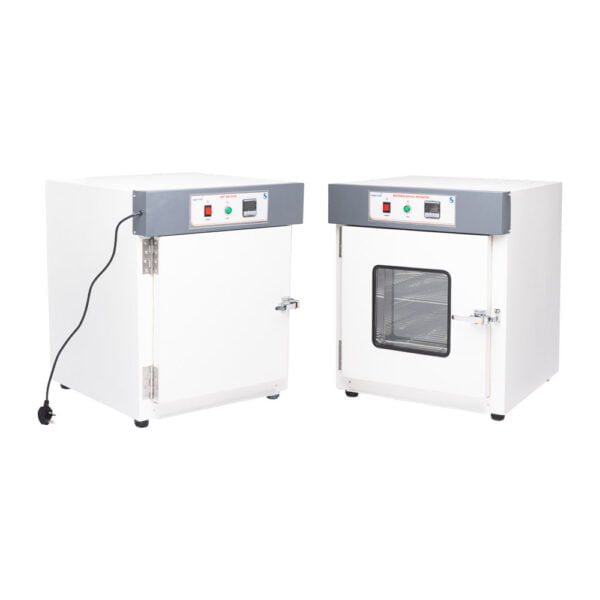

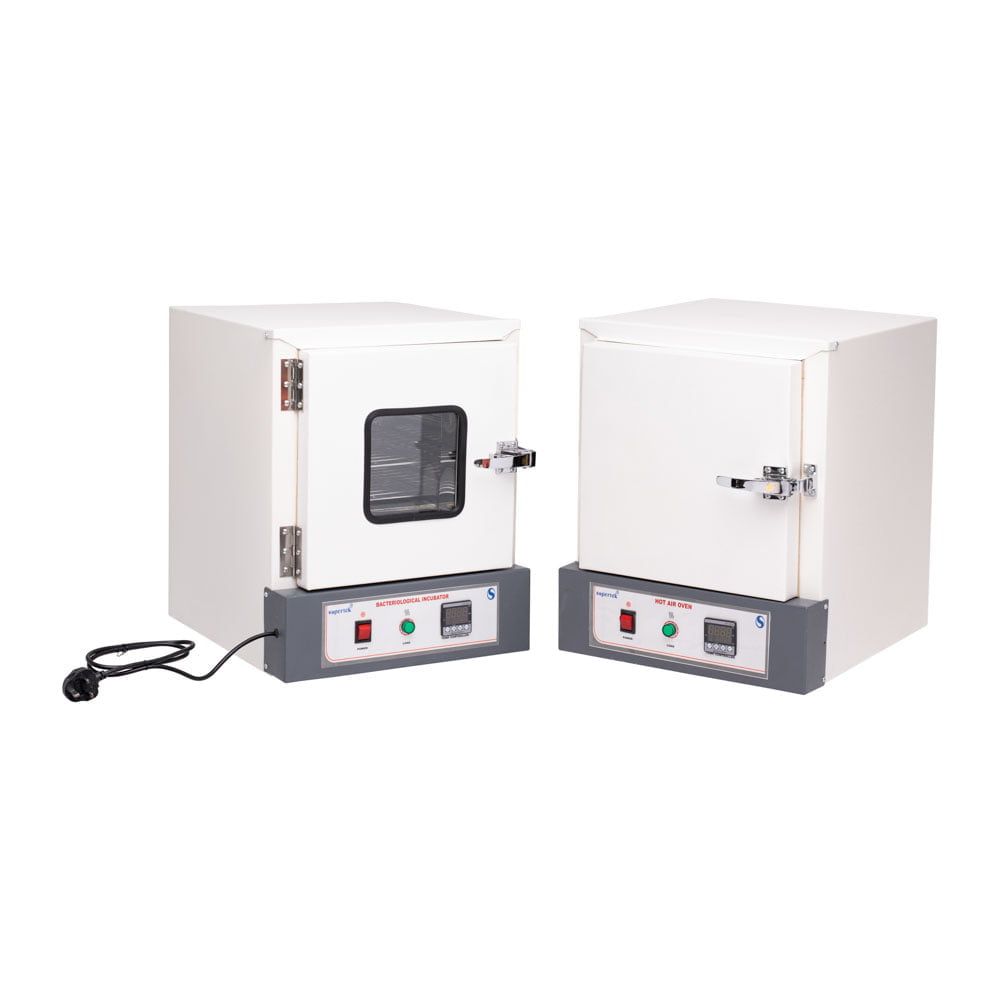

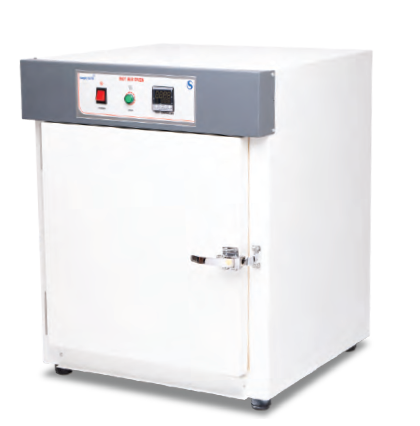

Oven, Universal, Digital
Laboratory oven is used for high-volume thermal convection applications. The inner chamber is performed for natural convention air flow which assures constant temperature in the system. Temperature up to 250° C. Standard double wall fabrication. Inner chamber made out of highly polished stainless steel sheet and outer made out of mild steel powder-coated paint with mat-finished/Stainless steel finished in white stoving enamel. The gap between the two walls is filled with high-grade glass wool.
- Programmable digital temperature indication cum controller.
- Timer with led indicator.
- load indicator.
- Illuminated on/off switch.
- High-precision sensor.
- Accuracy ± 3° C.
- Adjustable perforated shelves made of stainless steel.
- Air circulating fan in selected models.
- Superior insulation that improves chamber stability and reduces heat loss.
- High-quality eccentric hinge ensures maximum gasket compression for stable chamber temperature.
*Indicates the models with in-built air circulating fan.
Available Options
Cat. No. | Type | Size, mm | No. of Shelves | Capacity, Ltrs | Quantity | |
---|---|---|---|---|---|---|
CH11811A/1 | outer MS chamber | 300 x 300 x 300 | 2 | 30 | ||
CH11811A/2 | outer MS chamber | 300 x 300 x 350 | 2 | 40 | ||
CH11811A/3 | outer MS chamber | 300 x 350 x 350 | 2 | 45 | ||
CH11811A/4F* | outer MS chamber | 450 x 450 x 450 | 2 | 95 | ||
CH11811A/5F* | outer MS chamber | 450 x 450 x 600 | 2 | 125 | ||
CH11811A/6F* | outer MS chamber | 600 x 600 x 600 | 2 | 215 | ||
CH11811A/7F* | outer MS chamber | 600 x 900 x 450 | 3 | 240 | ||
CH11811A/8F* | outer MS chamber | 600 x 900 x 600 | 3 | 325 | ||
CH11811B/1 | outer SS chamber | 300 x 300 x 300 | 2 | 30 | ||
CH11811B/2 | outer SS chamber | 300 x 300 x 350 | 2 | 40 | ||
CH11811B/3 | outer SS chamber | 300 x 350 x 350 | 2 | 45 | ||
CH11811B/4F* | outer SS chamber | 450 x 450 x 450 | 2 | 95 | ||
CH11811B/5F* | outer SS chamber | 450 x 450 x 600 | 2 | 125 | ||
CH11811B/6F* | outer SS chamber | 600 x 600 x 600 | 2 | 215 | ||
CH11811B/7F* | outer SS chamber | 600 x 900 x 450 | 3 | 240 | ||
CH11811B/8F* | outer SS chamber | 600 x 900 x 600 | 3 | 325 |
