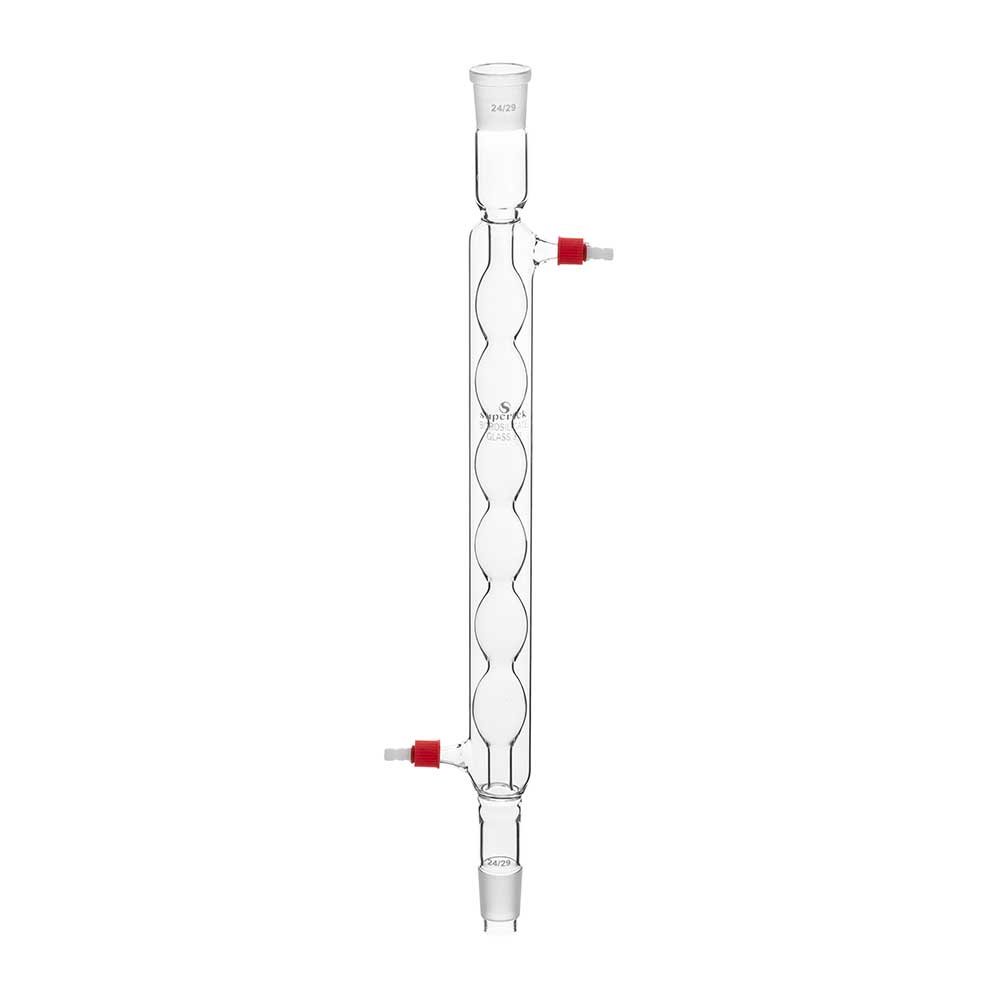

Condenser, Allihn (Bulb Condenser)


  • Conformity to DIN 12581
  • Better surface area than the liebig condenser , Series of bulbs provide higher-cooling capacity which is ideal for reflux applications
  • Designed with standard joints providing universal fitting
  • Available with Glas & Plastic hose connector
  • Detachable plastic screw thread connectors provide easy and safe attachment of flexible tubing
  • Product code is 16.136

16.136

Product # Connector Effective length mm Socket size Cone size Pack sizeQuantityAdd To Enquiry
16.136.0005 Glass 200 --- --- 1
16.136.0010 Glass 300 --- --- 1
16.136.0015 Glass 400 --- --- 1
16.136.0020 Glass 500 --- --- 1
16.136.0025 Glass 200 --- 19/26 1
16.136.0030 Glass 200 --- 24/29 1
16.136.0035 Glass 200 --- 29/32 1
16.136.0040 Glass 200 --- 34/35 1
16.136.0045 Glass 200 --- 40/38 1
16.136.0050 Glass 200 --- 50/42 1
16.136.0055 Glass 250 --- 50/42 1
16.136.0060 Glass 200 19/26 19/26 1
16.136.0065 Glass 200 24/29 24/29 1
16.136.0070 Glass 300 19/26 19/26 1
16.136.0075 Glass 300 24/29 24/29 1
16.136.0080 Glass 400 24/29 24/29 1
16.136.0085 Glass 500 24/29 24/29 1
16.136.0090 Glass 500 34/35 34/35 1
16.136.0095 Glass 600 34/35 34/35 1
16.136.0100 Glass 750 34/35 34/35 1
16.136.5005 Screw Thread 200 --- --- 1
16.136.5010 Screw Thread 300 --- --- 1
16.136.5015 Screw Thread 400 --- --- 1
16.136.5020 Screw Thread 500 --- --- 1
16.136.5025 Screw Thread 200 --- 19/26 1
16.136.5030 Screw Thread 200 --- 24/29 1
16.136.5035 Screw Thread 200 --- 29/32 1
16.136.5040 Screw Thread 200 --- 34/35 1
16.136.5045 Screw Thread 200 --- 40/38 1
16.136.5050 Screw Thread 200 --- 50/42 1
16.136.5055 Screw Thread 250 --- 50/42 1
16.136.5060 Screw Thread 200 19/26 19/26 1
16.136.5065 Screw Thread 200 24/29 24/29 1
16.136.5070 Screw Thread 300 19/26 19/26 1
16.136.5075 Screw Thread 300 24/29 24/29 1
16.136.5080 Screw Thread 400 24/29 24/29 1
16.136.5085 Screw Thread 500 24/29 24/29 1
16.136.5090 Screw Thread 500 34/35 34/35 1
16.136.5095 Screw Thread 600 34/35 34/35 1
16.136.5100 Screw Thread 750 34/35 34/35 1
  • Conformity to DIN 12581
  • Better surface area than the liebig condenser , Series of bulbs provide higher-cooling capacity which is ideal for reflux applications
  • Designed with standard joints providing universal fitting
  • Available with Glas & Plastic hose connector
  • Detachable plastic screw thread connectors provide easy and safe attachment of flexible tubing
  • Product code is 16.136
SKU: 16.136 Category:
Connector

,

Effective Length mm

200, 300, 400, 500, 250, 600, 750

Socket Size

—, 19/26, 24/29, 34/35

Cone Size

—, 19/26, 24/29, 29/32, 34/35, 40/38, 50/42
