Condensers
-
Condensers
Condenser Liebig
- Conformity to DIN 12576.
- Elementary Design.
- Lighter wall of the inner tube facilitates effective heat transfer.
- Designed with standard joints providing universal fitting.
- Available with Glass & Plastic hose connector.
- Detachable plastic screw thread connectors provide easy and safe attachment of flexible tubing.
* represents Non DIN sizes
16.104 -
Condensers

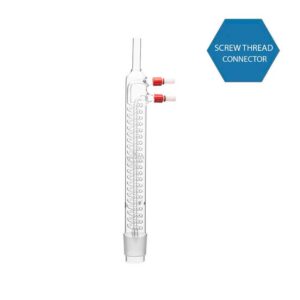

Condenser Coil Graham (Coil Distillate Type)
- The coiled Condensation tubes provide greater surface area for cooling.
- Designed with standard joints providing universal fitting.
- Available with glass & Plastic hose connector.
- Detachable plastic screw thread connectors provide easy and safe attachment of flexible tubing.
16.108 -
Condensers
Condenser Coil Graham (Jacket Distillate Type)
- The coiled Condensation tubes provide greater surface area for cooling.
- Designed with standard joints providing universal fitting.
- Available with glass & Plastic hose connector.
- Detachable plastic screw thread connectors provide easy and safe attachment of flexible tubing.
16.112 -
Condensers
Condenser Double Surface Davies
These condensers are majorly used in research laboratories. A double-surface condenser has a water jacket both on the outside and through the center of the condensing tube. It is required where the condenser liquid is very volatile. Hence for distilling ethers, alcohols, esters, aromatics, petroleum products and essential oils, these condensers are widely used.
16.124 -
Condensers
Condenser Allihn (Bulb type)
- Conformity to DIN 12581.
- Better surface area than the Liebig condenser, Series of bulbs provide higher-cooling capacity which is ideal for reflux applications
- Designed with standard joints providing universal fitting.
- Available with Glass & Plastic hose connector.
- Detachable plastic screw thread connectors provide easy and safe attachment of flexible tubing.
16.136 -
Condensers
Condenser Ether
Highly efficient coil condenser suitable for condensing very volatile liquids. Inner coil with large surface area. Outer water jacket to avoid vapour creep around the coil. Coil and jacket are highly independent and can be fed from separate water supplies for maximum efficiency.
16.144 -
Condensers
Dimroth Condenser
The Condenser Comes With Glass & Plastic Thread Condenser
- Conformity to DIN 12591.
- Similar to the coil condenser with advantage of having that both inlet and outlet pipes at the top.
- There is an internal double spiral through which the coolant travels.
- Dimroth condensers are much more effective than conventional condensers.
* represents Non DIN size
16.152 -
-
