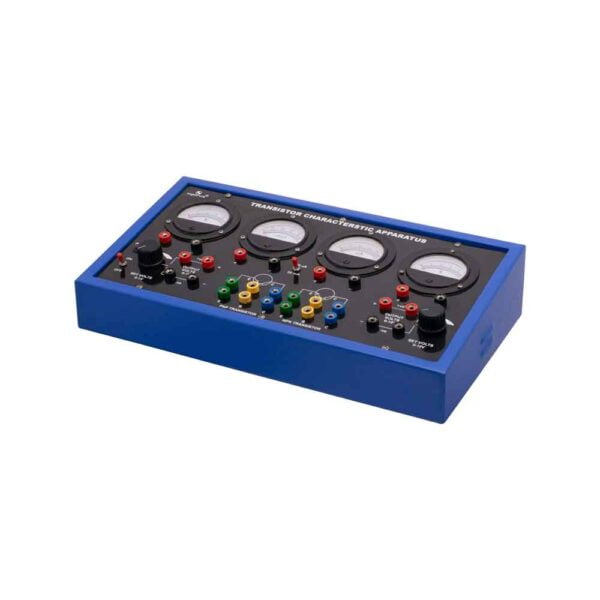

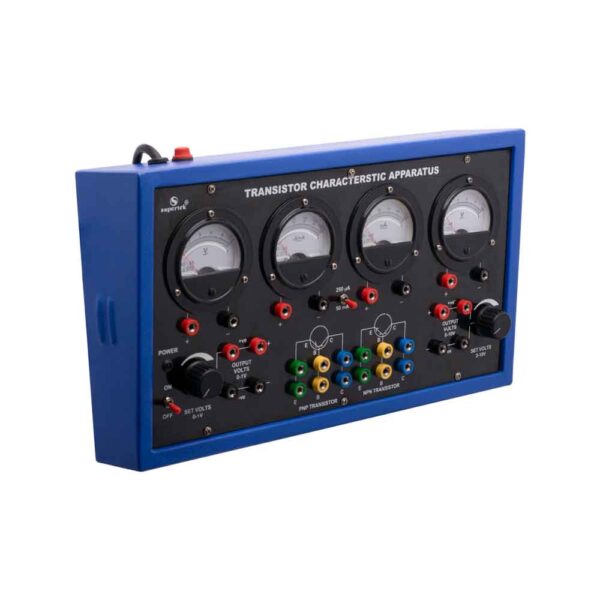

Transistor Characteristics Apparatus

This instrument is designed to study the input and output characteristics of common emitter and common base PNP & NPN Transistors. The instrument comprises two DC-regulated power supplies 0 – 10 V DC (150 mA) and 0 – 1 V DC (150 mA). Four round meters for voltage and current measurement. Connections of supplies and transistors are brought out at 4mm Sockets. 4mm stackable lead and instruction manual are also provided with this instrument.
