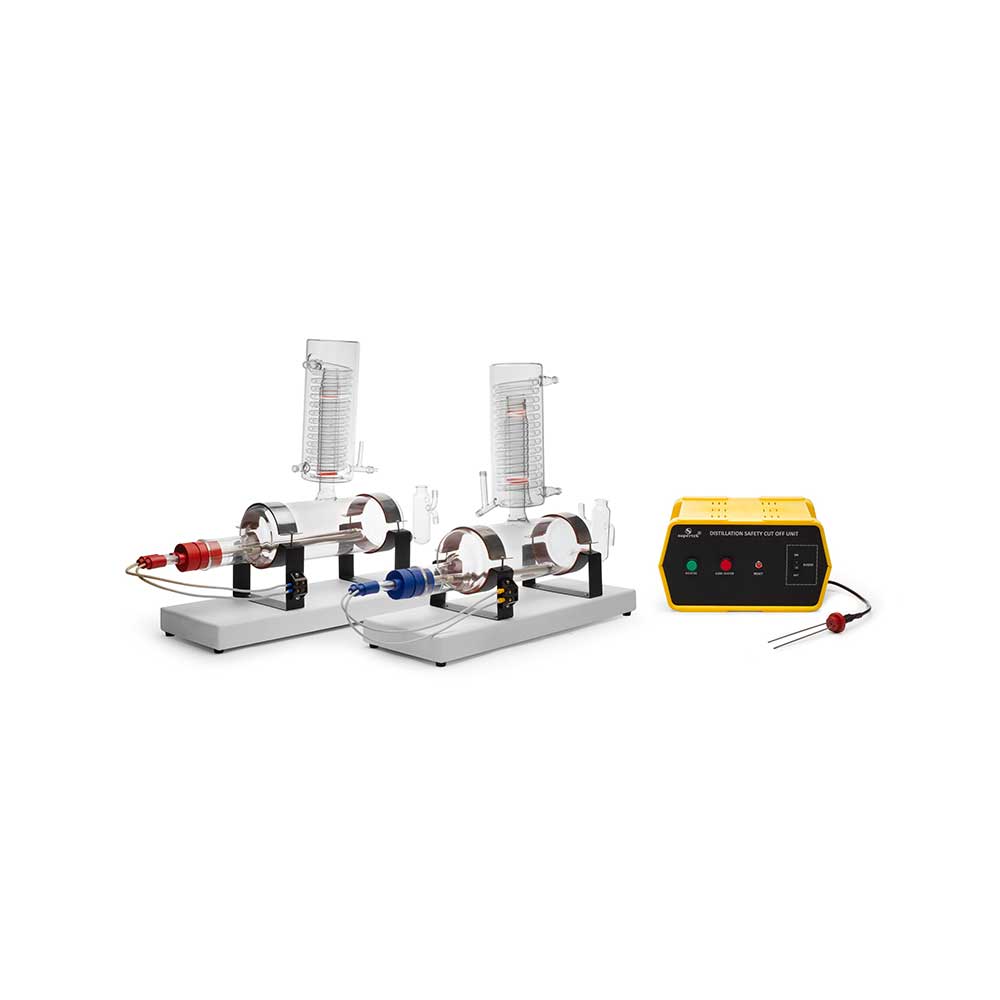

Distillation Apparatus
Water Still/Glass Distillation Unit Single
- Compact, easy to use& all parts are replaceable.
- Electrical Power: 220/240 V, 50/60Hz, Single Phase Supply.
- The stand is powder coated for rust free operation and lustrous appearance.
- Drain nozzle/Teflon Screw Cock is provided for easy cleaning and maintenance.
- The unit automatically switches off if water level in the boiler falls below heater.
- Distillate temperature is around 25 to 45°C which is ensured by an efficient condenser.
- Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.
- Replaceable Silica Heater: Boiler is fitted with a removable Silica Sheathed (Quartz) Heater and Screw Threaded connector for ease of cleaning when scaling is formed. Quartz heaters are easy to assemble and dismantle
Unique Feature

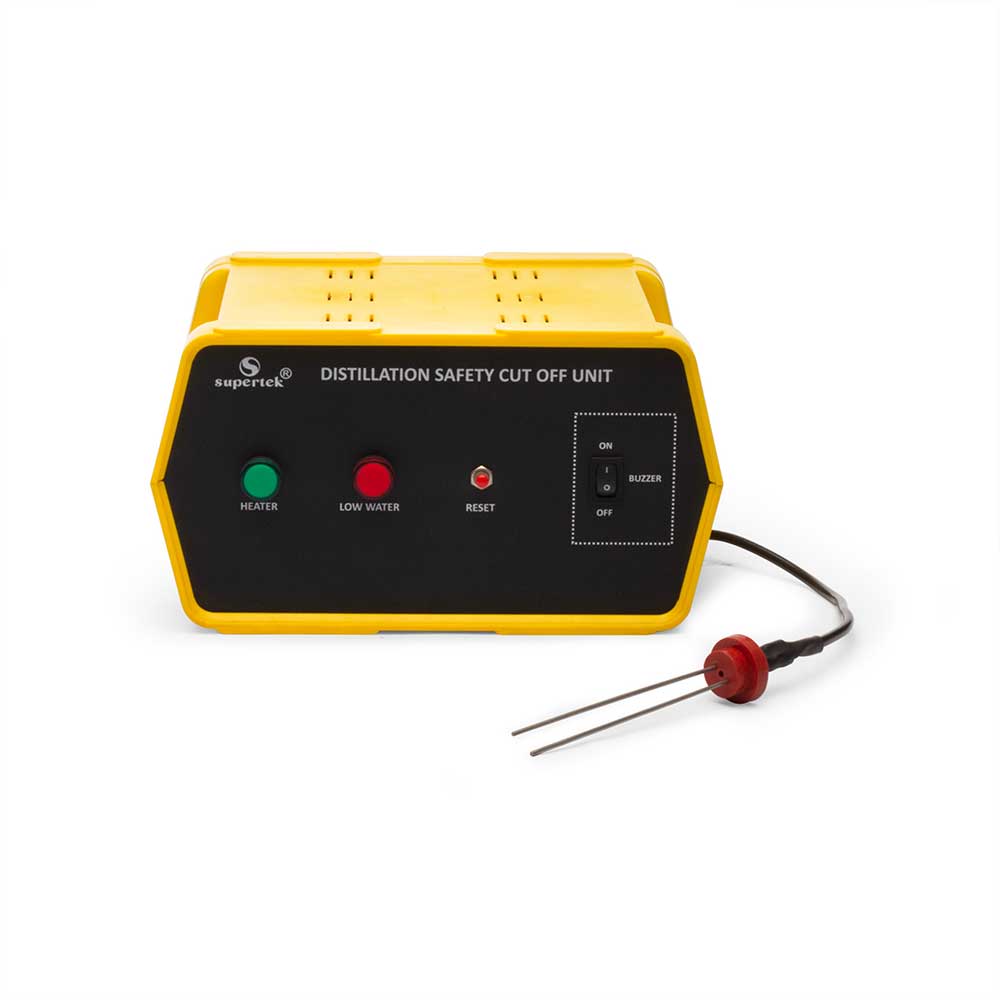

These models are fitted with in-built Safety Cut-Off Pressure Temperature Switch (PTS) to protect the glass parts in the event of water supply failure or overheating.
Conductivity 1 to 2.0 μs/cm
Distillate Quality pyrogen free.
CH14031
Available Options
| Cat. No. | Output Capacity (Approx.) | Power Rating (Total) | Cooling Water Consumption (Approx.) | Packing Dimensions W x D x H | Weight Gross | Quantity | |
|---|---|---|---|---|---|---|---|
| CH14031-20S | 2 ltr/hr | 1.5 kW | 60 ltr/hr | 64 x 45 x 44 cm | 13 kg | ||
| CH14031-40S | 4 ltr/hr | 3.0 kW | 120 ltr/hr | 66 x 62 x 44 cm | 15 kg |
