NiCad Battery Investigation

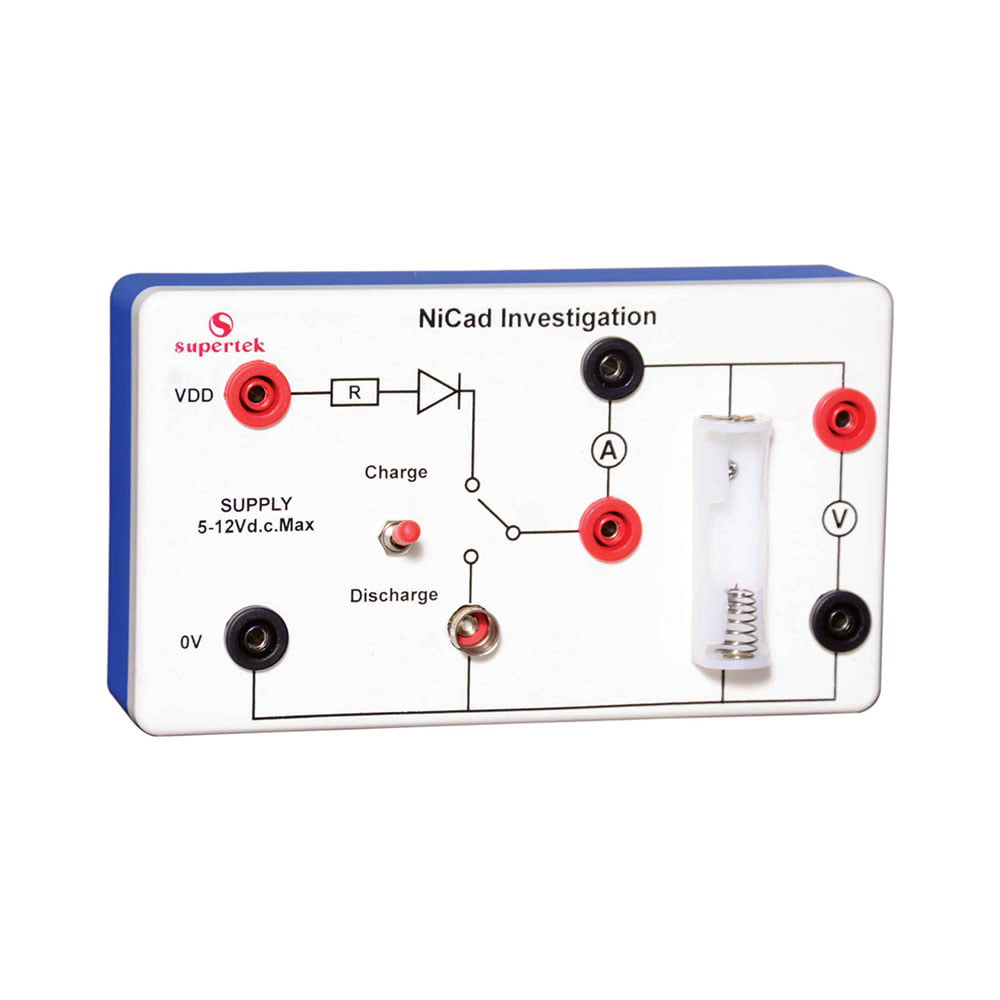

This setup is designed to investigate the charging and discharging characteristics of typical rechargeable battery. With external voltmeter and ammeter connected, you can manually measure the input and output energy by taking readings from these meters. A toggle switch is provided to select between charging and discharging. Connection are made via 4 mm plugs.

PH50632
