Half Wave/Full Wave and Bridge Rectifier Apparatus

Objective: To study the Efficiency and Ripple factor in the case of Half wave, Full wave, and Bridge rectifiers on the application of load and filters.

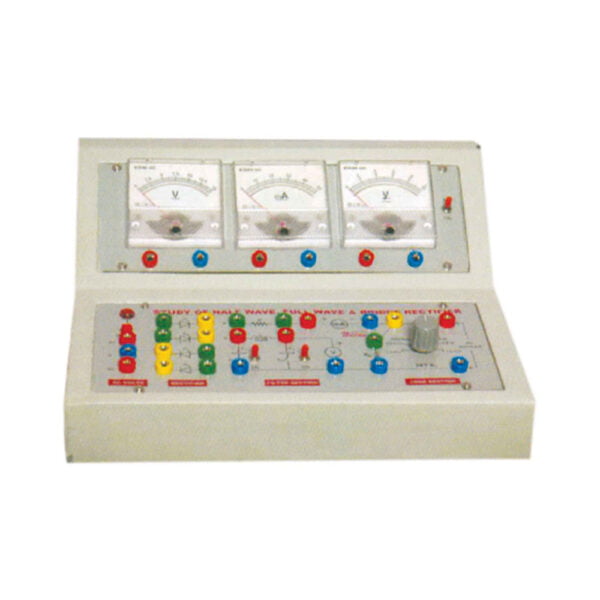

Features: The instrument comprises of AC Power Supply, 3 meters to measure Output Voltage, Output Current, and ripple factor on an electronic AC Voltmeter, 4 PN Junction Diodes, a Filter Circuit kit, load Resistances selectable using a band switch, and all important connections point at 4mm Sockets.
Optional Acc : Digital AC millivoltmeter.
