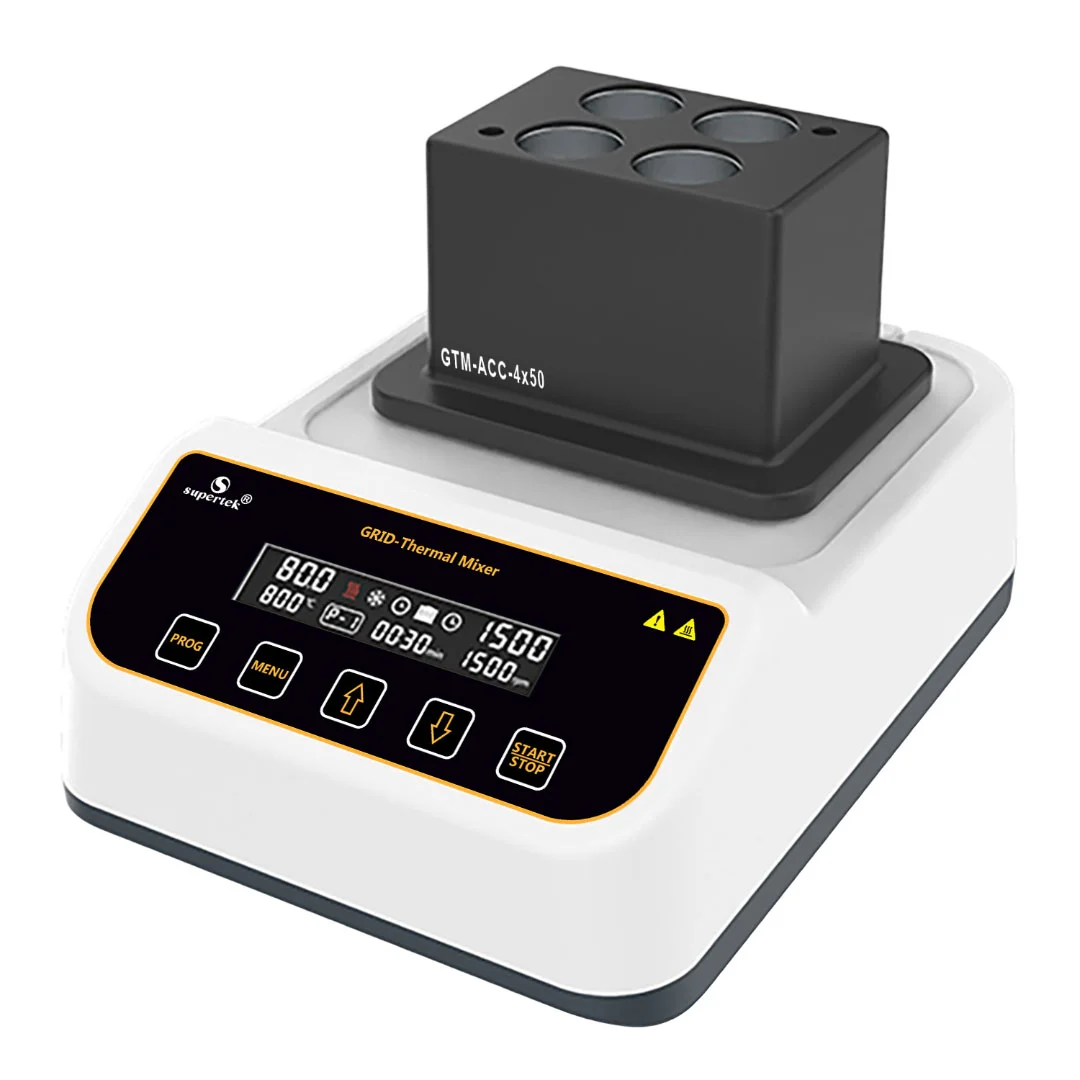

Grid Thermal Mixer

Availability:

In Stock


The Grid Thermal Mixer is designed for precise temperature control combined with uniform mixing. Equipped with dual heating and cooling functions, advanced microprocessor control,
and interchangeable blocks, it is ideal for molecular biology, biochemistry, clinical, and other life science applications.

Product Features:

  • All-in-one versatile device: Mixing, heating, and cooling
  • Microprocessor control ensures accurate temperature, speed, and timing.
  • LCD display for simultaneous display of temperature, time, and shaking speed
  • Adjustable shaking speed for thorough and uniform mixing.
  • Interchangeable blocks to accommodate different tube sizes and applications.
  • Built-in safety protection system with over-temperature alarm.
  • Compact design with quiet operation.
  • Automatic recognition of the module.
  • Optional thermal cover available for improved temperature uniformity

Technical Specifications:

  • Temperature Range: –10 °C below ambient to +100 °C
  • Temperature Accuracy: ±0.5 °C
  • Temperature Uniformity: ±0.5 °C
  • Shaking Speed Range: 200 – 1500 rpm
  • Timer Range: 1 min – 99 h 59 min
  • Mixing Mode: Orbital shaking
  • Power Consumption: 150W
  • Power Supply: AC 220 V / 110 V, 50/60 Hz
GTM-100

Cat. No.Pack SizeQuantity
GTM-1001



S.No. Catalogue No. Description Capacity
1 GTM-ACC-40×0.2* Block for 0.2 mL PCR tubes / 96 well plate 40 × 0.2 mL
2 GTM-ACC-24×0.5* Block for 0.5 mL tubes 24 × 0.5 mL
3 GTM-ACC-24×1.5* Block for 1.5 mL centrifuge tubes, conical bottom 24 × 1.5 mL
4 GTM-ACC-24×0.2* Block for 2.0 mL centrifuge tubes, round bottom 24 × 2.0 mL
5 GTM-ACC-12×15 Block for 15 mL centrifuge tubes, conical bottom 12 × 15 mL
6 GTM-ACC-4×50 Block for 50 mL centrifuge tubes, conical bottom 4 × 50 mL
7 GTM-ACC-MP Block for Microplate (flat bottom)



* Blocks are supplied as standard with a transparent clear cover.

GTM-100 Category:
Pack Size

1
