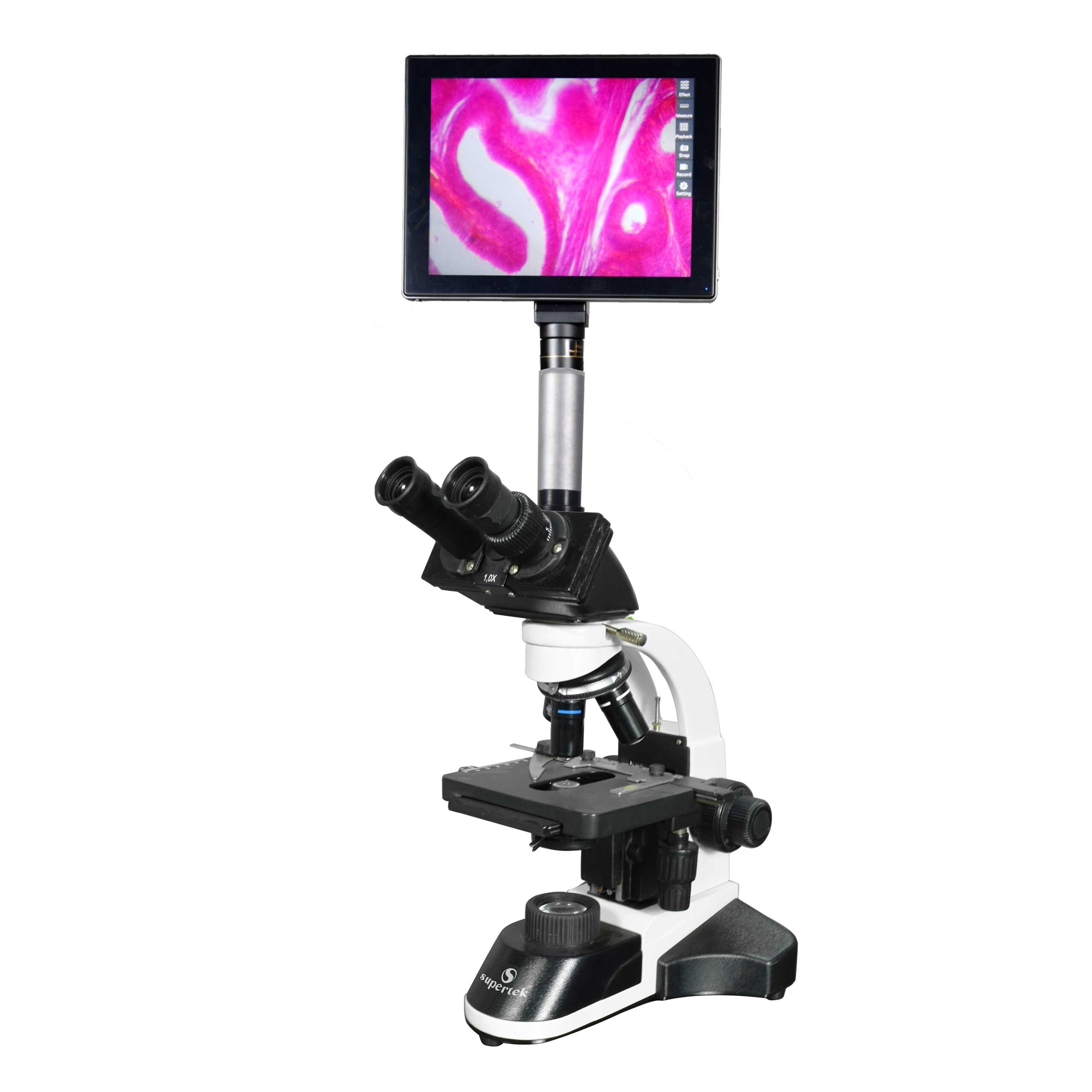

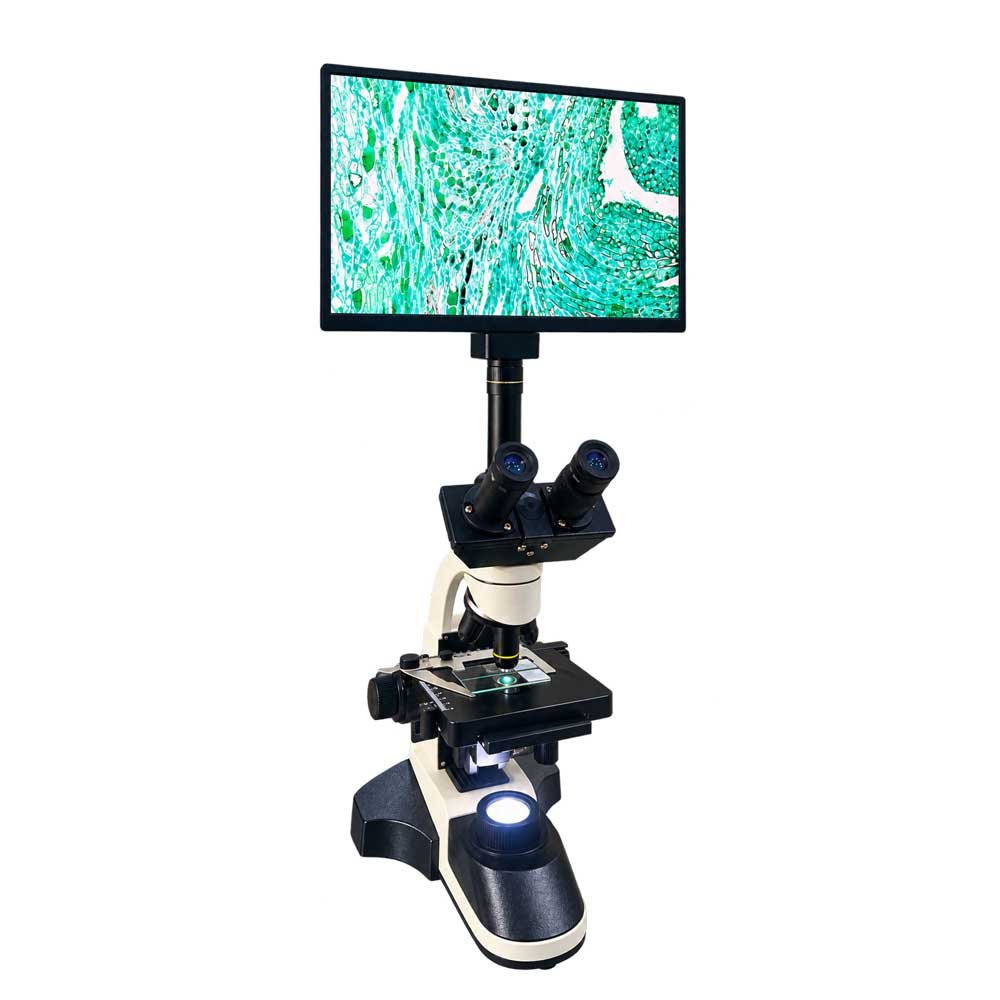

Digital Microscope

Technical Specifications:

• Main Body: Sturdy, all-die-cast balanced body for durability and stability.
• Viewing Head: 45° inclined trinocular head for comfortable viewing and easy camera integration.
• Objectives: Anti-fungal, anti-reflection coated DIN objectives – 4X, 10X, 40X, and 100X oil immersion with modern grip design.
• Light Source: High-quality LED illumination with SMPS, ensuring a wide voltage range of 110V.
• Eye-Pieces: Anti-fungal and anti-reflection coated 10X and 15X wide-field eyepieces, offering a wide field of view (18 mm).
• Stage: Rectangular, dual-layer mechanical stage with vernier reading and chrome clips for smooth and precise specimen positioning.
• Nosepiece: Outward ball-bearing loaded quadruple brass-made nosepiece with positive stop clips for easy objective changes.
• Magnification Settings: Four magnification settings – 40X, 100X, 400X, and 1000X for a broad range of observations.
• Condenser: Aluminium-made Abbe 1.25 NA condenser with copper iris diaphragm and swing-in, swing-out filter holder.
• Packing & Accessories: Includes the main body, trinocular viewing head, 4 objectives, 2 eye-pieces, dust cover, cleaning cloth, immersion oil, power cable, 50 blank slides, cover slips, and an instruction manual. Packed in a styrofoam box and cardboard box for safe transport.

Scope Pad:

• Display: 9.7” high-resolution LCD screen (1024 x 768), offering clear, vibrant visuals.
• Storage: 1GB RAM (DDR3), internal storage with external SD card support (up to 32 GB).
• Built-in Camera: 5MP color CMOS sensor for high-quality imaging.
• Network: Supports Wi-Fi, Bluetooth, USB, mini HDMI, and SD card slots for versatile connectivity.
• Power: 5V DC power with on/off switch for ease of use.
• Software: Built-in software for capture and measurement functions, enhancing usability.
• Mechanical Structure: LCD screen with 360° horizontal and 90° vertical rotation for flexible viewing angles.
• Operating System: Android 4.2, providing a user-friendly interface.
• CPU: Dual-core 1.5GHz processor for efficient performance. Ideal for educational and professional use, this microscope with Scope Pad offers enhanced functionality and ease of use, making it a valuable tool for precise observations and documentation.
