Basic Microscopes
-
Basic Microscopes
Microscope, Elementary
Low cost basic microscope for use by school children to study natural science. Its light weight makes it suitable for field work as well. Focussing is by rack and pinion movement. A 84 x 76 mm stage with disc diaphragm and slide holding clips is provided. Illumination is by plano concave mirror reflector fitted under the stage. One Huygenian eye-piece x10 and one achromatic objective x10 are provided to give a sharp image of x100 magnification.
B10010 -
Basic Microscopes
Microscope, Junior
Economy model for beginners. Monocular body is inclinable upto 90° for ease of working. Mechanical tube length is standard 160 mm. Focussing is through rack & pinion arrangement. A fixed stage 110 x 100 mm is provided with stage clips and illumination is by plano concave mirror reflector. With x10 Huygenian eye-piece and x10 achromatic objective, giving x100 magnification.
B10015 -
Basic Microscopes
Field Microscope
A simple microscope designed for fieldwork. Focussing is by rack and pinion. With Huygenian eyepiece x10 and achromatic objective x10. A battery holder clamp is provided to take a pencil torch to provide illumination to the object. In rexine bag for easy transportation.
B10446 -
Basic Microscopes
Microscope, Portable
Just the right instrument to take in the field – totally portable, lightweight and almost indestructible. Its simple design, compact size and durable metal construction make it ideal for any weather conditions. This microscope yields 40x or 100x images illuminated by the built-in prism. Threaded, spring-loaded stage clips are secure and easy to use. No gears means it’s virtually maintenance-free. 10x Huygenian eyepiece with 4x or 10x achromatic objective produces a 40x or 100x image.
BG10005 -
Basic Microscopes

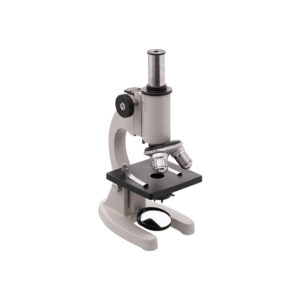

Microscope, Junior
- Durable Design: Crafted with pressure die-cast parts for exceptional strength and uniformity.
- Stability and Versatility: Features a well-proportioned, stable body that can be inclined up to 90° for optimal viewing angles.
- Precision Mechanics: Mechanical tube length of 160 mm, ensuring accurate measurements and ease of use.
- Dual Focusing Control: Separate knobs for coarse and fine focusing, with tension adjustment on the coarse knob for added precision.
- Triple Revolving Nosepiece: Designed with international standard threads and click stops for guaranteed correct centering.
- High-Quality Optics: Equipped with premium achromatic objectives and Huygenian eyepieces for sharp, aberration-free images.
- Safety First: Innovative safety stopper prevents damage to slides and objectives, ensuring longevity and reliability.
- Generous Stage Size: Fixed square stage measuring 110×110 mm with two non-removable clips for secure slide placement.
- Enhanced Illumination Options: Comes with a plano concave daylight mirror reflector, easily replaceable with an electrical illuminator.
- Stylish Finish: Available in a sleek black or scratch-resistant grey epoxy finish for a modern look.
- Included Accessories: Comes with a dust cover and cleaning cloth to keep your microscope in pristine condition.
- Secure Packaging: Packed in a molded styrofoam box or a wooden cabinet with lock and key for safe storage and transport.
OPTICS
Eye-pieces: Huygenian x10 and x15
Objectives: Achromatic x10, and x40 (SL)
Magnification: x100 to x600Simple design, compact size and durable metal construction with triple revolving nose-piece and three achromatic objectives x4, x10 and x20 giving magnification x40 to x200.
BG10017
