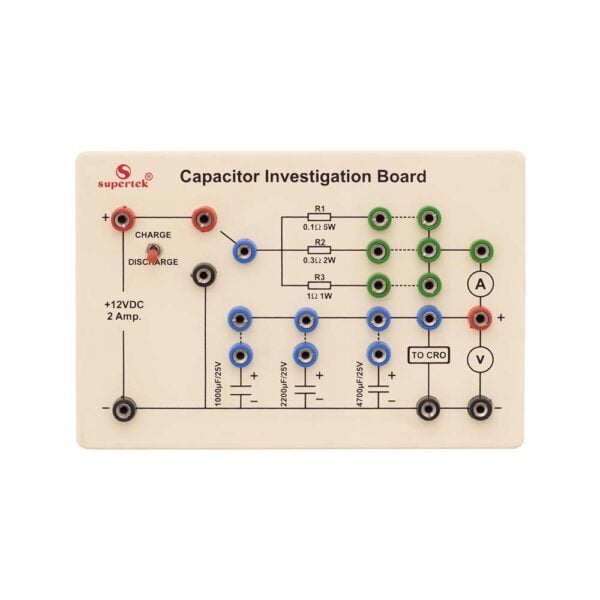

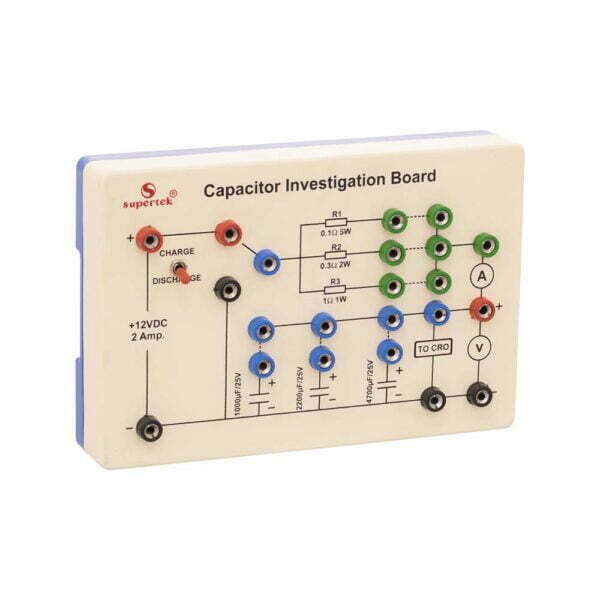

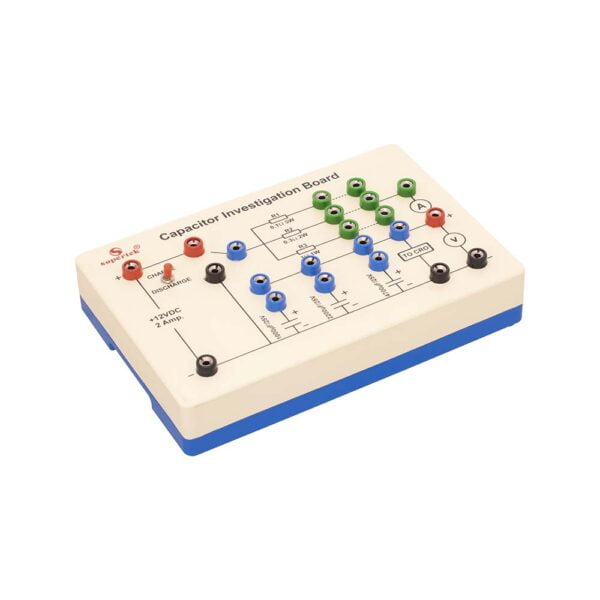

Capacitor Investigation Board


Capacitor Investigation Board is an excellent kit used for study of the charging and discharging of the capacitors. A toggle switch is used to change the charging and discharging mode of capacitor, external + 12V DC 2Amp supply is used for charging the capacitors through the current limiting resistors. The charging of the capacitor can be viewed on CRO. Once the capacitor is fully charged, it can be discharged by turning the toggle switch towards discharge. The discharging of the capacitor can also be viewed on CRO. These experiments can also be performed using the ammeter and voltmeter. Three different combinations of C&R are provided for observing different waveforms.

PH50587
