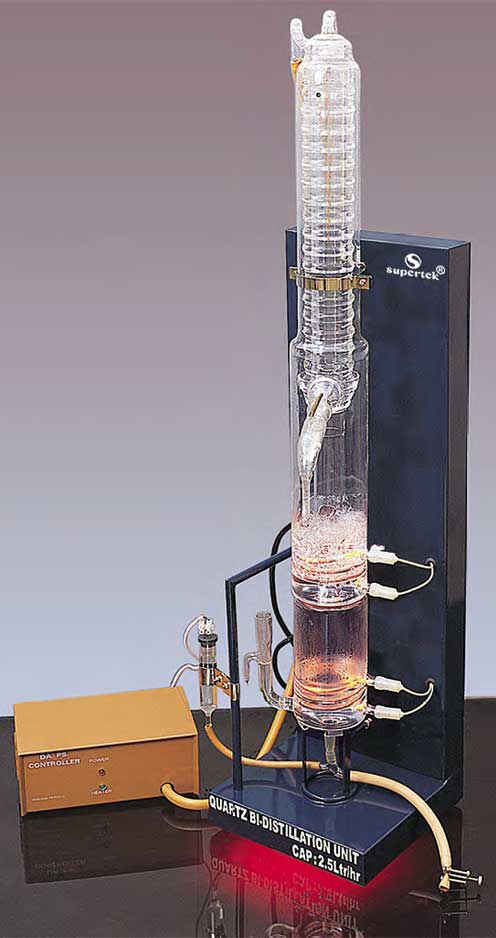

All Quartz Double Distillation


Specific Features:

  • All Quartz Double Distillation consists of demountable upper and lower boiler.
  • The lower boiler has a built in heater enclosed in a quartz boiler with a cup on top.
  • The upper boiler has a built in Quartz coiland condensing unit which is mounted on the boiler with the help
    of ball and socket joint.
  • Double Walled condenser ensures separate condensation of vapours coming from the two boilers using a single
    cooling circuit.
  • The unit in mounted on a specially designed powder coated stand and is also provided with Safety Control Unit.
  • This new dual-safety cut has accurate control of the distillation unit. It has been incorporated with advanced
    microprocessor based electronic circuit.
  • The alpha numeric LCD which has been used shows all the messages that correspond to the running of the machine.
  • Alarm System; It beeps whenever user’s attention required while running the system.

Double Distillate Quality

Parameters*   Values
Specific Conductivity   0.1-0.5 μs/cm
Biological Activity (distillate quality)   Pyrogen Free
Organic Matter    Nil
Total Carbon Matter
Total Solids    0.1 mg/ltr
Silica    <0.01 mg/ltr
Distillate Temperature     65-75°C

CH14045

Product # Output capacity approx Power rating total Cooling water consumption approx Quantity Add To Enquiry
CH14045-15DQ 1.5 Ltr/hr 3KW 50 Ltr/hr
CH14045-25DQ 2.5 Ltr/hr 5KW 70 Ltr/hr
CH14045-35DQ 3.5 Ltr/hr 7KW* 90 Ltr/hr
CH14045-40DQ 4.0 Ltr/hr 8KW* 120 Ltr/hr
CH14045-50DQ 5.0 Ltr/hr 9KW* 150 Ltr/hr

Specific Features:

  • All Quartz Double Distillation consists of demountable upper and lower boiler.
  • The lower boiler has a built in heater enclosed in a quartz boiler with a cup on top.
  • The upper boiler has a built in Quartz coiland condensing unit which is mounted on the boiler with the help
    of ball and socket joint.
  • Double Walled condenser ensures separate condensation of vapours coming from the two boilers using a single
    cooling circuit.
  • The unit in mounted on a specially designed powder coated stand and is also provided with Safety Control Unit.
  • This new dual-safety cut has accurate control of the distillation unit. It has been incorporated with advanced
    microprocessor based electronic circuit.
  • The alpha numeric LCD which has been used shows all the messages that correspond to the running of the machine.
  • Alarm System; It beeps whenever user’s attention required while running the system.

Double Distillate Quality

Parameters*   Values
Specific Conductivity   0.1-0.5 μs/cm
Biological Activity (distillate quality)   Pyrogen Free
Organic Matter    Nil
Total Carbon Matter
Total Solids    0.1 mg/ltr
Silica    <0.01 mg/ltr
Distillate Temperature     65-75°C

SKU: CH14045 Categories: , ,
Output Capacity (Approx.)

1.5 Ltr/hr, 2.5 Ltr/hr, 3.5 Ltr/hr, 4.0 Ltr/hr, 5.0 Ltr/hr

Power Rating (Total)

3KW, 5KW, 7KW*, 8KW*, 9KW*

Cooling Water Consumption (approx.)

50 Ltr/hr, 70 Ltr/hr, 90 Ltr/hr, 120 Ltr/hr, 150 Ltr/hr
