CMOS CAMERA IS SERIES
These high-resolution CMOS cameras can be directly integrated into advanced trinocular microscopes. Designed for precision imaging, research, and documentation, these systems offer plug-and-play digital microscopy with powerful IS Series software for real-time image enhancement, 2D measurements, and high-definition imaging.
Model Range & Highlights:
5MP CMOS Camera, IS-500
- Sensor : 1/2.5″ 5.1M/AR0521(C)
- Pixel Size : 2.2×2.2 pm
- FPS/Resolution : 30fps @ 2592×1944, 30fps @ 1280×960, 30fps @ 640×480
- Best For : Routine brightfield applications, teaching labs
- Exposure Range : 0.1 – 1000 ms
- White Balance & Colour Rendering : ROI white balance, ultra fine colour engine
- Power Supply : USB powered (5V)
MA-IS-01 -
Add on's
CMOS CAMERA IS SERIES
These high-resolution CMOS cameras can be directly integrated into advanced trinocular microscopes. Designed for precision imaging, research, and documentation, these systems offer plug-and-play digital microscopy with powerful IS Series software for real-time image enhancement, 2D measurements, and high-definition imaging.
Model Range & Highlights:
12MP CMOS CAMERA, IS-1200
- Sensor : 1/2.3″ 12M/IMX577(C)
- Pixel Size : 1.55×1.55 pm
- FPS/Resolution : 20fps @ 3840×3040, 20fps @ 1920×1520, 20fps @ 960×760
- Best For : Detailed educational and research applications
- Exposure Range : 0.1–2000 ms
- White Balance & Colour Rendering: ROI white balance, ultra fine colour engine
- Power Supply : USB powered (5V)
- Common Software Features (IS Series Software):
· Image enhancement (hue, saturation, contrast, etc.)
· Real-time auto-exposure & white balance
· 2D measurement & calibration
· Compatible with Windows, Mac OS, Linux, Android Multiple Platform
· SDK support for C/C++, C#/VB NET, Python, Java, Direct Show, Twain etc
MA-IS-02 -
Add on's
1.3 MP Digital Imaging Camera
1.3 MP DIGITAL IMAGING CAMERA
A versatile MD-130 entry-level imaging module with a 1/3″ 1.3MP sensor,
ideal for routine microscopy needs.
· Resolution : 1280×1024
· Sensor : 1.3 Mega pixel, 2.2μm pixel size
· Frame Rate : 17fps
· Software : Future Win Joe with editing and management tools
· Spectral Range : 400–650nm (with IR filter)
· Best For : Basic research, education, and documentation
· Output : Image and video captureMA-MD-01 -
Add on's
3.0 MP High Clarity Digital Camera
Designed for mid-range imaging requirements, the MD-300 delivers higher resolution and flexibility with both YUY2 and MJPG output formats.
· Resolution : 2048×1536
· Sensor : 1/2.5″ 3MP, 2.2μm pixel size
· Frame Rate : 15fps
· Spectral Range : 400–650nm (with IR filter)
· Enhanced Preview Options : Multiple resolutions from 352×288 to 2048×1536
· Exposure & White Balance : Manual and auto modes
· Best For : High-school/university research labs and industrial inspectionMA-MD-02 -
Add on's
5.0 MP Professional-Grade Camera
The MD-500 provides outstanding resolution and dynamic range, making it ideal for high-precision applications.
· Resolution : 2592×1944
· Sensor : 1/2.5″ 5MP, 2.2μm pixel size
· Frame Rate : 10fps at full resolution
· Dynamic Range : 70.1dB – superior clarity in varied lighting
· S/N Ratio : 38.1dB
· Best For : Advanced biological research, material analysis, and publication-quality ImagingMA-MD-03 -
Add on's
LabScope Cam HD
1080P Digital Microscope Camera
· Sensor : Sony IMX178, 8MP
· Resolution : 1920×1080 @ 60fps (HDMI), 30fps (USB)
· Image Capture : JPEG, 5M Resolution
· Video Record : 1080P @ 30fps (ASF format)
· Outputs : HDMI 1.4, USB
· Storage : SD Card
· Controls : USB mouse; exposure, white balance, colour, sharpness
· Features : Zoom, Mirror, Freeze, Crosshair, ComparisonMA-SC-01 -
Add on's
LabScope Cam 4K
4K UHD Microscope Camera with Wireless Support
· Sensor : Sony IMX183, 13MP
· Resolution : 3840×2160 @ 30fps (HDMI, Wi-Fi, Network)
· Image Capture : JPEG, 5M Resolution
· Video Record : 1080P @ 30fps
· Outputs : HDMI 2.0, Wi-Fi, USB
· Storage : SD Card, USB Flash
· Wireless : 5G WLAN (AP/STA mode)
· Controls : Exposure, gain, colour, denoise; USB mouse operation
· Features : Zoom, Freeze, Crosshair, Comparison, Browser ViewMA-SC-02 -
Add on's

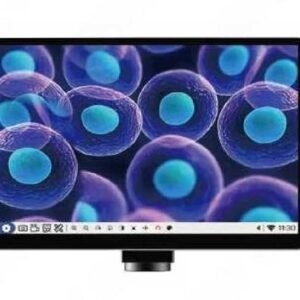

Scope Pad Series
Android Microscope Tablet Camera A smart, all-in-one imaging device combining a tablet and microscope camera.
The Scope Pad offers instant viewing, editing, measuring, and sharing—all on a touch screen interface.Key Features:
· Built-in Android OS with intuitive touchscreen
· Direct HDMI or USB connectivity
· Supports apps, image storage, and internet browsing
· Real-time video display on screen
· Dual function : camera + tabletModels Available Scope Pad 5, Scope Pad 10, Scope Pad 15
Display Size : 5″, 10″, and 15″ TFT- LCD touchscreen
Camera Sensor : 5MP or 8MP CMOS
Resolution : Up to 3264×2448 pixelsModels Available Scope Pad 5, Scope Pad 10, Scope Pad 15
Output : HDMI, USB, WiFi (model dependent)
Storage : Micro SD / Internal
Software : Pre-installed image capture & measurement software
Applications : Classroom teaching, image sharing, fieldwork documentation
Comes with : Adapter, Mounting Kit, USB Cable, Stylus Pen
Compatible with most stereo and biological microscopes with C-mount adapter.MA-SP-03
