Condensers

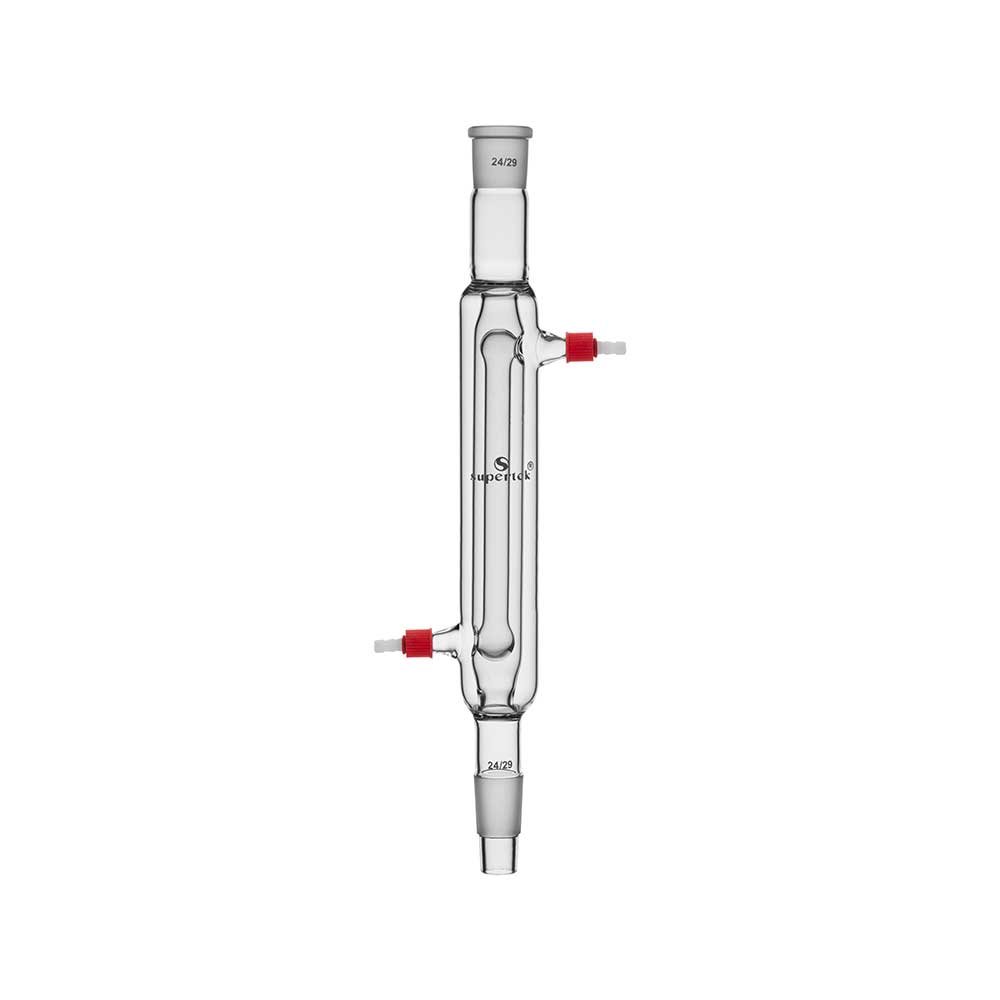

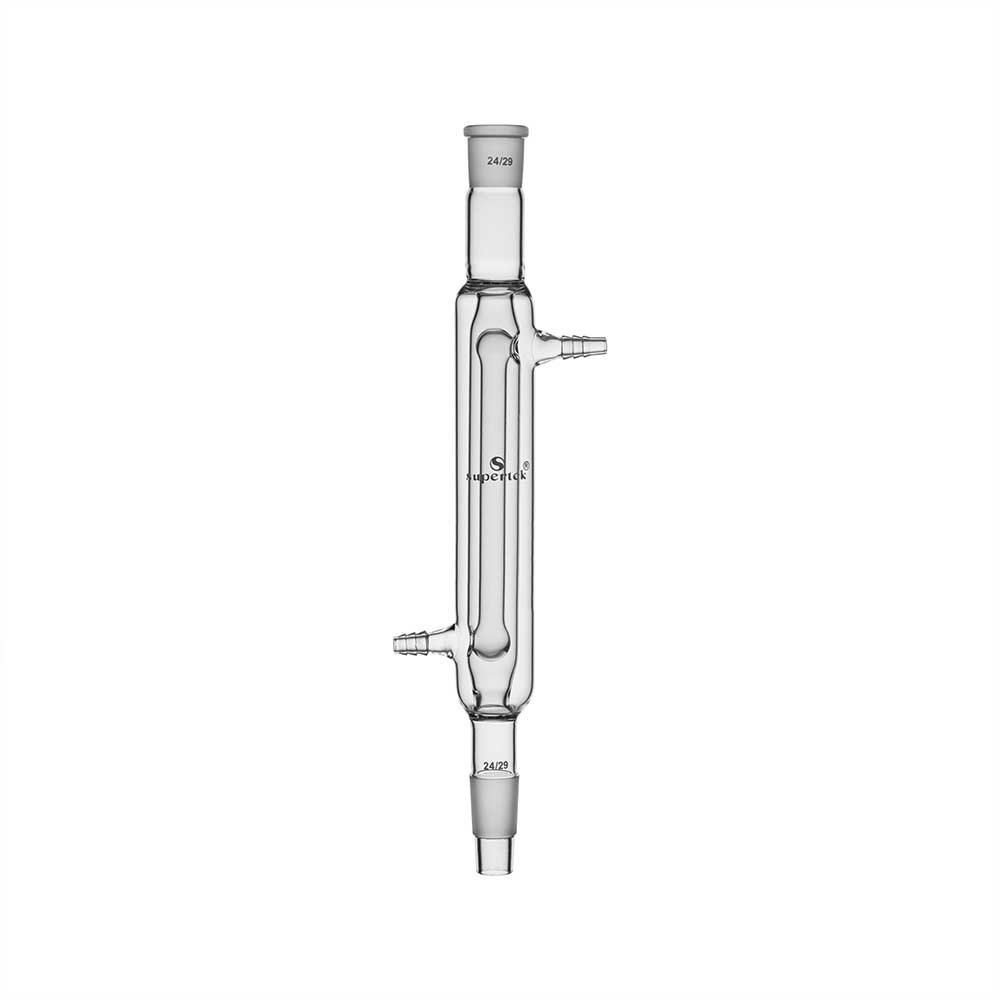

Condenser Double Surface Davies
These condensers are majorly used in research laboratories. A double-surface condenser has a water jacket both on the outside and through the center of the condensing tube. It is required where the condenser liquid is very volatile. Hence for distilling ethers, alcohols, esters, aromatics, petroleum products and essential oils, these condensers are widely used.
16.124
Available Options
| Cat. No. | Connector | Effective Length, mm | Socket Size | Cone Size | Pack Size | Quantity | |
|---|---|---|---|---|---|---|---|
| 16.124.0005 | Glass | 200 | --- | --- | 1 | ||
| 16.124.0010 | Glass | 150 | 19/26 | 19/26 | 1 | ||
| 16.124.0015 | Glass | 150 | 24/29 | 24/29 | 1 | ||
| 16.124.0020 | Glass | 200 | 19/26 | 19/26 | 1 | ||
| 16.124.0025 | Glass | 200 | 24/29 | 24/29 | 1 | ||
| 16.124.0030 | Glass | 200 | 29/32 | 29/32 | 1 | ||
| 16.124.0035 | Glass | 200 | --- | 19/26 | 1 | ||
| 16.124.0040 | Glass | 200 | --- | 24/29 | 1 | ||
| 16.124.0045 | Glass | 200 | --- | 34/35 | 1 | ||
| 16.124.0050 | Glass | 250 | --- | 19/26 | 1 | ||
| 16.124.0055 | Glass | 250 | 19/26 | 19/26 | 1 | ||
| 16.124.0060 | Glass | 250 | 24/29 | 24/29 | 1 | ||
| 16.124.0065 | Glass | 300 | 19/26 | 19/26 | 1 | ||
| 16.124.0070 | Glass | 300 | 24/29 | 24/29 | 1 | ||
| 16.124.0075 | Glass | 400 | 24/29 | 24/29 | 1 | ||
| 16.124.0080 | Glass | 500 | 24/29 | 24/29 | 1 | ||
| 16.124.0085 | Glass | 500 | 34/35 | 34/35 | 1 | ||
| 16.124.0090 | Glass | 600 | 34/35 | 34/35 | 1 | ||
| 16.124.5005 | Screw Thread | 200 | --- | --- | 1 | ||
| 16.124.5010 | Screw Thread | 150 | 19/26 | 19/26 | 1 | ||
| 16.124.5015 | Screw Thread | 150 | 24/29 | 24/29 | 1 | ||
| 16.124.5020 | Screw Thread | 200 | 19/26 | 19/26 | 1 | ||
| 16.124.5025 | Screw Thread | 200 | 24/29 | 24/29 | 1 | ||
| 16.124.5030 | Screw Thread | 200 | 29/32 | 29/32 | 1 | ||
| 16.124.5035 | Screw Thread | 200 | --- | 19/26 | 1 | ||
| 16.124.5040 | Screw Thread | 200 | --- | 24/29 | 1 | ||
| 16.124.5045 | Screw Thread | 200 | --- | 34/35 | 1 | ||
| 16.124.5050 | Screw Thread | 250 | --- | 19/26 | 1 | ||
| 16.124.5055 | Screw Thread | 250 | 19/26 | 19/26 | 1 | ||
| 16.124.5060 | Screw Thread | 250 | 24/29 | 24/29 | 1 | ||
| 16.124.5065 | Screw Thread | 300 | 19/26 | 19/26 | 1 | ||
| 16.124.5070 | Screw Thread | 300 | 24/29 | 24/29 | 1 | ||
| 16.124.5075 | Screw Thread | 400 | 24/29 | 24/29 | 1 | ||
| 16.124.5080 | Screw Thread | 500 | 24/29 | 24/29 | 1 | ||
| 16.124.5085 | Screw Thread | 500 | 34/35 | 34/35 | 1 | ||
| 16.124.5090 | Screw Thread | 600 | 34/35 | 34/35 | 1 |
