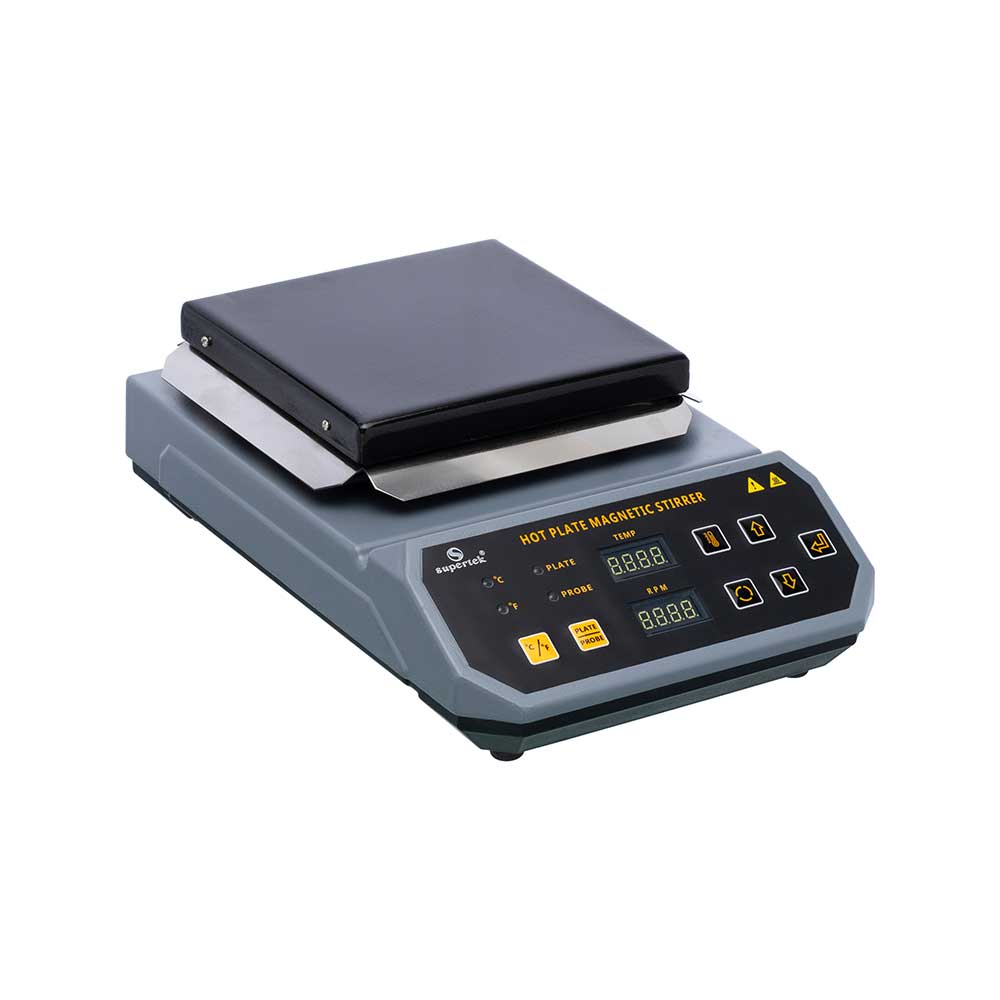

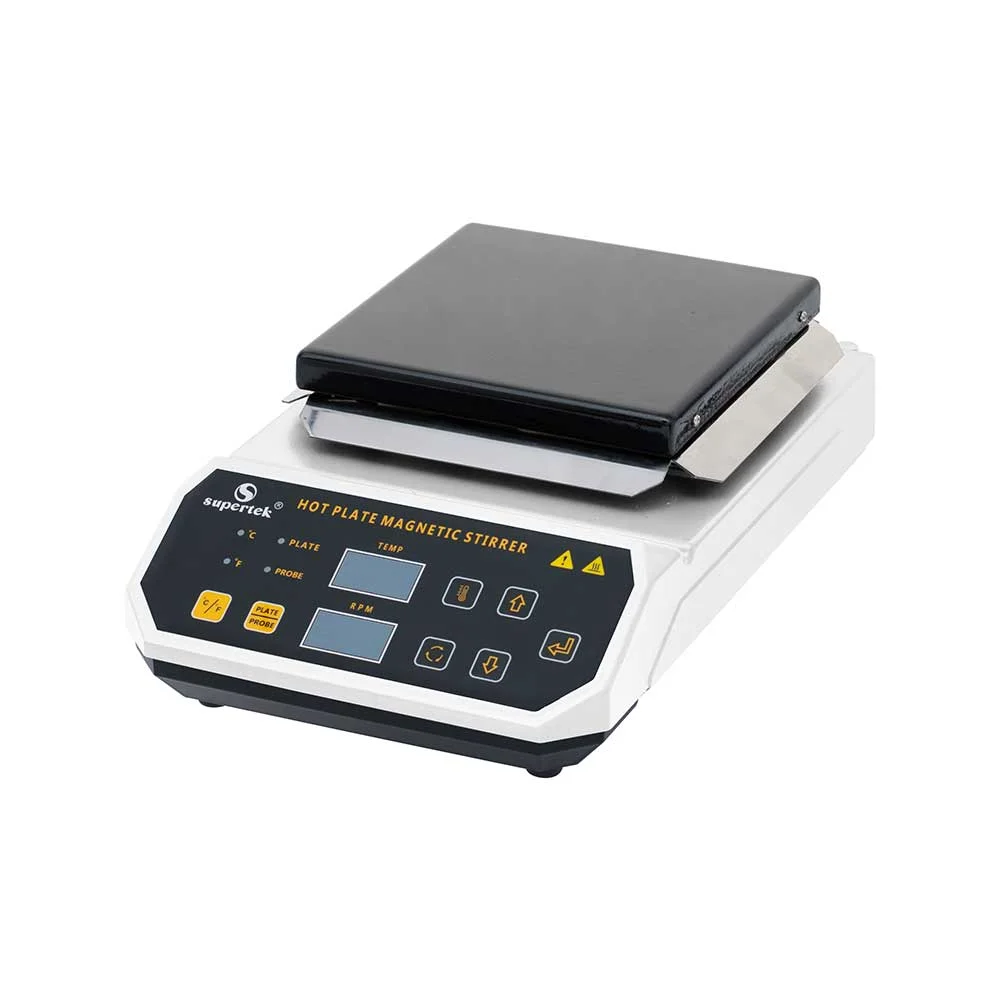

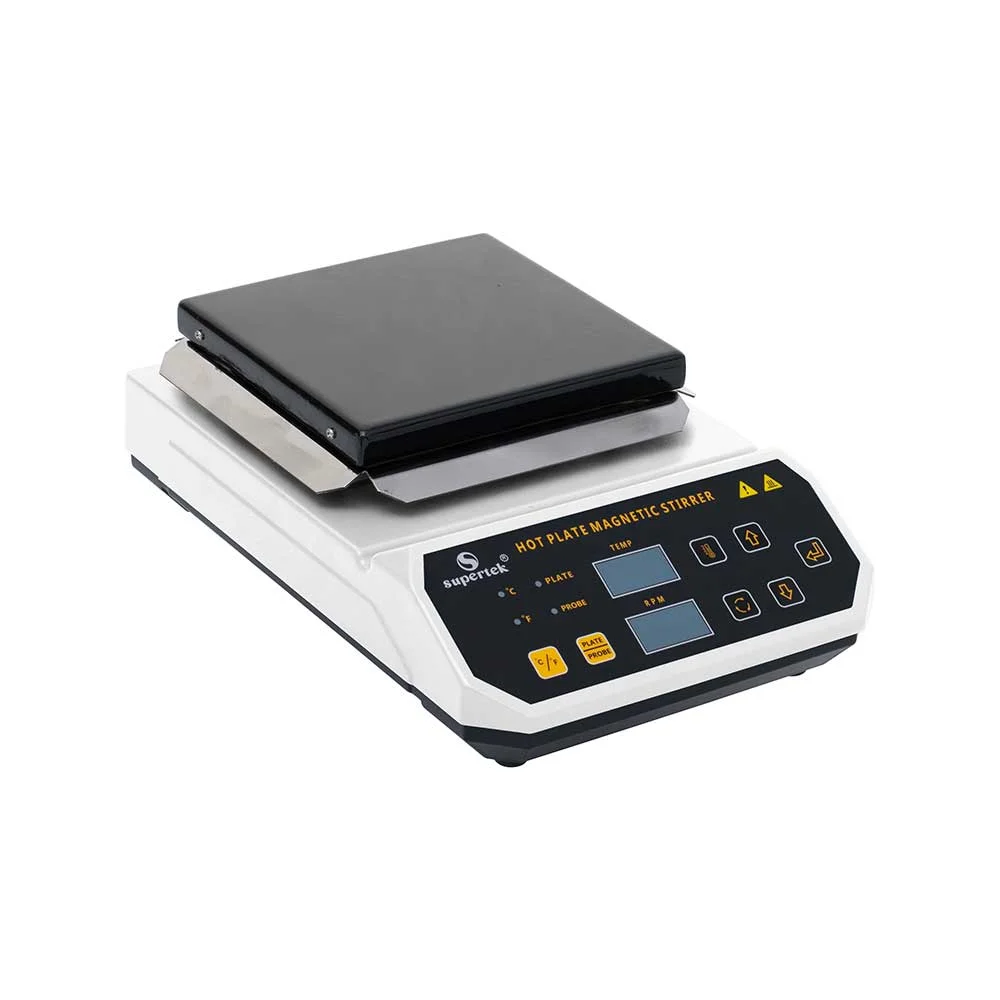

Hot Plate Magnetic Stirrer, Digital
Availability:
In Stock
The Digital hot plate magnetic stirrer is used for the simultaneous heating and stirring of solutions.
Features:
- Spill-proof design
- With non-slip rubber feet
- Temperature probe PT100
- Stirring is done by DC motor
- Includes support rods and clamps
- Independent control for heating and stirring
- Selection of hot plate and probe temperature
- LED display for showing actual/set temperature and RPM
- Integrated circuit for precise control of heating and stirring
- High-quality, finely finished textured powder-coated aluminium body
- Ceramic coating offers chemical resistance against strong acids and bases
- Top plate options: Ceramic coated stainless steel & Silver anodized aluminum
Technical Specifications:
- Temperature range of top plate: Upto 380°C, Resolution 1°C
- Top Plate Dimensions: 180 x 180 mm
- Input voltage: 220 V AC ± 10%, 50/60 Hz
- Heater Rating: 600 W
- Temperature accuracy ± 1°C
- Stirring speed: Upto 1500 RPM
- CE certified
- IP21
MHS-D
| Cat. No. | Indent No. | Capacity | Top Plate Material | Max. Temperature of top plate (°C) | Pack Size | Quantity | |
|---|---|---|---|---|---|---|---|
| MHS-D-5LA | CH12395D/2A | 5L(H2O) | Aluminium | 380 | 1 | ||
| MHS-D-5LC | CH12395D/2C | 5L(H2O) | Ceramic Coated | 380 | 1 | ||
| MHS-D-20LA | CH12395SD/2A | 20L(H2O) | Aluminium | 380 | 1 | ||
| MHS-D-20LC | CH12395SD/2C | 20L(H2O) | Ceramic Coated | 380 | 1 |
