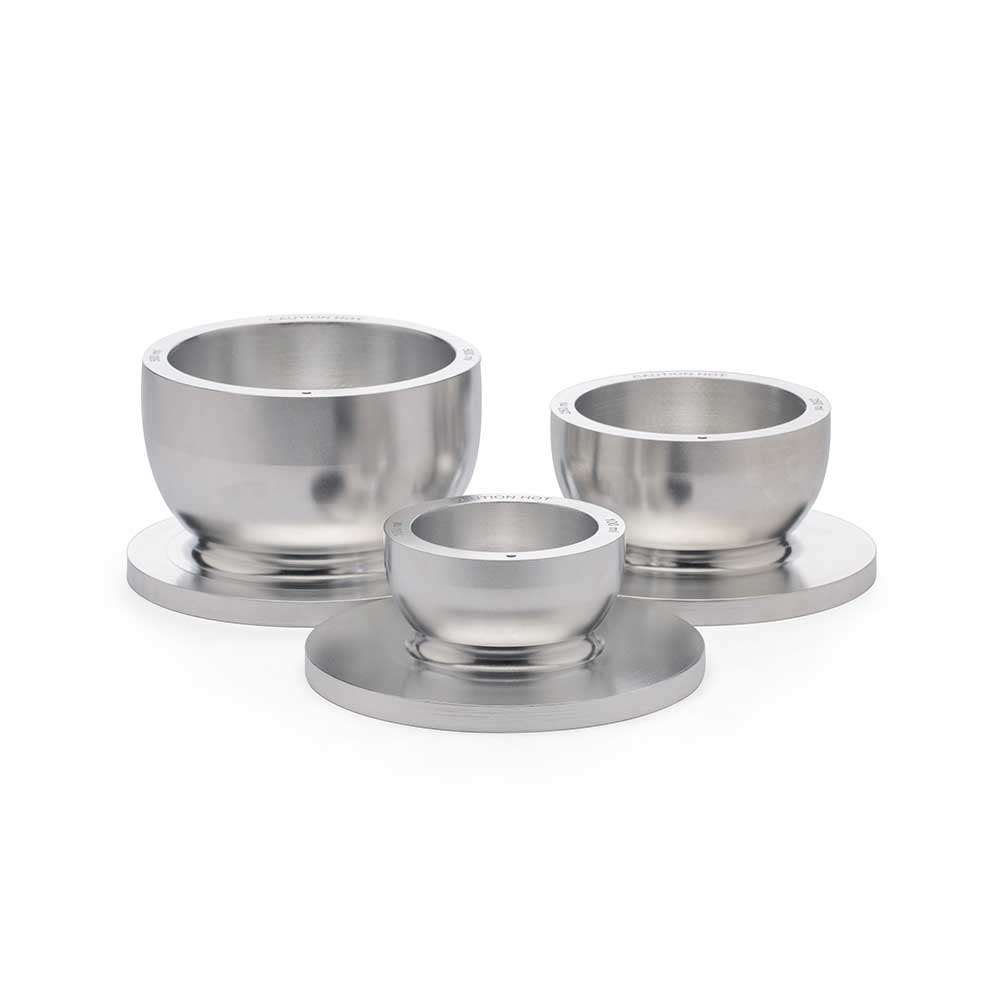

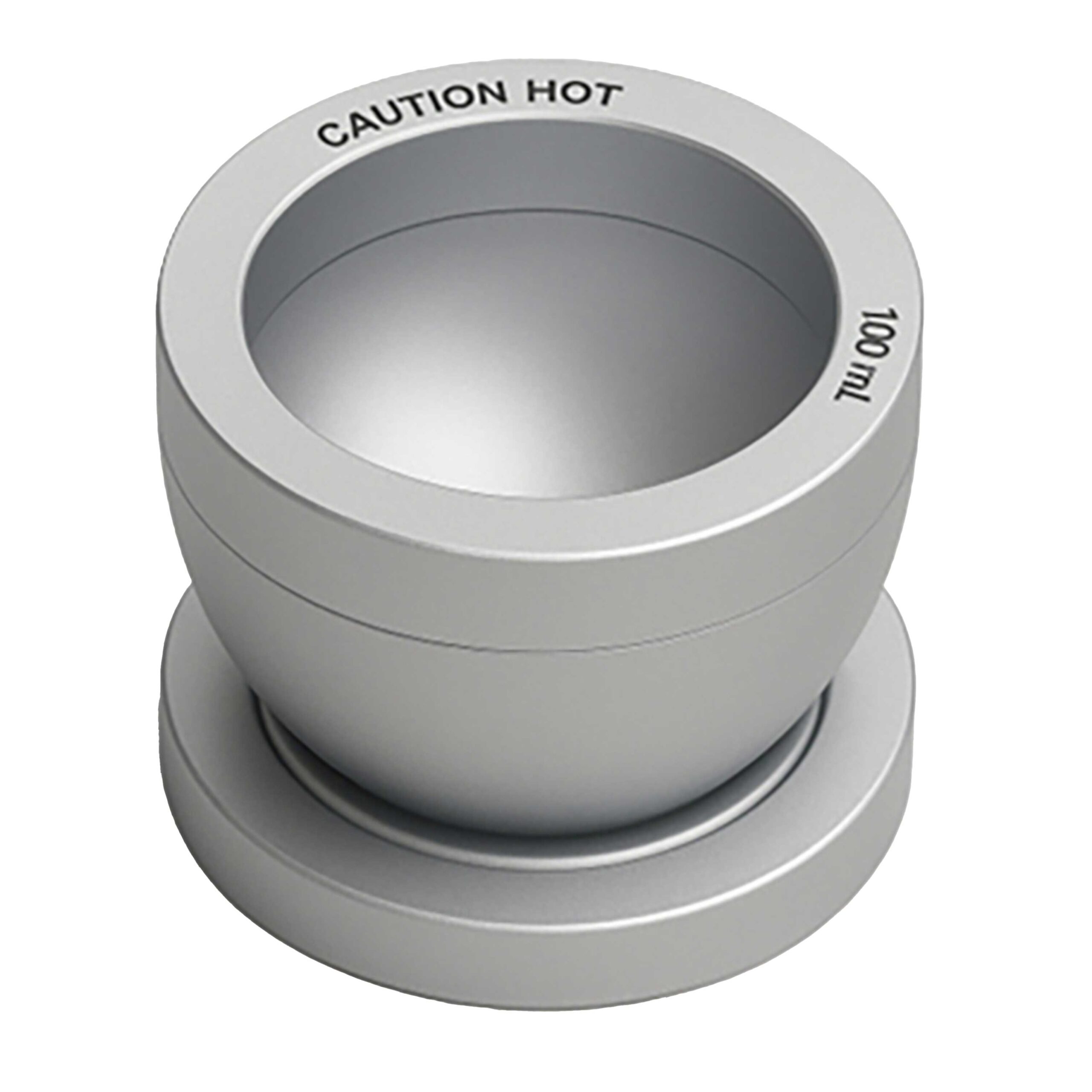

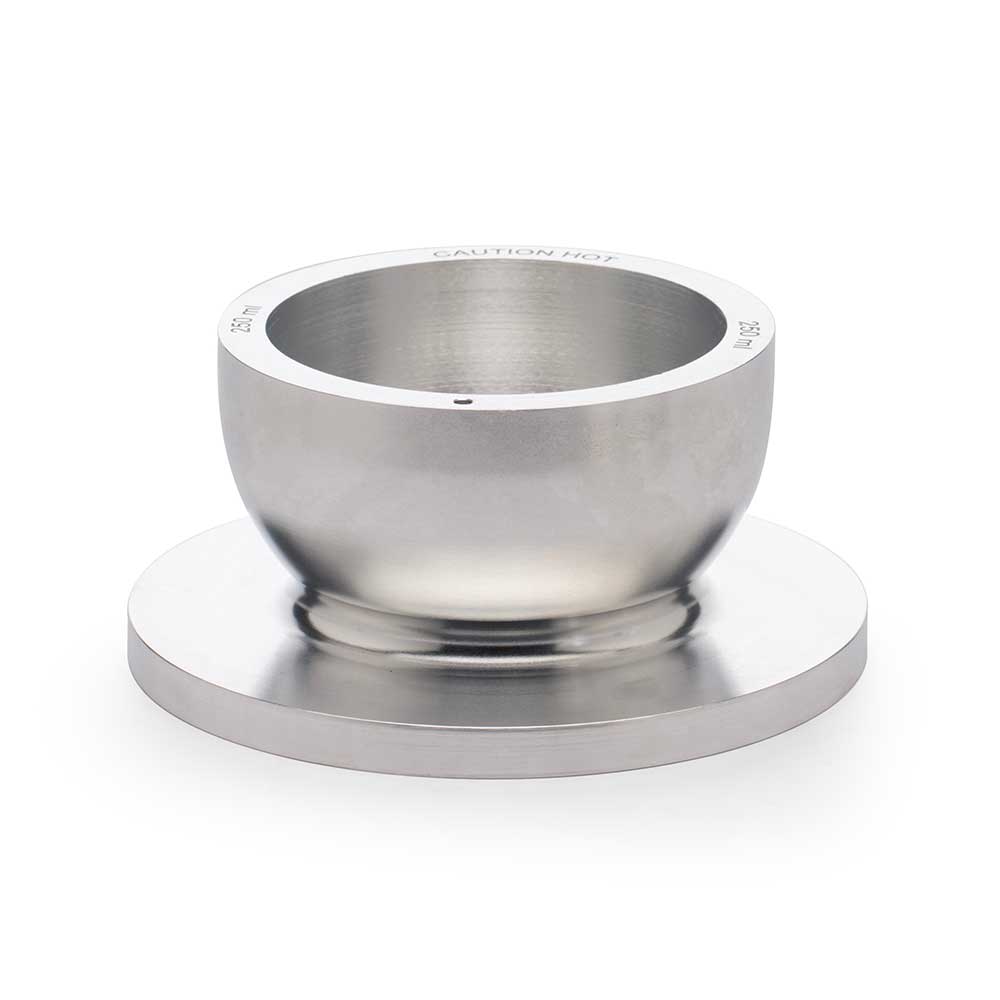

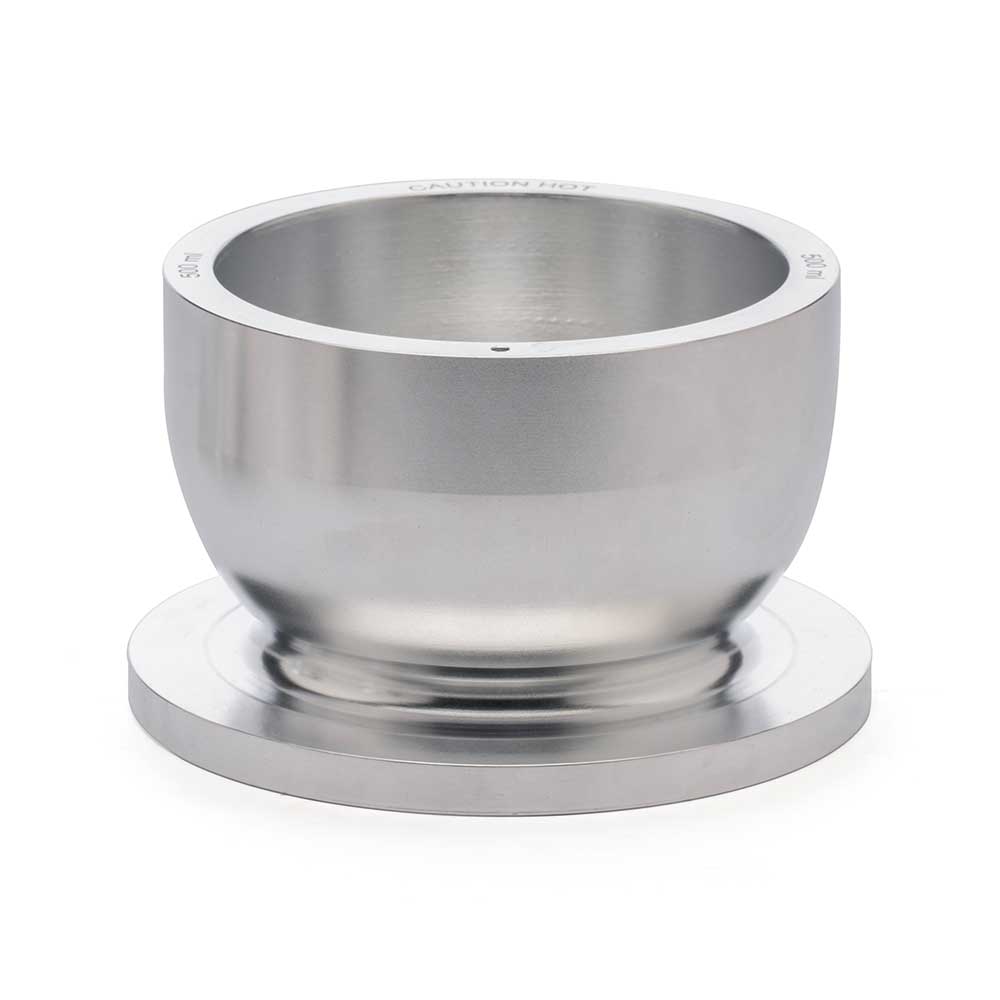

Heat-On Block System

Efficient and safe heating blocks for round-bottom flasks (50 ml to 5000 ml), made from anodized aluminum for excellent heat transfer and chemical resistance. Compatible with all major hotplate stirrers. Eliminates messy oil baths, ensures uniform heating, and saves energy.

Product Features:

• Designed for safe, clean, and energy-efficient heating of Round Bottom Flasks (RBF) from 50 ml to 5000 ml.
• Manufactured from high-grade Aluminium for excellent heat conduction and durability.
• Available in Anodized Silver Finish
• Deep cavity design for maximum flask contact ensuring uniform heating.
• Compatible with all leading Hot Plate Stirrers up to 135 mm diameter.
• Equipped with a Temperature Sensor hole (3 mm Ø) for direct probe insertion.
• Reduced energy consumption compared to oil baths.
• Zero oil contamination, zero maintenance.
• Optional lifting handles for safe removal

Technical Specifications:

• Material – Aluminium
• Finish – Silver Anodizing
• Flask Holding Capacity – 50 ml, 100 ml, 250 ml, 500 ml, 1000 ml, 2000 ml, 3000 ml, 5000 ml.
• Maximum Temperature – Use Upto 260°C
