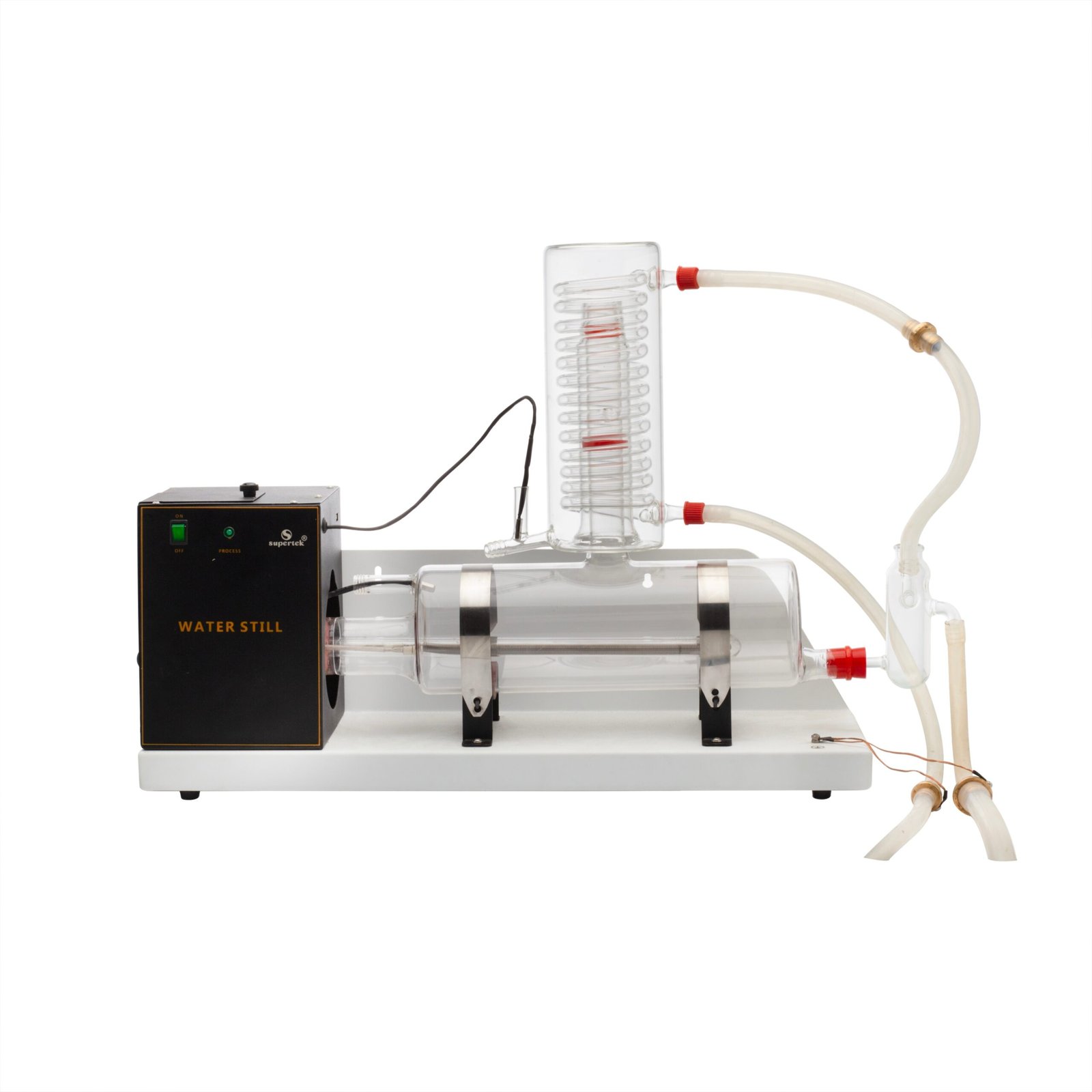

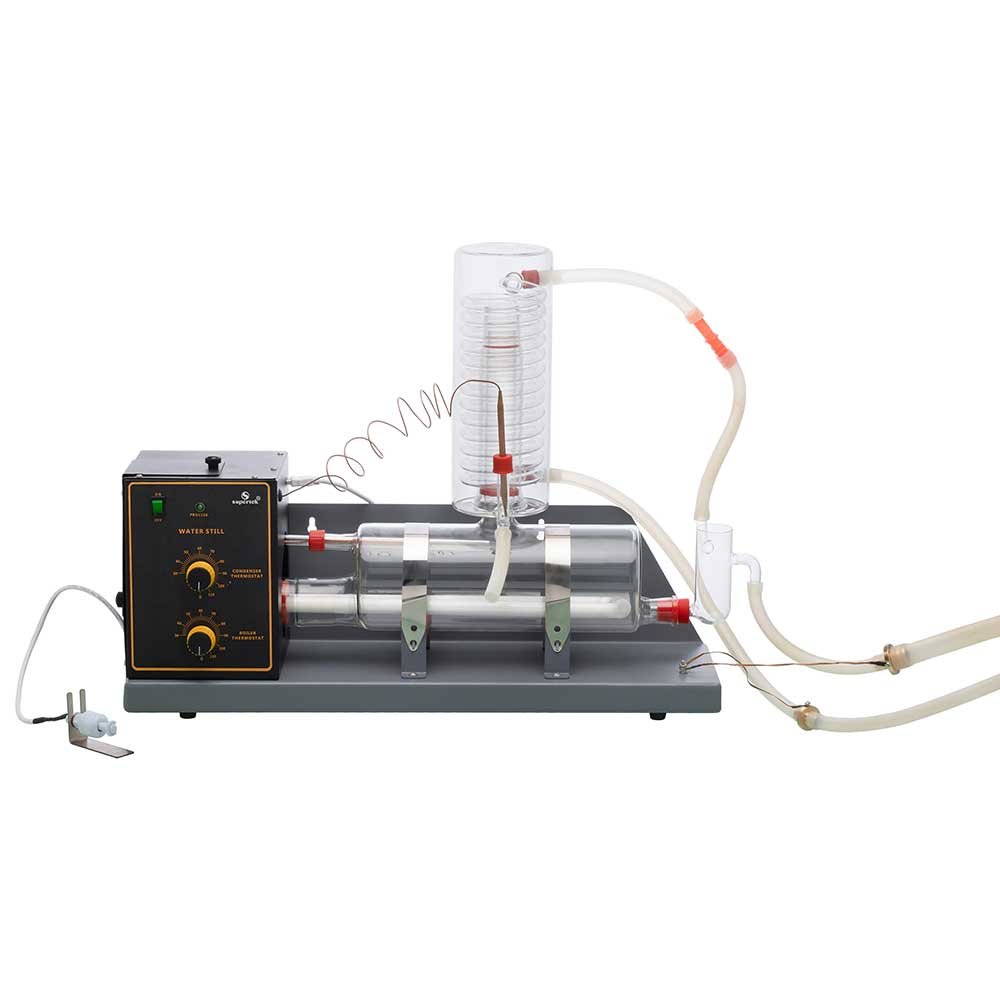

Water Still, Advanced


Water Stills are used in laboratory to provide an on-demand supply of distilled water. It removes the charged ions, the water still can filter out non-volatile organic compounds, microbes, minerals and chemicals.

Salient Features

  • This all-glass water still with silica-sheathed heaters and high-efficiency condenser ensures top d istillate purity at an economical price.
  • A reservoir level control feature automatically turns off the heater when the r eservoir is full p reventing any overflow.
  • Two independent safety thermostats, mounted in the condenser and boiler prevents overheating in the event the water supply is
    interrupted.
  • Easily and safely change the hoses without the risk of breaking any glassware using the screw thread connections.

Specifications

  • Output – 4 liters/hrs., single distilled
  • pH – 5.0-6.5
  • Conductivity μScm-1 – 1.0-2.0
  • Resistivity, mOhm-cm – 0.5 – 1.0
  • Temperature – 25 – 35°C
  • Pyrogen content * – Pyrogen free
  • Water supply – 1 liters/min, 3 – 100psi, (20-700kPa)
  • Electricity supply – 220 or 240V, 50-60Hz, single phase
  • Power requirement – 3kW
  • Dimensions (w x d x h) – 590 x 160 x 410mm
  • Type (H2O Purification) – Water Still
  • Feedwater Source – Pretreated Water, Tap/Potable

Quality Construction

  • Wall mountable mild steel stand.
  • Powder Coated exterior.
  • Glass silica sheathed heaters.
CH14033
