Trinocular Microscope


  • Viewing Head – Trinocular Head, Inclined at 30°/45° Rotatable; 55-75mm interpupillary distance. Digital camera can be added to the trinocular head.
  • Eyepiece – WF 10x, WF 15x
  • Nosepiece – Quadruple Nosepiece
  • Achromatic Objectives – 4x, 10x, 40x (SL), 100x (SL, Oil)
  • Stage – Double Layer Mechanical Stage with 70 x 27 mm X-Y travel range
  • Focusing – Coaxial Knobs for Coarse and Fine focus
  • Condenser – Adjustable Two Lens Abbe Condenser NA 1.25 with Iris Diaphragm, filter holder and blue filter
  • Illumination – LED Illumination with adjustable brightness
  • Accessories – Dust Cover and Cleaning Cloth
  • Packaging – Styrofoam

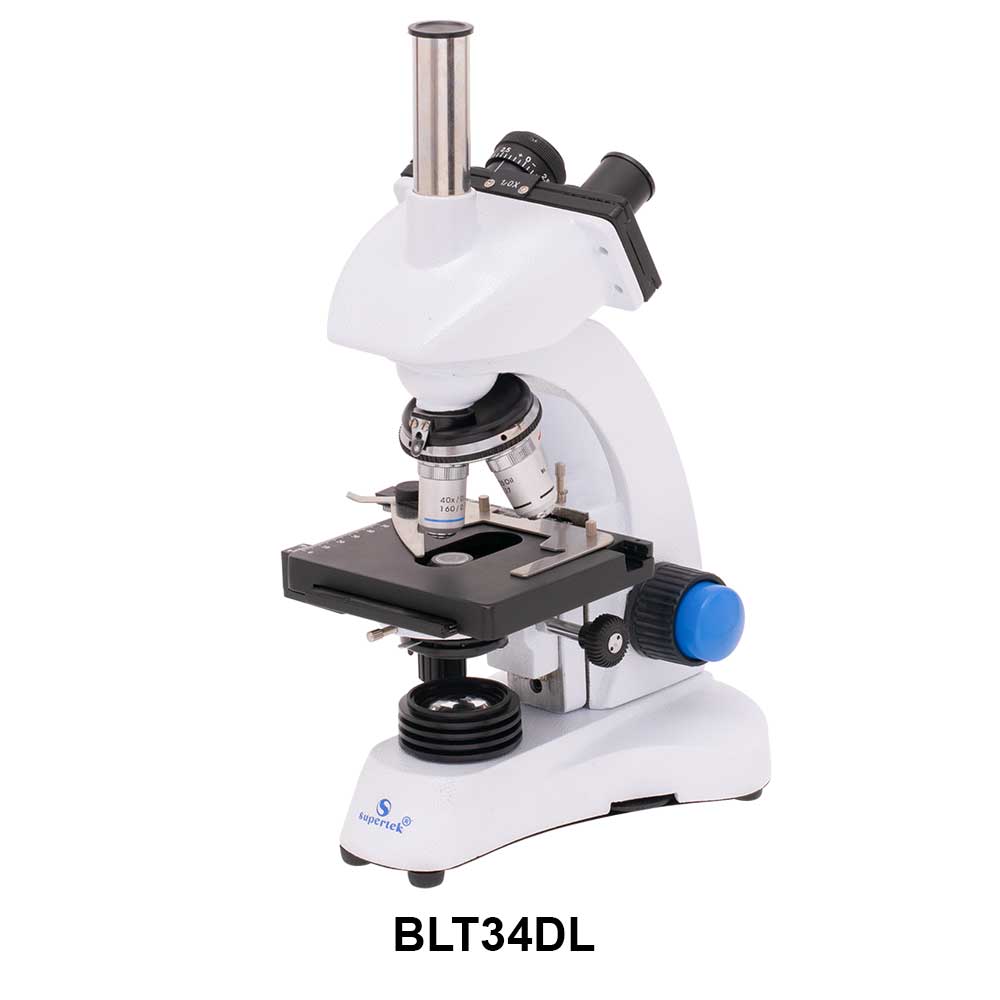

BLT34DL

Available Options

Cat. No.InclinedQuantity
BLT34DLat 30°
BLT44DLat 45°
