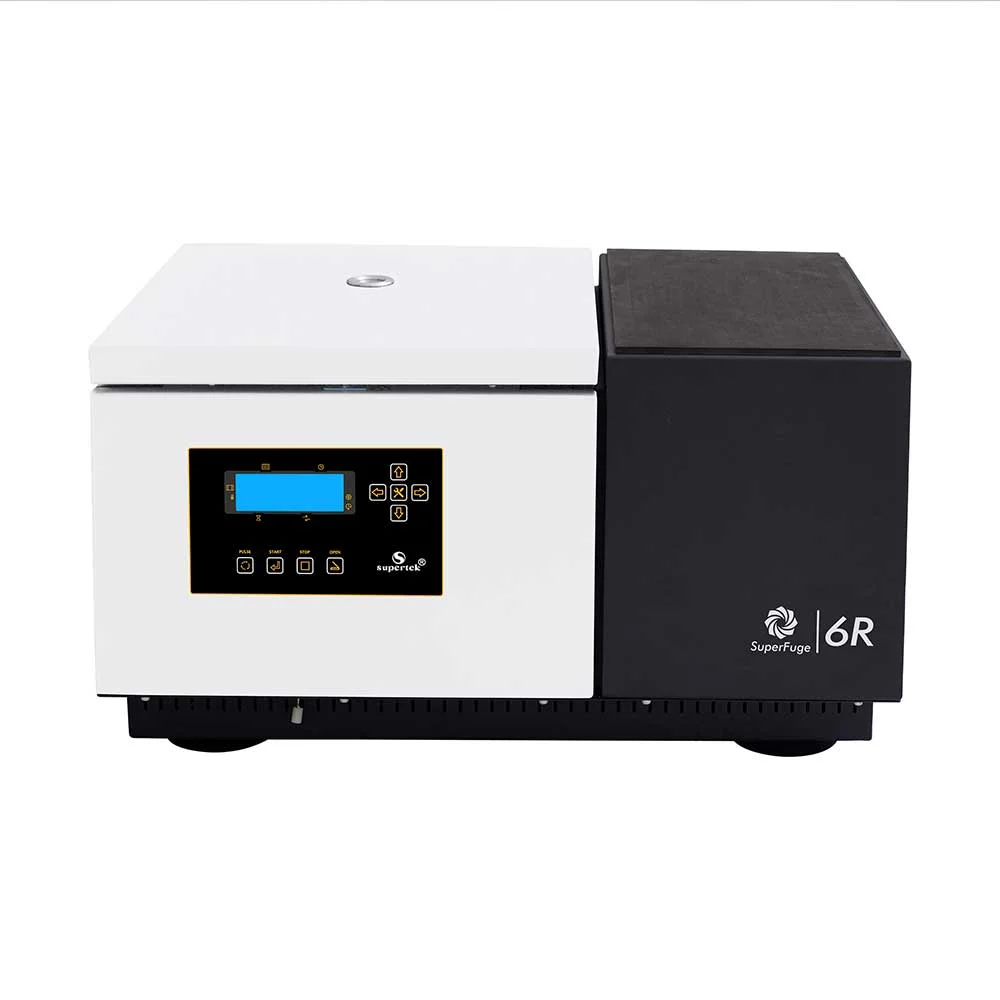

SuperFuge 6R/6V

Availability:

In Stock


The SuperFuge 6R/6V centrifuges offer unmatched versatility and performance for demanding laboratory applications. With a robust design capable of handling high-volume tubes (up to 500 mL swing-out and 250 mL fixed angle), the SuperFuge 6 series is engineered for excellence in cell culture, protein purification, and molecular biology workflows.

Applications:

  • Clinical & Research Applications: Cell harvesting in cell culture, Protein isolation and purification, Molecular biology, PCR sample preparation, PBMC isolation, Genomics.
  • Industrial & Applied Sciences: Fermentation applications, Ultrafiltration, Food technology.

Features:

  • Heavy duty and high-capacity centrifuge machine: Capacities ranging up to 4 × 500 mL.
  • High RPM & RCF Output: Making it ideal for fine particle separation, nucleic acid preparation, and more.
  • Combines micro and multi-purpose centrifuge functionality.
  • Features Brushless Induction Motor.
  • Supports multiple rotors (Not included). Accommodates both swing-out and fixed-angle rotors.
  • Automatic rotor recognition ensures accurate RCF calculation and safe operation.
  • Available with refrigeration option.
  • Refrigerated model uses eco-friendly, CFC-free R-134a refrigerant.
  • Salient Features: Emergency Lid Opening, Rotor Cycle Counting, Solid Counter-Balanced Hinges, Imbalance Detection, Motor Overload Protection, Stainless Steel Chamber with Guard Ring, Error Detection System.
  • Intuitive user interface with bright digital display.
  • Features programmable timer up to 99 hours, 59 minutes, and 59 seconds.
  • Store up to 99 user-defined programs for fast setup and repeatable applications.
  •  Multiple acceleration and braking profiles options.
  • Eco Mode for saving energy during standby.
  • Low operating noise levels.
  • CE Marked.
SF-6

Cat. No.CategoryDescriptionAngleRPM (Ref)RCF (Ref)RPM (Non-Ref)RCF (Non-Ref)Quantity
SF-6RCentrifugeSuperFuge 6R----------
SF-6VCentrifugeSuperFuge 6V----------
A26-6X250Rotors6 × 250 mL26°1000015,540 × g80009,946 × g
A26-8X50Rotors8 x 50 mL26°1100013,926 × g1000011,963 × g
A30-12X30Rotors12 x 30 mL30°1200019,194 × g1100015,692 × g
A30-20X10Rotors20 x 10 mL30°1300017,109 × g1200015,777 × g
A30-6X100Rotors6 × 100 mL30°1100015,422 × g1000012,745 × g
A34-14X50Rotors14 × 50 mL34°1000017,217 × g800011,019 × g
A36-6X85Centrifuge6 x 85 mL36°1100015,557 × g1000012,857 × g
A40-12X15Rotors12 x 15 mL40°1300023,791 × g1100016,774 × g
A45-24X5Rotors24 x 5 mL45°1310025,901 × g1200021,734 × g
A45-40X15Rotors24 x 5 mL45°55005,310 × g55005,310 × g
A45-48X1.5Rotors48 x 1.5 mL45°1300018,516 × g1300018,516 × g
A45-6X50Rotors6 x 50 mL45°1210020,133 × g1100016,639 × g
A45-96X0.2Rotors6 x 50 mL45°1200014,489 × g1200014,489 × g
SW90-2X4Rotors2 x 4 MTP90°37002,189 × g37002,189 × g
SW90-4X250RRotors4 x 250 mL Round Carrier90°45004,302 × g45004,302 × g
SW90-4X250SRotors4 x 250 mL Round Carrier90°45004,302 × g45004,302 × g
SW90-4X4Rotors4 x 250 mL Square Carrier90°30001,841 × g30001,841 × g
SW90-4X500SRotors4 x 500 mL Square Carrier90°45004,369 × g45004,369 × g
Technical Specifications
Specification SuperFuge 6R SuperFuge 6V
Catalogue No. SF-6R SF-6V
Max. Capacity (Swing-out) 2000 mL (4 × 500 mL) 2000 mL (4 × 500 mL)
Max. Capacity (Fixed-angle) 1500 mL (6 × 250 mL) 1500 mL (6 × 250 mL)
Max. Speed 14,000 RPM 13,000 RPM
Max. RCF 25,901 × g 21,734 × g
Acceleration/Braking Time Swing-out Rotor 25 s / 25 s 25 s / 25 s
Acceleration/Braking Time Fixed Angle Rotor 20 s / 20 s 20 s / 20 s
Noise Level <58 dB A <58 dB A
Temperature Range -20°C to +40°C Ambient to +40°C
Temperature Accuracy ±1°C —
Refrigerant R134a (CFC Free) Not Applicable
Dimensions (H × W × D) 540 × 842 × 675 mm 540 × 560 × 675 mm
Height with Lid Open 1055 mm 1055 mm
Weight (without rotor) 110 kg 80 kg
Power Consumption 1.7 kW 1.3 kW
Input Power 220–230 V AC, 50–60 Hz 220–230 V AC, 50–60 Hz
