| Technical Specifications | ||
|---|---|---|
| Specification | SuperFuge 4R | SuperFuge 4V |
| Catalogue No. | SF-4R | SF-4V |
| Max. Capacity (Swing-out) | 700 mL (4 × 175 mL) | 700 mL (4 × 175 mL) |
| Max. Capacity (Fixed-angle) | 400 mL (4 × 100 mL) | 400 mL (4 × 100 mL) |
| Max. Speed | 20,000 RPM | 17,500 RPM |
| Max. RCF | 32,198 × g | 24,652 × g |
| Acceleration/Braking Time Swing-out Rotor | 25 s / 25 s | 25 s / 25 s |
| Acceleration/Braking Time Fixed Angle Rotor | 20 s / 20 s | 20 s / 20 s |
| Noise Level | <56 dB A | <56 dB A |
| Temperature Range | -10°C to +40°C | Ambient to +40°C |
| Temperature Accuracy | ±1°C | — |
| Refrigerant | R134a (CFC Free) | Not Applicable |
| Dimensions (H × W × D) | 450 × 745 × 555 mm | 390 × 395 × 527 mm |
| Height with Lid Open | 875 mm | 840 mm |
| Weight (without rotor) | 80 kg | 50 kg |
| Power Consumption | 750 W | 500 W |
| Input Power | 220–230 V AC, 50–60 Hz | 220–230 V AC, 50–60 Hz |
Separation

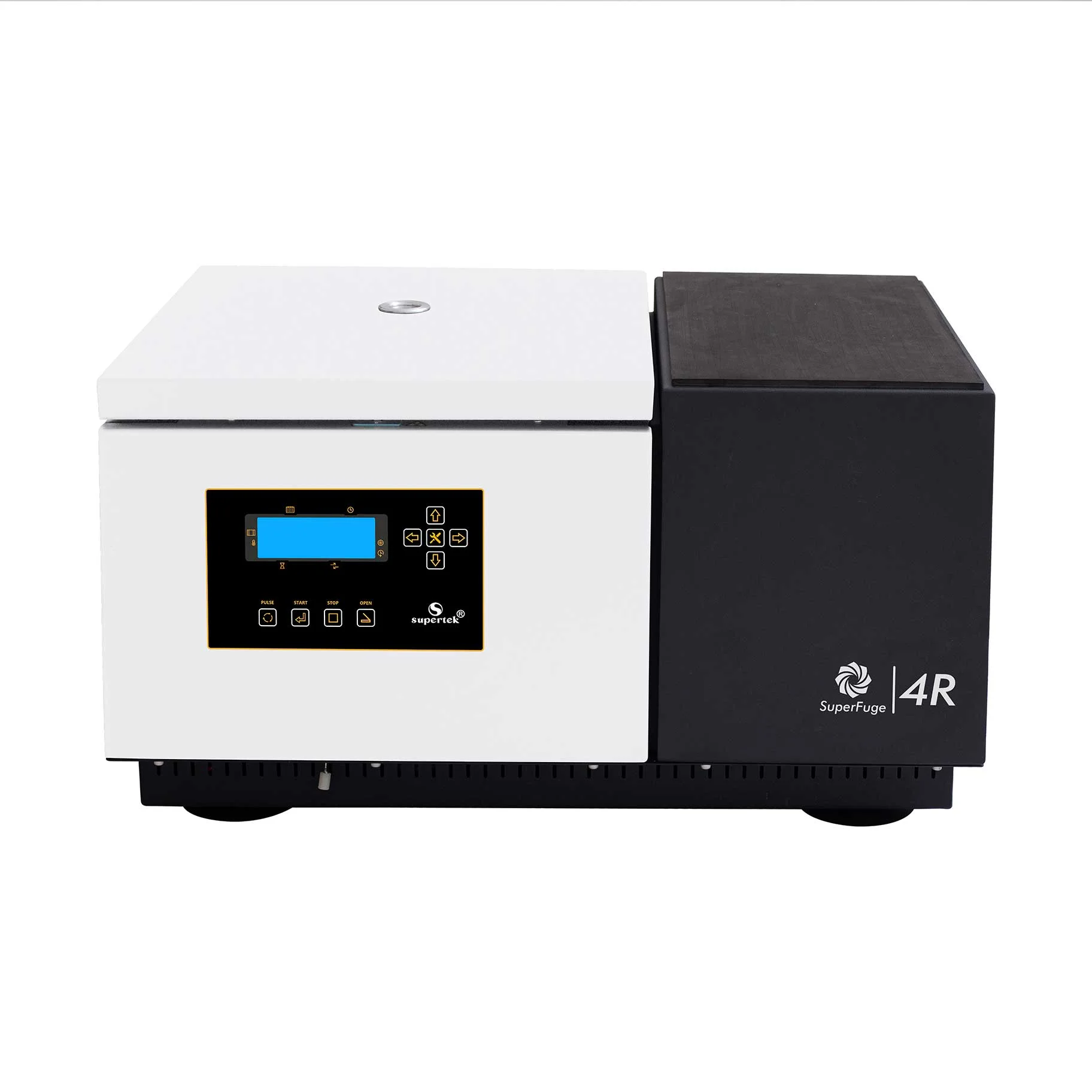

SuperFuge 4R/4V
Availability:
In Stock
The SuperFuge 4R/4V centrifuges are versatile, high-capacity systems designed for a wide range of clinical, research, and bioprocessing needs. These robust instruments support both swing-out and fixed-angle rotors, offering enhanced flexibility and performance for laboratories that handle a diverse set of protocols.
With support for up to 700 mL in swing-out and 400 mL in fixed-angle configurations, the SuperFuge 4 series is a reliable solution for applications ranging from cell culture and ultrafiltration to molecular biology and protein purification.
Applications:
- Clinical & Research Applications: Cell harvesting in cell culture, PBMC isolation, Protein isolation and purification, Molecular biology, PCR workflows.
- Industrial & Applied Sciences: Fermentation, Ultrafiltration, Food technology.
Features:
- Heavy duty and high-capacity centrifuge machine: Capacities ranging up to 4 × 175 mL.
- High RPM & RCF Output: Making it ideal for fine particle separation, nucleic acid preparation, and more.
- Combines micro and multi-purpose centrifuge functionality.
- Features Brushless Induction Motor.
- Supports multiple rotors (Not included). Accommodates both swing-out and fixed-angle rotors.
- Automatic rotor recognition ensures accurate RCF calculation and safe operation.
- Available with refrigeration option.
- Refrigerated model uses eco-friendly, CFC-free R-134a refrigerant.
- Salient Features: Emergency Lid Opening, Rotor Cycle Counting, Solid Counter-Balanced Hinges, Imbalance Detection, Motor Overload Protection, Stainless Steel Chamber with Guard Ring, Error Detection System.
- Intuitive user interface with bright digital display.
- Features programmable timer up to 99 hours, 59 minutes, and 59 seconds.
- Store up to 99 user-defined programs for fast setup and repeatable applications.
- Multiple acceleration and braking profiles options.
- Eco Mode for saving energy during standby.
- Low operating noise levels.
- CE Marked.
Rotor Accessories:
*A – Angle Rotor | AL – Angle Rotor with Lid | SW – Swing Out Rotor | Rotors available in pack of 1
SF
| Cat. No. | Category | Description | Angle | RPM (Ref) | RCF (Ref) | RPM (Non-Ref) | RCF (Non-Ref) | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
| SF-4R | Centrifuge | SuperFuge 4R | -- | -- | -- | -- | -- | ||
| SF-4V | Centrifuge | SuperFuge 4V | -- | -- | -- | -- | -- | ||
| A26-6X30 | Rotor | 6 × 30 mL | 26° | 11000 | 11,093 × g | 10000 | 9,168 × g | ||
| A30-20X5 | Rotor | 20 × 5 mL | 30° | 16000 | 20,035 × g | 14000 | 15,339 × g | ||
| A30-4X30 | Rotor | 4 × 30 mL | 30° | 16000 | 21,179 × g | 14000 | 16,215 × g | ||
| A36-10X8 | Rotor | 10 × 8 mL | 36° | 16000 | 22,324 × g | 14000 | 17,092 × g | ||
| A45-12X5 | Rotor | 12 × 5 ml Conical | 45° | 14000 | 22,351 × g | 14000 | 22,351 × g | ||
| A45-24X1.5 | Rotor | 24 × 1.5 mL | 45° | 20000 | 32,198 × g | 17500 | 24,652 × g | ||
| A45-24X15 | Rotor | 24 × 15 mL | 45° | 5000 | 3,857 × g | 5000 | 3,857 × g | ||
| A45-30X1.5 | Rotor | 30 × 1.5 mL | 45° | 15000 | 25,155 × g | 15000 | 25,155 × g | ||
| A45-32X0.2 | Rotor | 32 × 0.2 ml PCR | 45° | 15000 | 15,345 × g | 10000 | 15,345 × g | ||
| A45-48X1.5 | Rotor | 48 × 1.5 mL | 45° | 10000 | 10,062 × g | 5000 | 10,062 × g | ||
| A45-4x100 | Rotor | 4 × 100 mL | 45° | 5000 | 2,823 × g | 10000 | 2,823 × g | ||
| AL26-12X15 | Rotor | 12 × 15 mL | 26° | 10000 | 11,404 × g | 10000 | 11,404 × g | ||
| AL26-6X50 | Rotor | 6 × 50 mL | 26° | 10000 | 10,509 × g | 15000 | 10,509 × g | ||
| AL45-24X1.5 | Rotor | 24 × 1.5 mL | 45° | 17500 | 29,103 × g | 15000 | 21,382 × g | ||
| SW90-10X1.5 | Rotor | 10 × 1.5 mL | 90° | 10000 | 9,391 × g | 8000 | 6,010 × g | ||
| SW90-192X0.5 | Rotor | 192 × 0.5 mL | 90° | 2000 | 581 × g | 2000 | 581 × g | ||
| SW90-384X0.5 | Rotor | 384 × 0.5 mL | 90° | 4000 | 2,075 × g | 4000 | 2,075 × g | ||
| SW90-4X175R | Rotor | 4 × 175 mL Round Carrier | 90° | 4500 | 3,441 × g | 4500 | 3,441 × g | ||
| SW90-4X175S | Rotor | 4 × 175 mL Square Carrier | 90° | 4500 | 3,441 × g | 4500 | 3,441 × g |
