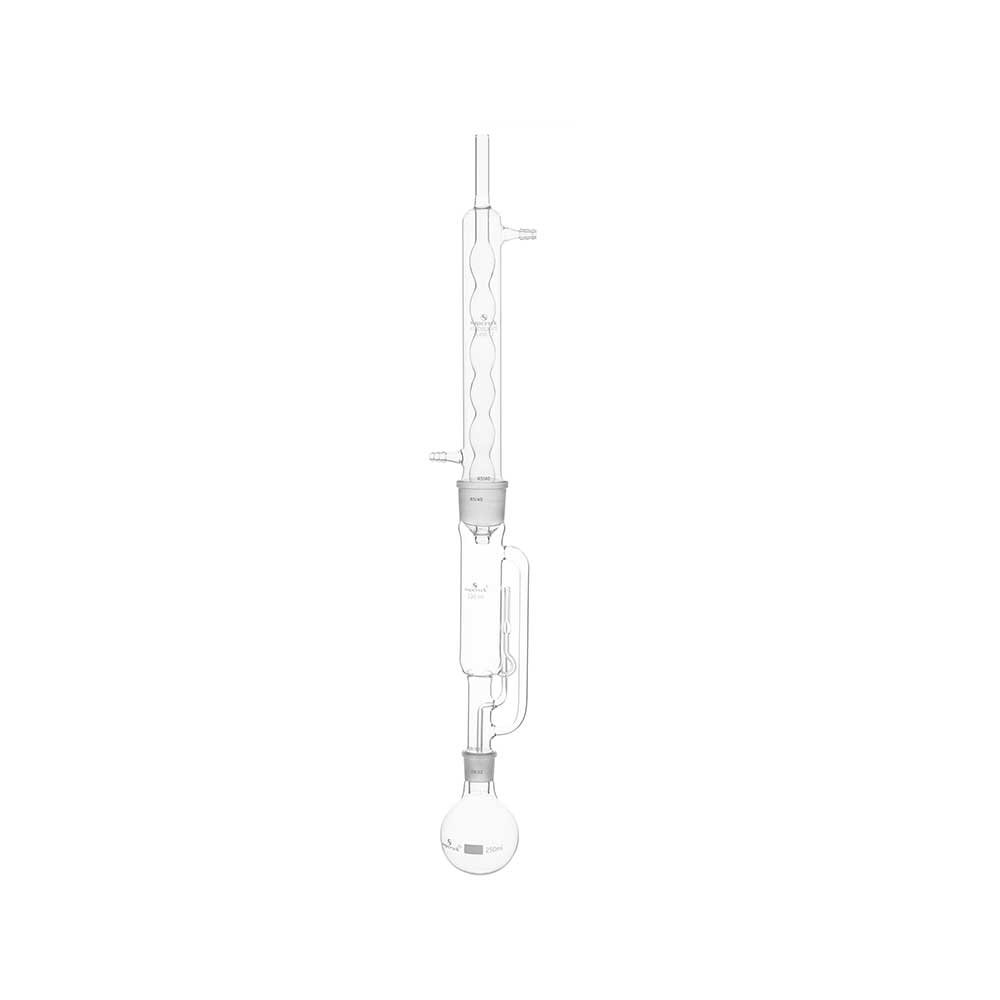

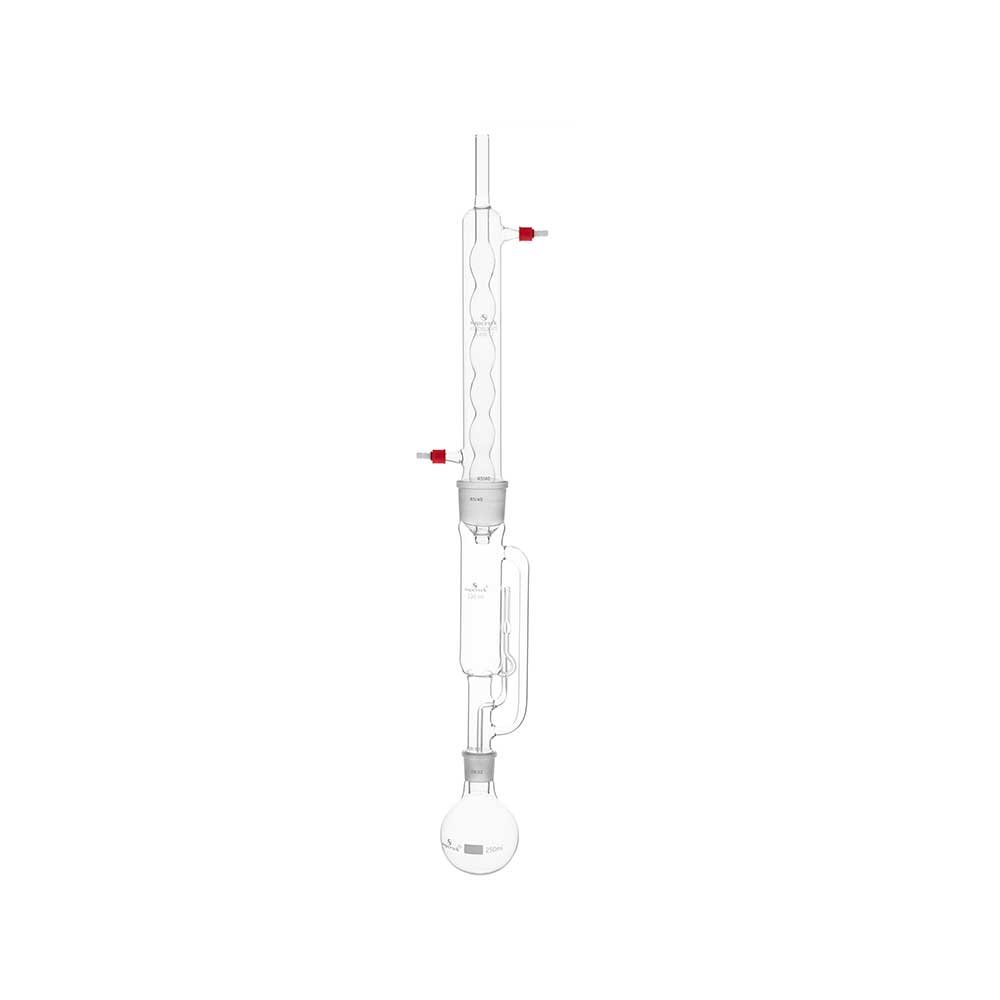

Soxhlet Extraction Apparatus, Consists of Flask, Extractor and Condenser

16.308

Available Options

Cat. No.	Connector	Condenser Type	Effective Capacity, ml	Extractor Socket	Extractor Cone	Flask Capacity, ml	Pack Size
16.308.0005	Glass	Allihin	100	45/40	29/32	250	1
16.308.0010	Glass	Allihin	250	45/40	29/32	500	1
16.308.0015	Glass	Allihin	500	60/46	29/32	1000	1
16.308.0020	Glass	Allihin	1000	71/55	29/32	2000	1
16.308.0025	Glass	Dimroth	100	45/40	29/32	250	1
16.308.0030	Glass	Dimroth	250	45/40	29/32	500	1
16.308.0035	Glass	Dimroth	500	60/46	29/32	1000	1
16.308.0040	Glass	Dimroth	1000	71/55	29/32	2000	1
16.308.5005	Screw Thread	Allihin	100	45/40	29/32	250	1
16.308.5010	Screw Thread	Allihin	250	45/40	29/32	500	1
16.308.5015	Screw Thread	Allihin	500	60/46	29/32	1000	1
16.308.5020	Screw Thread	Allihin	1000	71/55	29/32	2000	1
16.308.5025	Screw Thread	Dimroth	100	45/40	29/32	250	1
16.308.5030	Screw Thread	Dimroth	250	45/40	29/32	500	1
16.308.5035	Screw Thread	Dimroth	500	60/46	29/32	1000	1
16.308.5040	Screw Thread	Dimroth	1000	71/55	29/32	2000	1
