LCR Resonance Apparatus


Objective: To plot Frequency Vs. Current Characteristics of LCR circuit when connected in series or in parallel.

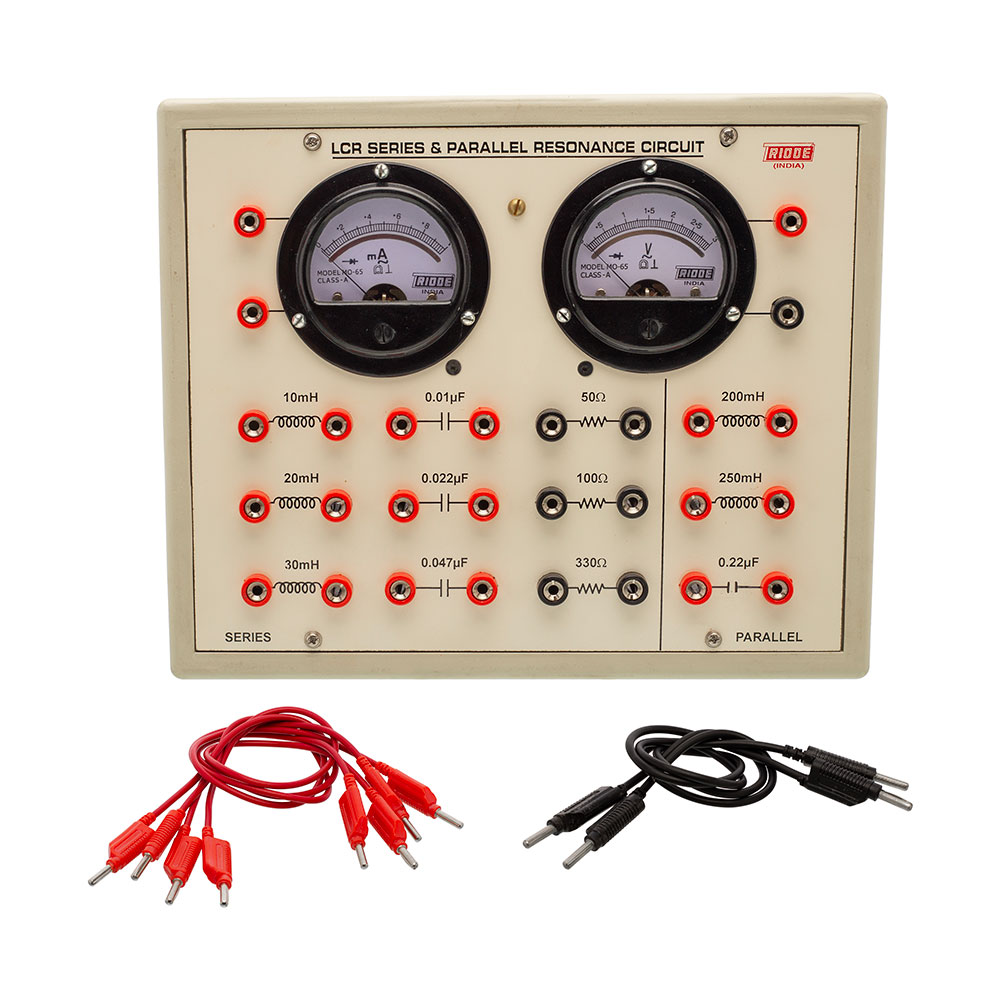

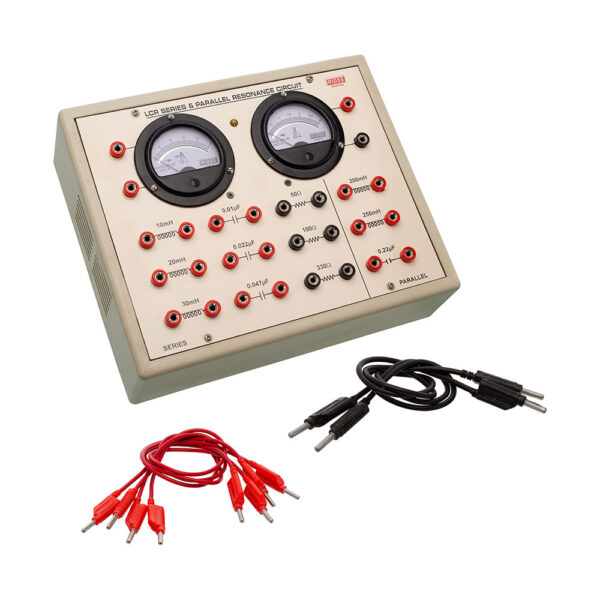

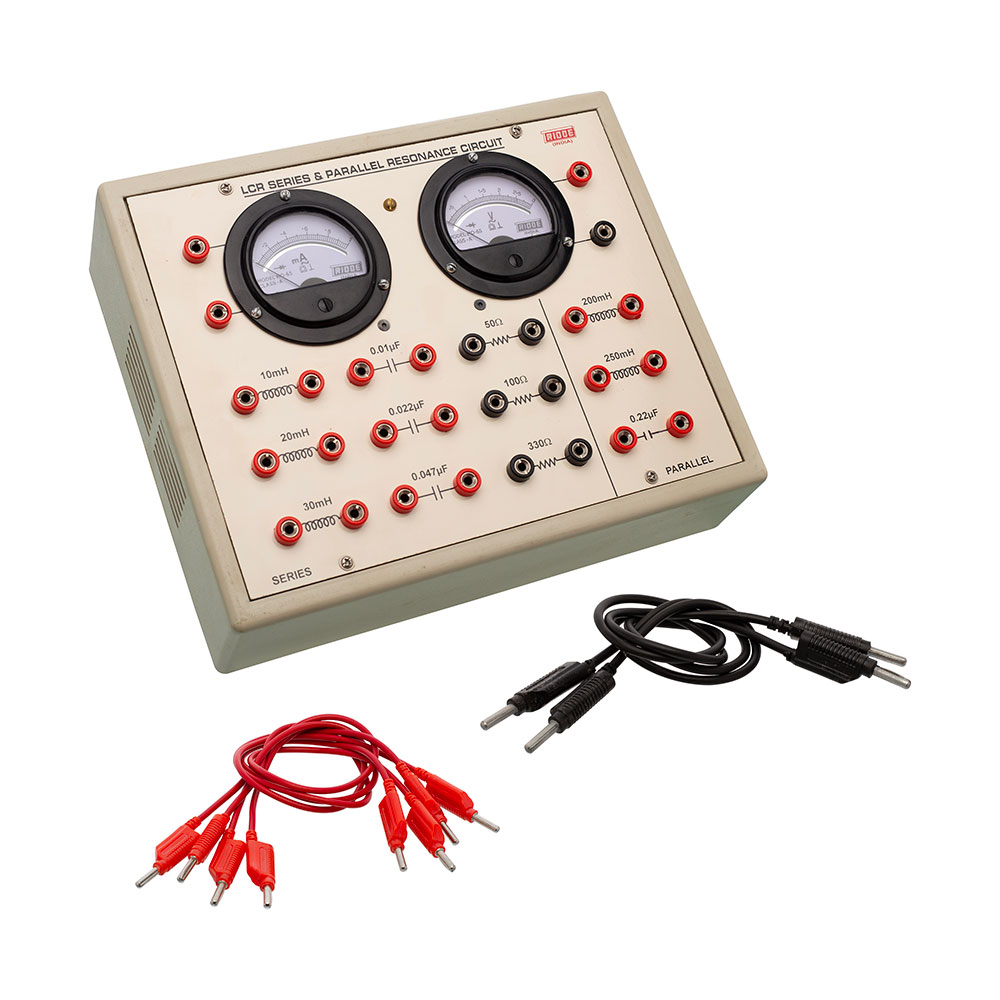

Features: The instrument comprises of 3 Resistances, 3 Capacitors, and 1 Inductance connected inside and connections brought out at Sockets. 2 AC moving coil meters to measure voltage and current.
Optional Acc.: Audio Frequency Function Generator.

PH93035
