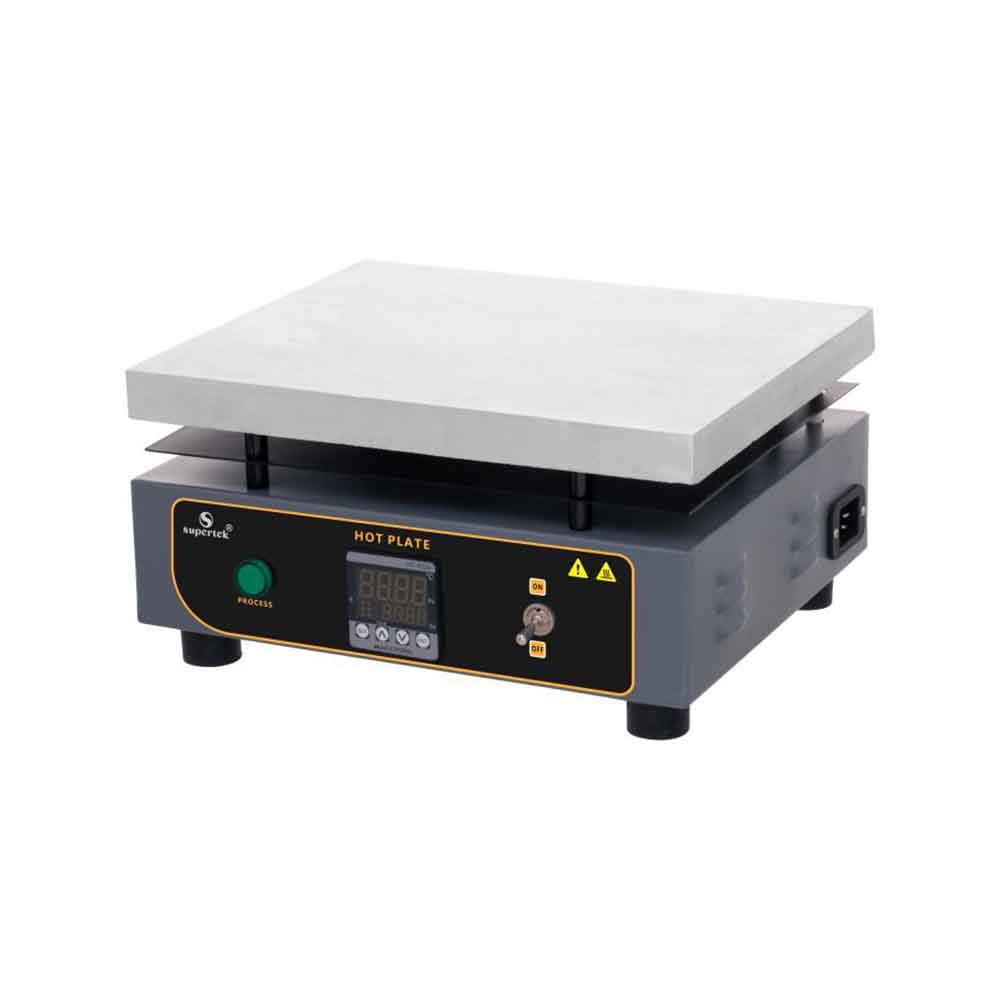

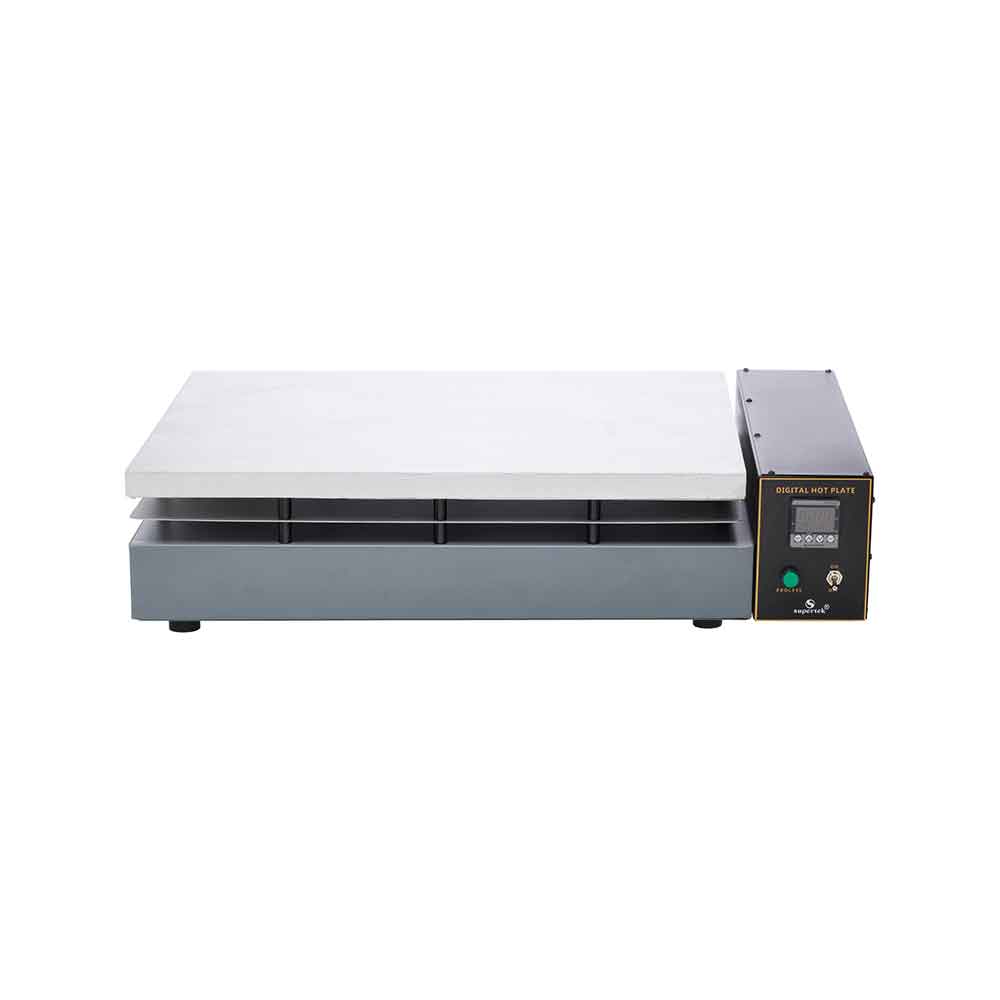

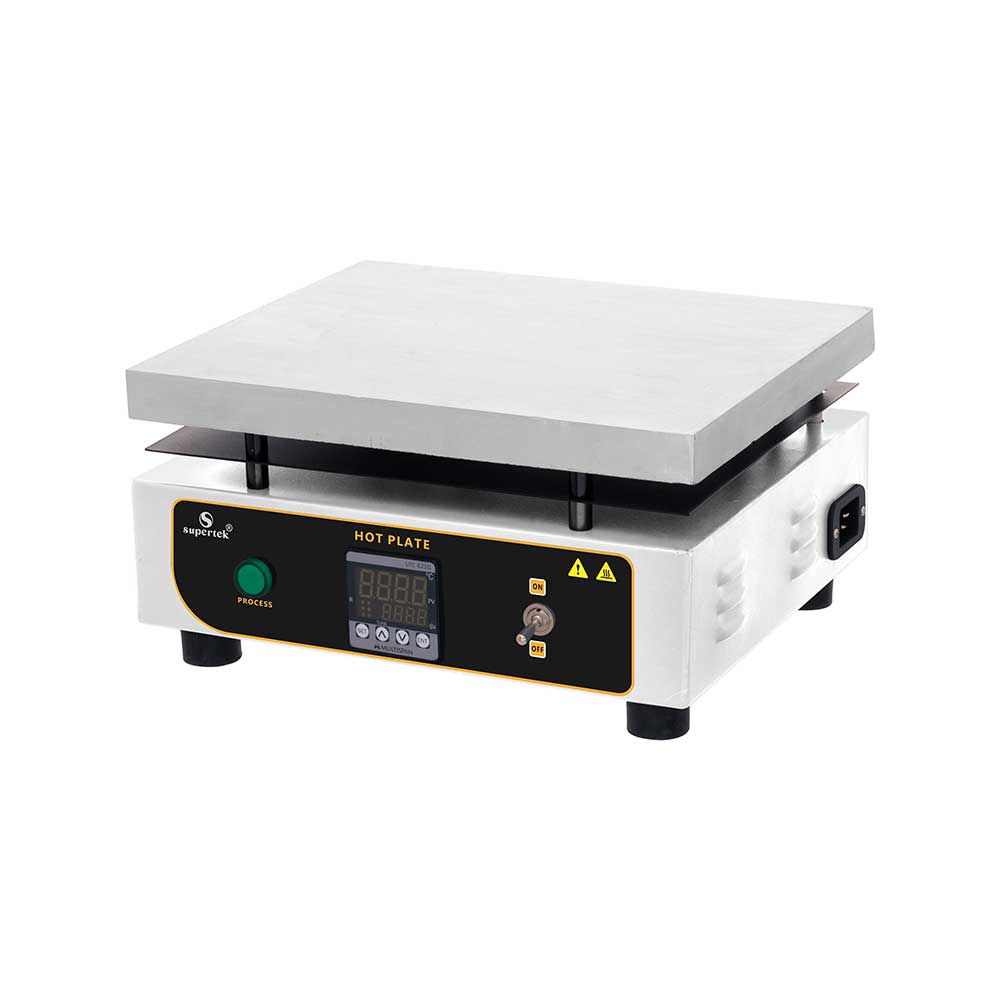

Laboratory Hot Plate, Rectangular, Digital


These rectangular hot plates, with large surface area can be used for heating multiple solutions simultaneously. Insert the external probe in the liquid solution and measure/control the temperature of liquid directly.

Features:

  • For heating multiple solutions simultaneously
  • Measure and control the temperature of liquid solution directly
  • Rectangular shaped, cast iron heating plate
  • Powder coated mild steel body
  • Precise temperature control with PID controller
  • LED display for showing actual and set temperature
  • Temperature probe PT100
  • Includes support rods and clamps
  • With non-slip rubber feet

Technical Specifications:

  • Temperature range: Ambient + 5°C to 350°C, Resolution 0.1°C.
  • Temperature accuracy ± 0.5°C
  • Overload protection
  • Input voltage: 220 V AC ± 10%, 50-60 Hz
  • CE certified
CH11170D

Available Options

Cat. No.Plate SizeRatingQuantity
CH11170D/130x25 cm (12"x10”)1.2 W
CH11170D/240x25 cm (16"x10”)1.2 W
CH11170D/345x30 cm (18"x12”)1.6 W
CH11170D/465 x 56 cm (24''x18'')2.4 W
