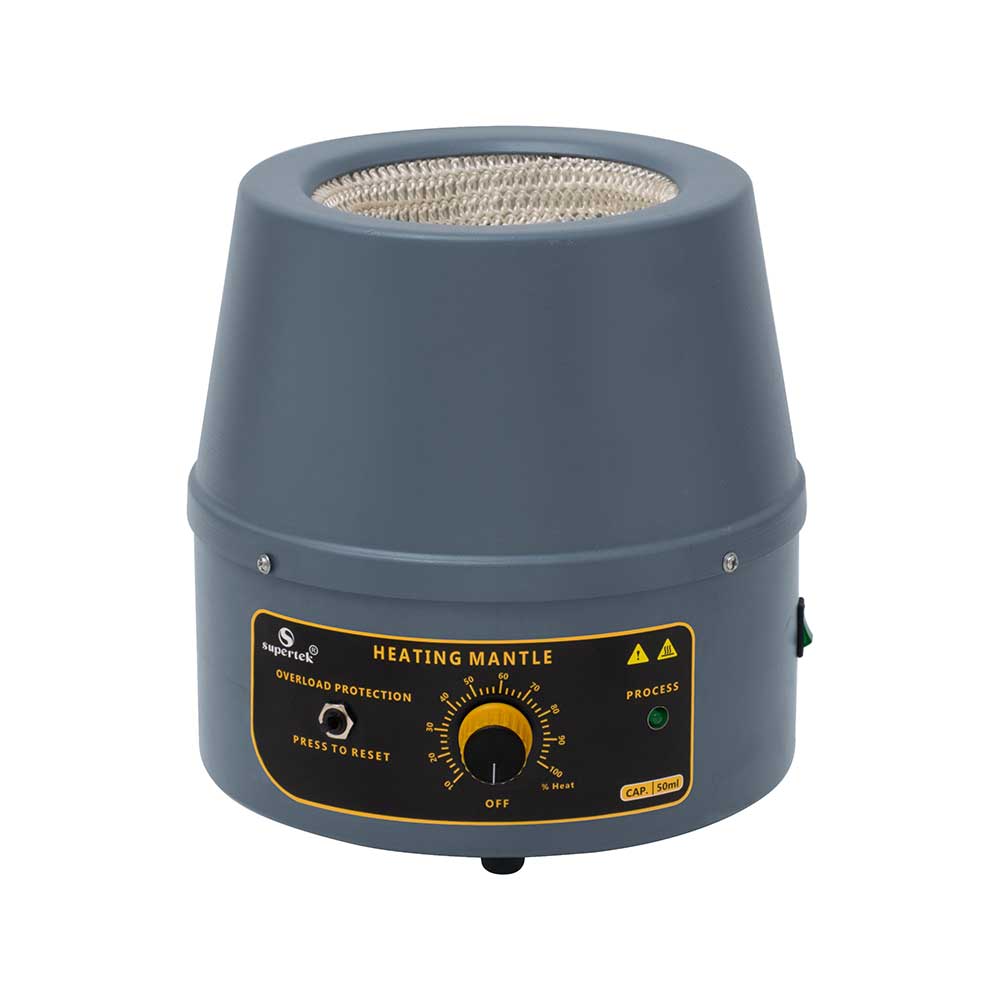

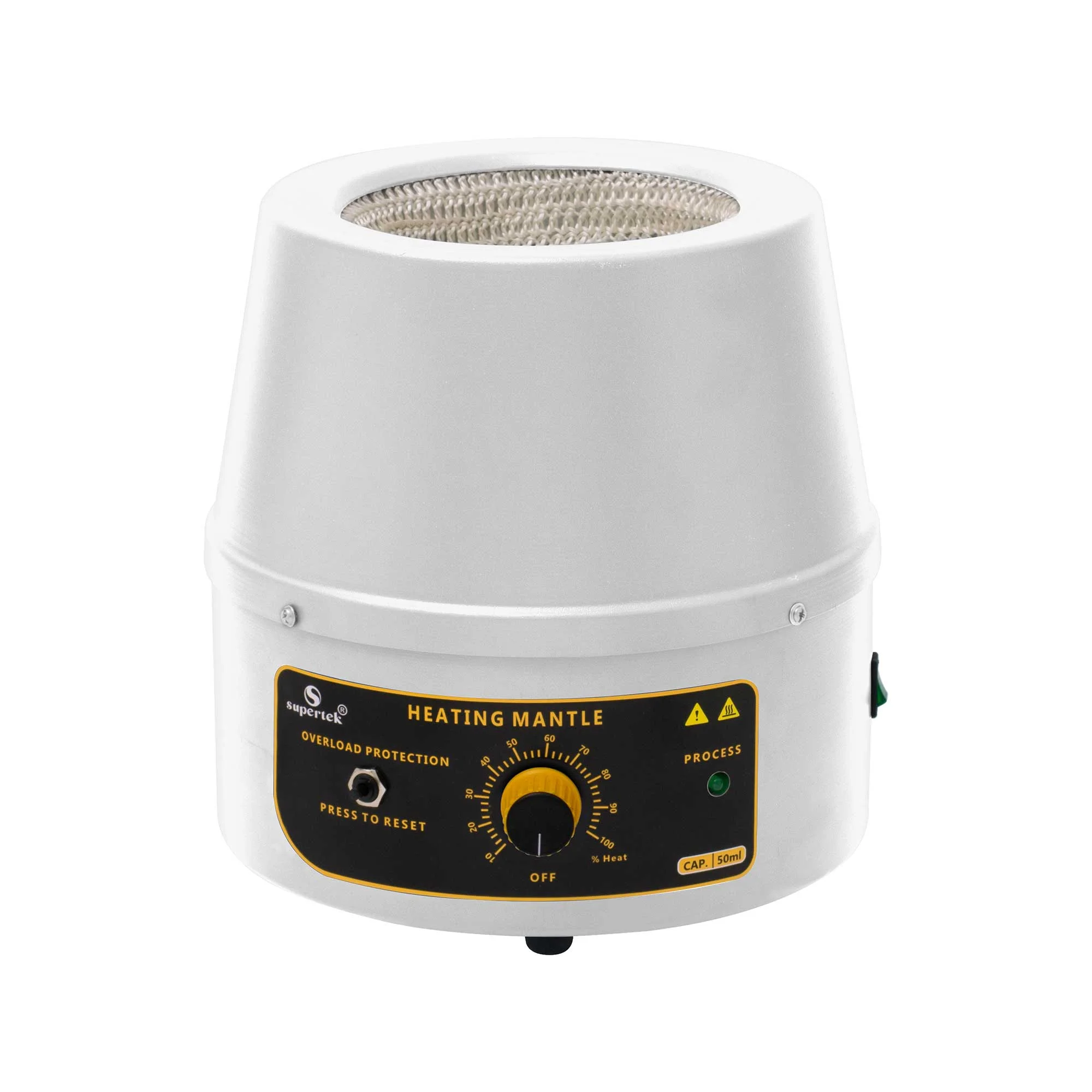

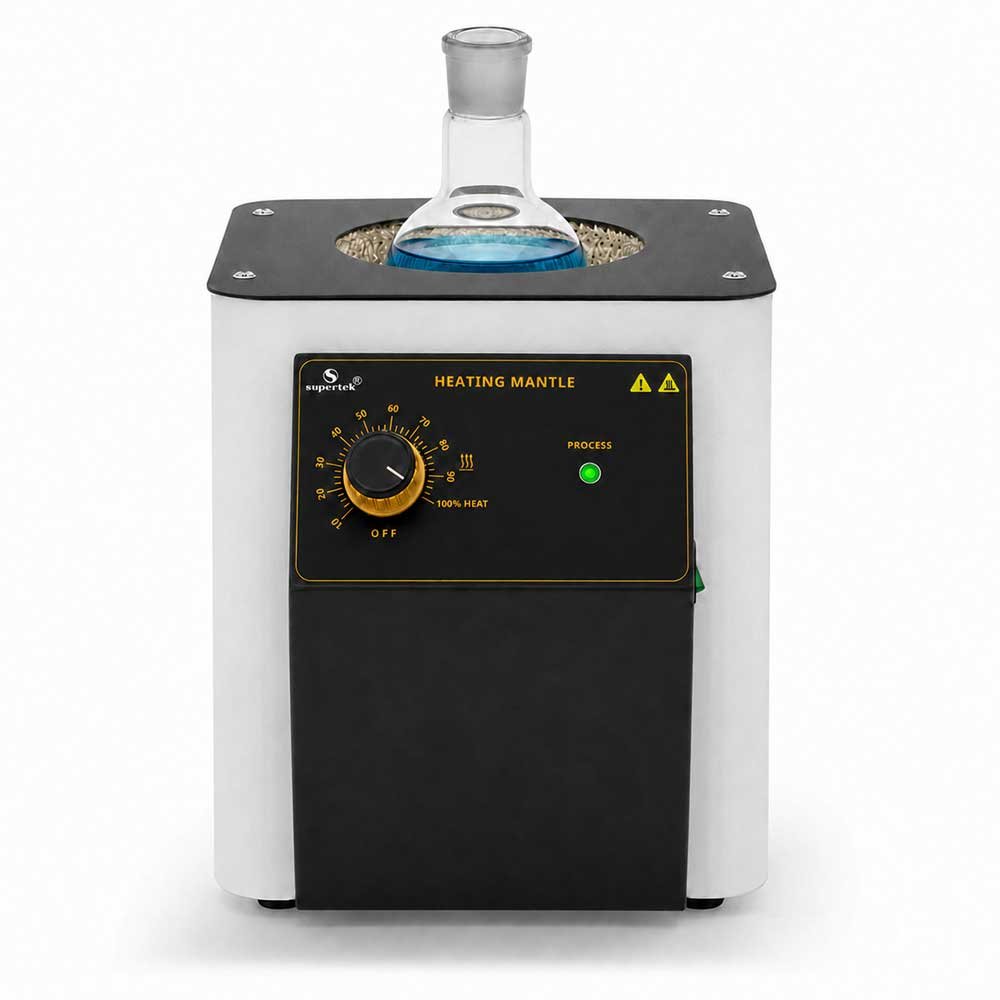

Heating Mantles, Analog


Heating mantles are used to uniformly heat liquids placed in round bottom flasks.

Features:

  • Heat liquid solutions placed in round bottom flasks
  • For use with round bottom, flasks
  • Outer body is made from powder coated rolled aluminium
  • Glass fibre yarn knitted heating element provides uniform heating to flask
  • Heat is controlled with in-built electronic circuit card
  • Includes support rods and boss head
  • With non-slip rubber feet

Technical Specifications:

  • Temperature range of heating surface: Ambient + 5°C to 350°C
  • Overload protection
  • Input voltage: 220 V AC ± 10%, 50-60 Hz
  • CE certified
CH11161

Available Options

Cat. No.Capacity, mlRating, WPack SizeQuantity
CH11161/150601
CH11161/2100601
CH11161/32501501
CH11161/45002001
CH11161/510003001
CH11161/620004501
CH11161/730004501
CH11161/850006001
