Scope of Supply
- Main unit
- Instruction Manual
- Power cord
- Support rod
- Boss head
- Probe clamp
- PTFE-coated magnetic stir bar
Heating Mantles

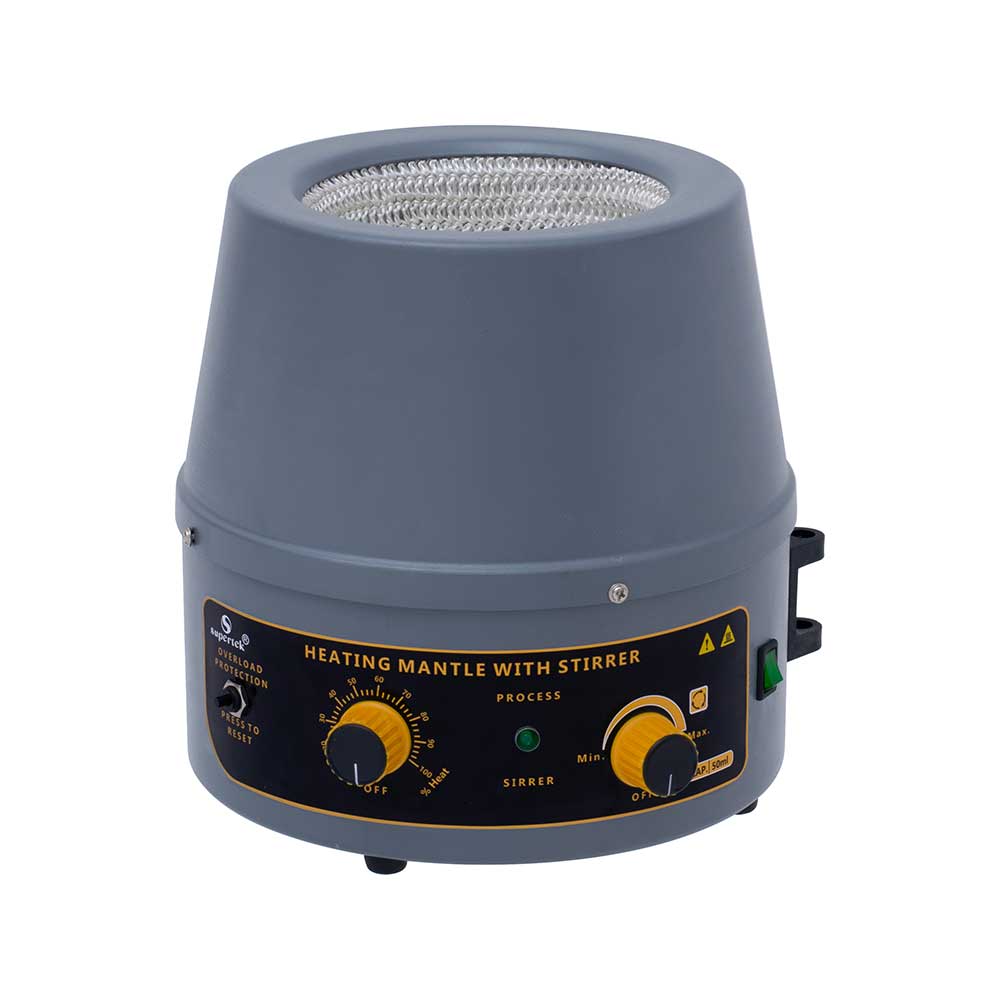

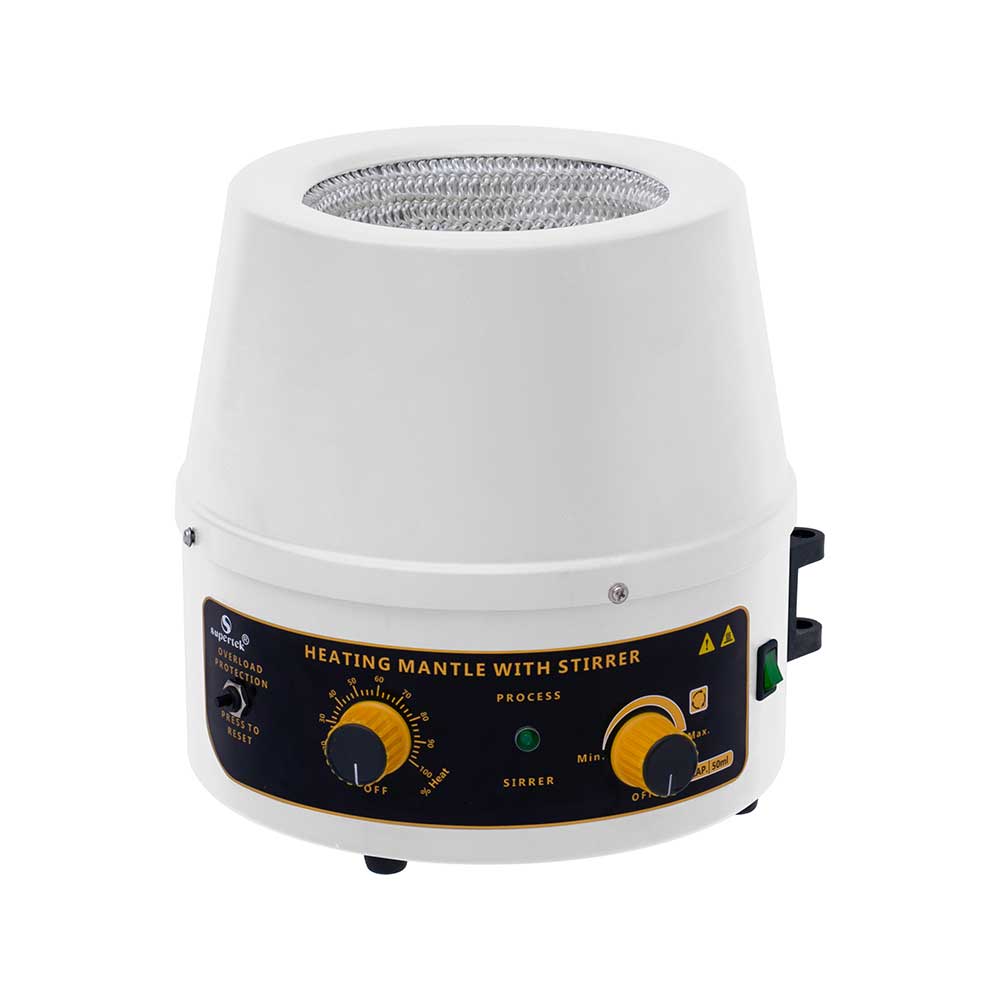

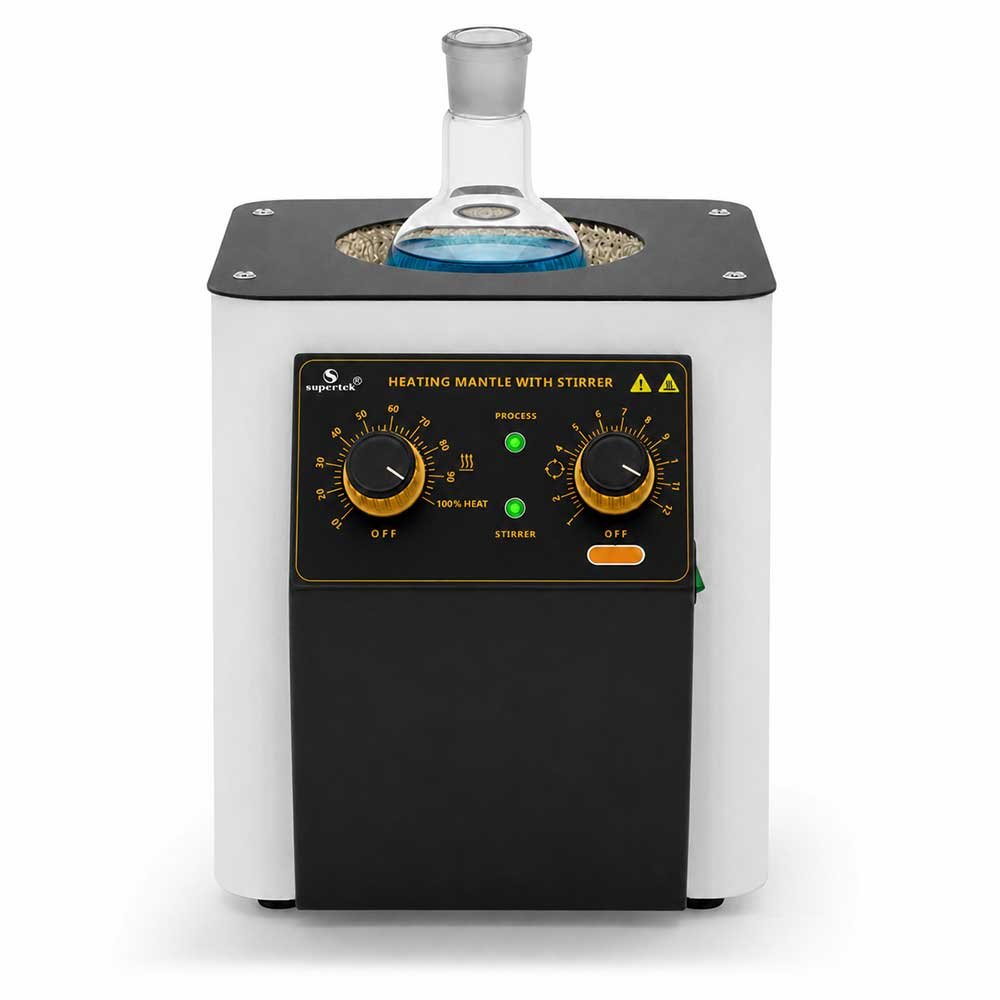

Heating Mantle with Stirrer, Analog
Availability:
In Stock
supertek’s heating mantle with magnetic stirrer combines uniform heating with continuous magnetic stirring in a single unit, ideal for reactions and dissolutions that require simultaneous heating and mixing. Supplied with a robust MS (mild steel) rectangular body.
Features:
- With non-slip rubber feet
- For use with round bottom flasks
- Includes support rods and boss head
- Built-in magnetic stirrer with adjustable stirring speed
- Independent heat control and stirring speed control
- Heat is controlled with an in-built electronic circuit card
- Outer body is made from powder-coated MS (mild steel), rectangular construction
- Glass fibre yarn knitted heating element provides uniform heating to the flask
Technical Specifications:
- CE Marked
- Overload protection
- Input voltage: 220 V AC ± 10%, 50/60 Hz
- Stirring speed: Upto 1200 RPM
- Temperature range of heating surface: Ambient + 5°C to 400°C
- IP Rating: IP20
Note: Heating element cording may be slightly brown in colour due to QC testing.72
CH11172
HMSRT
| Cat. No. | Indent No. | Flask Capacity, ml | Power, W | Stirring Bar | Pack Size | Quantity | |
|---|---|---|---|---|---|---|---|
| HMSRT-A-50 | CH11172/1 | 50 | 60 | Ø6x12mm | 1 | ||
| HMSRT-A-100 | CH11172/2 | 100 | 60 | Ø8x20mm | 1 | ||
| HMSRT-A-250 | CH11172/3 | 250 | 150 | Ø8x20mm | 1 | ||
| HMSRT-A-500 | CH11172/4 | 500 | 200 | Ø9x25mm | 1 | ||
| HMSRT-A-1L | CH11172/5 | 1000 | 300 | Ø9x25mm | 1 | ||
| HMSRT-A-2L | CH11172/6 | 2000 | 450 | Ø9x35mm | 1 | ||
| HMSRT-A-3L | CH11172/7 | 3000 | 450 | Ø9x35mm | 1 | ||
| HMSRT-A-5L | CH11172/8 | 5000 | 600 | Ø9x35mm | 1 |
