Heating Mantles

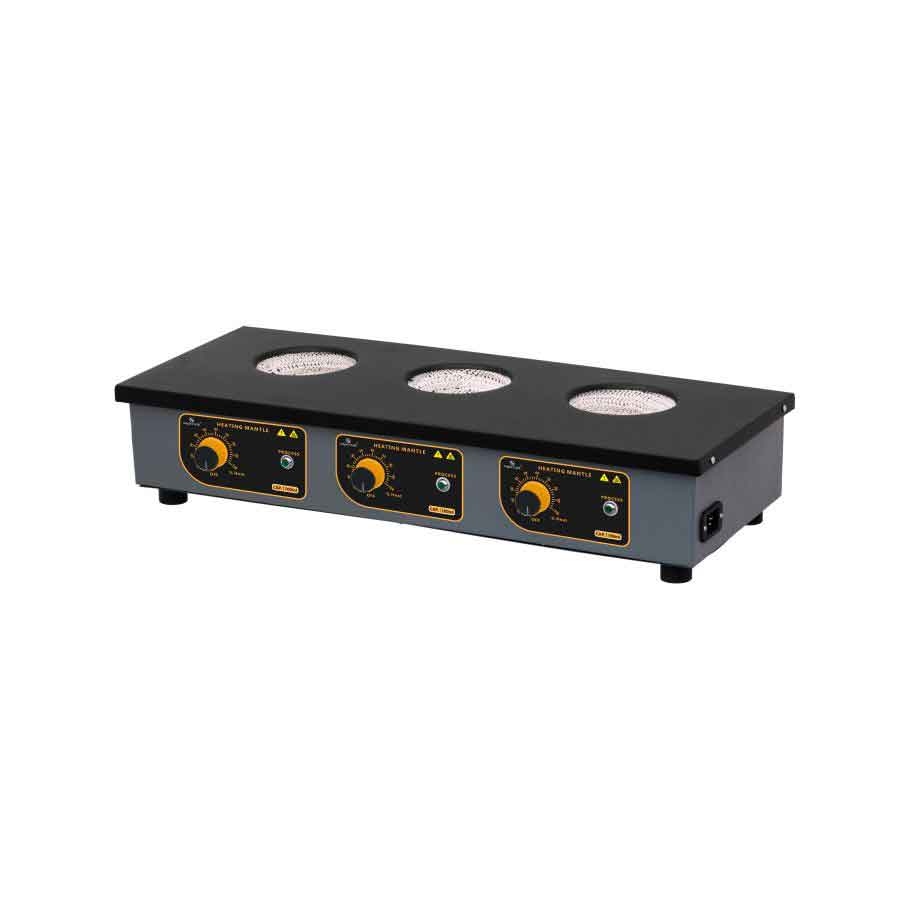

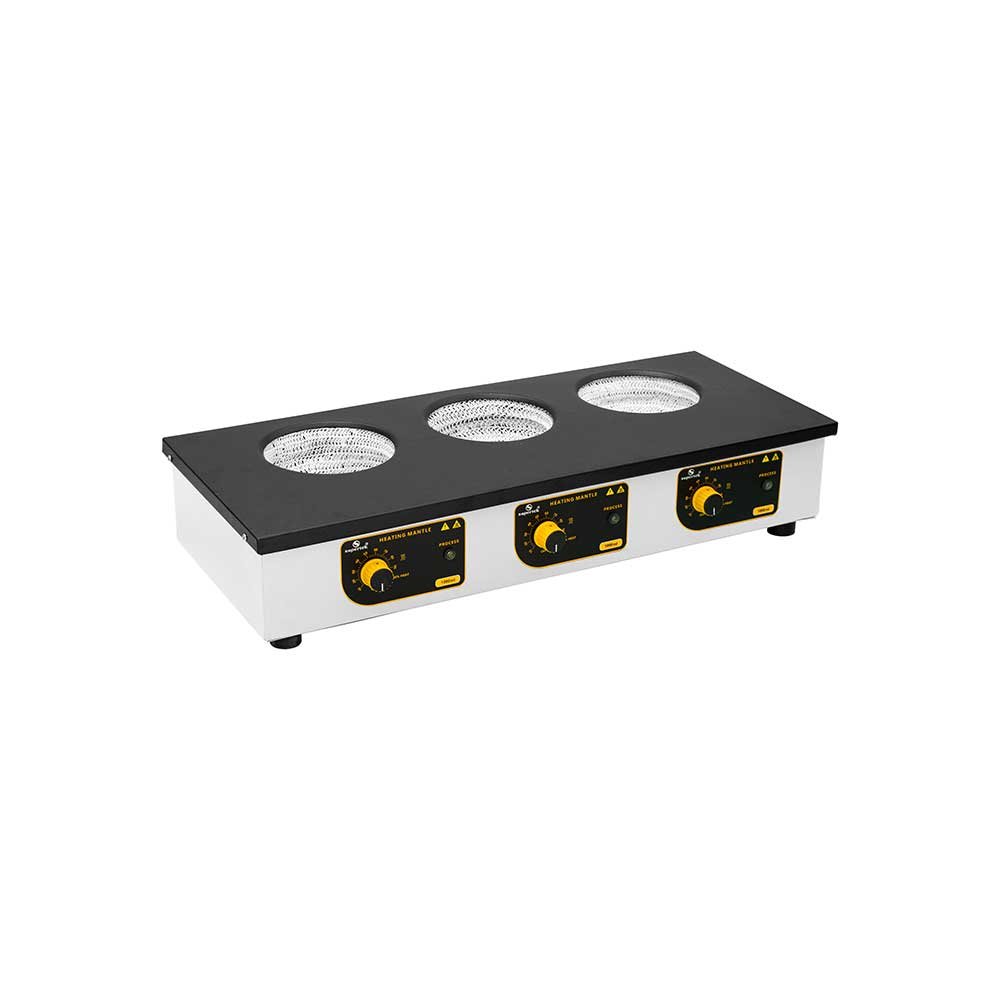

Heating Mantles, Multi-position
Multi position heating mantles are used to heat multiple round bottom flasks simultaneously.
Features:
- Available in 3 and 6 positions
- Space saving design
- Outer body is made of powder coated mild steel
- Glass fibre yarn knitted heating element provides uniform heating to flask
- For use with round bottom flasks
- Each position has an independent heat control knob
- Heat is controlled with in-built electronic circuit card
- Includes support rods and boss heads
- With non-slip rubber feet
Technical Specifications:
- Temperature range of heating surface: Ambient + 5°C to 350°C
- Overload protection
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
Note: The heating element cording may be slightly brown in color. This is a result of testing during the QC process.
CH11162
Available Options
| Cat. No. | No. of positions | Capacity, ml | Rating, W | Pack Size | Quantity | |
|---|---|---|---|---|---|---|
| CH11162A/1 | 3 | 100 | 180 | 1 | ||
| CH11162A/2 | 3 | 250 | 450 | 1 | ||
| CH11162A/3 | 3 | 500 | 600 | 1 | ||
| CH11162A/4 | 3 | 1000 | 900 | 1 | ||
| CH11162B/1 | 6 | 100 | 360 | 1 | ||
| CH11162B/2 | 6 | 250 | 900 | 1 | ||
| CH11162B/3 | 6 | 500 | 1200 | 1 | ||
| CH11162B/4 | 6 | 1000 | 1800 | 1 |
