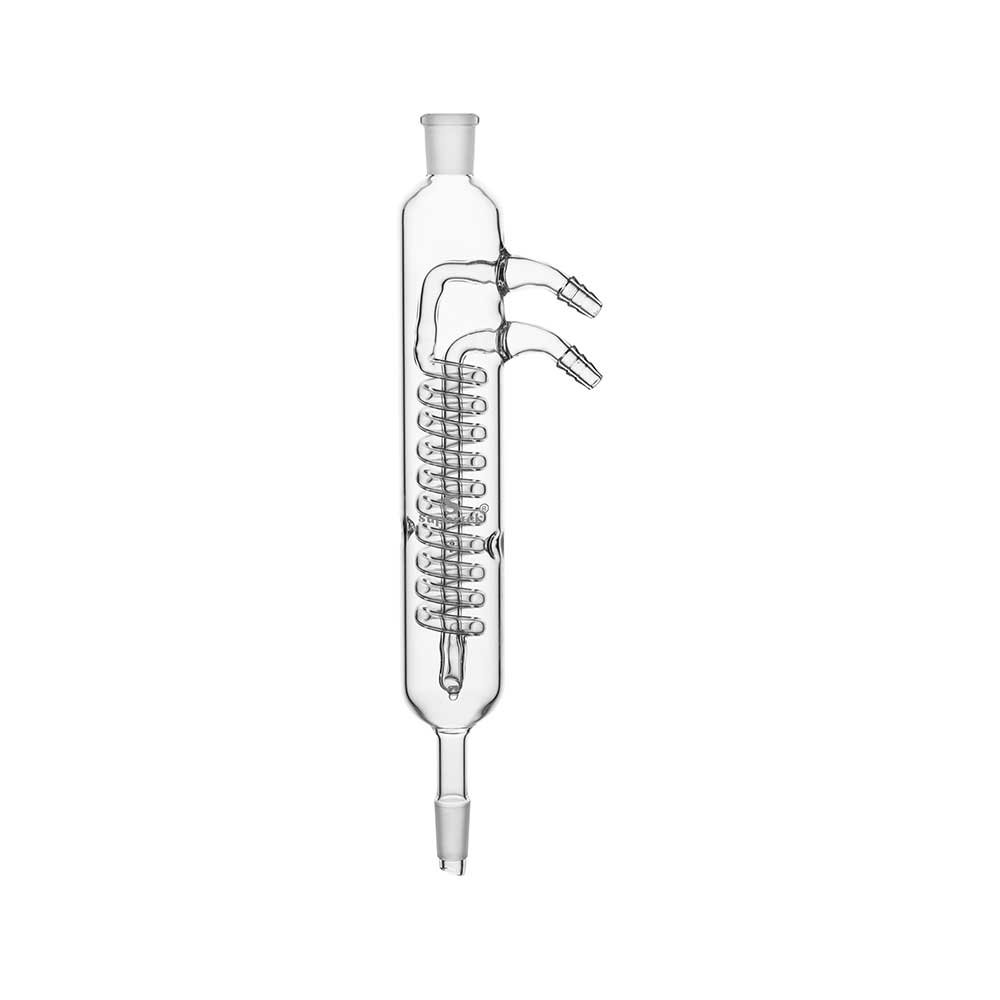

Dimroth Condenser

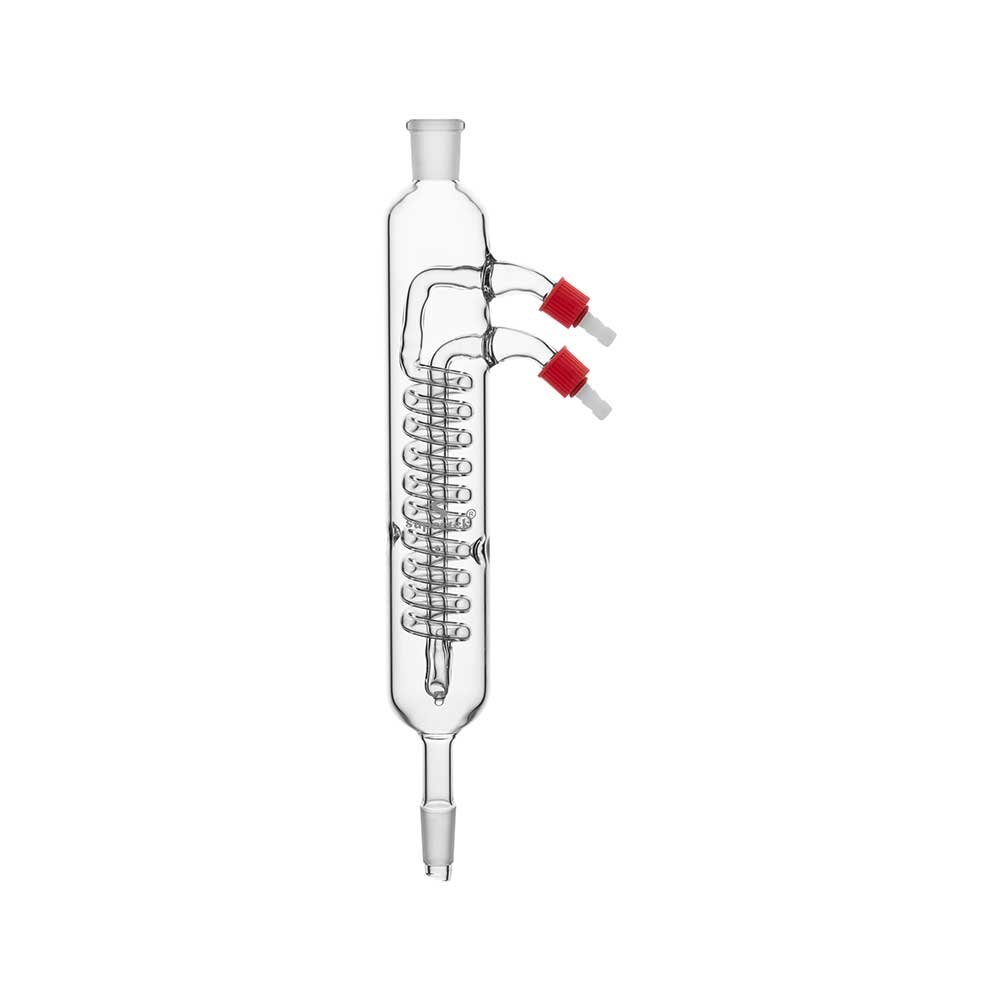

The Condenser Comes With Glass & Plastic Thread Condenser
- Conformity to DIN 12591.
- Similar to the coil condenser with advantage of having that both inlet and outlet pipes at the top.
- There is an internal double spiral through which the coolant travels.
- Dimroth condensers are much more effective than conventional condensers.
* represents Non DIN size
16.152
Available Options
| Cat. No. | Connector | Effective Length, mm | Socket Size | Cone Size | Pack Size | Quantity | |
|---|---|---|---|---|---|---|---|
| 16.152.0005 | Glass | 160 | 14/23 | 14/23 | 1 | ||
| 16.152.0010 | Glass | 160 | 19/26 | 19/26 | 1 | ||
| 16.152.0015 | Glass | 250 | 19/26 | 19/26 | 1 | ||
| 16.152.0020 | Glass | 250 | 24/29 | 24/29 | 1 | ||
| 16.152.0025 | Glass | 250 | 29/32 | 29/32 | 1 | ||
| 16.152.0030* | Glass | 300 | 24/29 | 24/29 | 1 | ||
| 16.152.0035* | Glass | 300 | 29/32 | 29/32 | 1 | ||
| 16.152.0040 | Glass | 400 | 29/32 | 29/32 | 1 | ||
| 16.152.5005 | Screw Thread | 160 | 14/23 | 14/23 | 1 | ||
| 16.152.5010 | Screw Thread | 160 | 19/26 | 19/26 | 1 | ||
| 16.152.5015 | Screw Thread | 250 | 19/26 | 19/26 | 1 | ||
| 16.152.5020 | Screw Thread | 250 | 24/29 | 24/29 | 1 | ||
| 16.152.5025 | Screw Thread | 250 | 29/32 | 29/32 | 1 | ||
| 16.152.5030* | Screw Thread | 300 | 24/29 | 24/29 | 1 | ||
| 16.152.5035* | Screw Thread | 300 | 29/32 | 29/32 | 1 | ||
| 16.152.5040 | Screw Thread | 400 | 29/32 | 29/32 | 1 |
