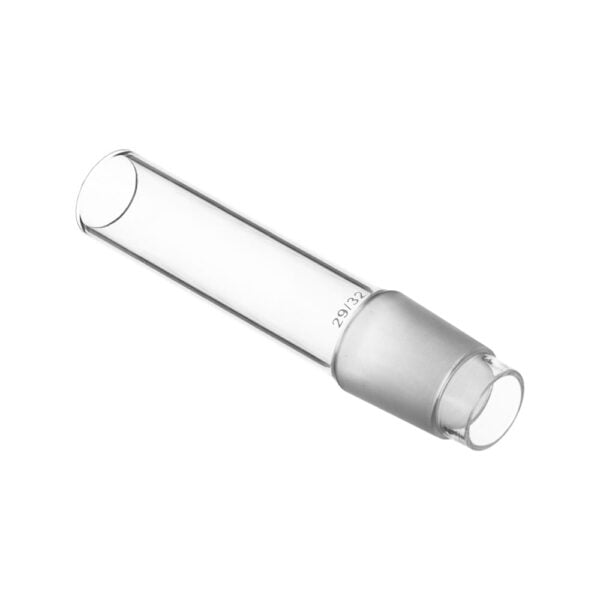

Cone with Tip , Medium Length


Conformity to ISO 383 / DIN 12249 Standards.

  • Product code is 14.108

14.108

Product # Cone size Approx o d of tube mm Total length mm Pack sizeQuantityAdd To Enquiry
14.108.0005 7/16 6 120±10 12
14.108.0010 10/19 8 120±10 12
14.108.0015 12/21 9 120±10 12
14.108.0020 14/23 13 120±10 12
14.108.0025 19/26 16 125±10 12
14.108.0030 24/29 22 135±15 12
14.108.0035 29/32 26 135±15 12
14.108.0040 34/35 30 150±15 12
14.108.0045 * 40/38 36 135±15 12
14.108.0050 45/40 40 150±15 12
14.108.0055 * 50/42 45 150±15 12
14.108.0060 * 55/44 50 150±15 12

Conformity to ISO 383 / DIN 12249 Standards.

  • Product code is 14.108

* represents Non DIN size

SKU: 14.108 Category:
Cone Size

7/16, 10/19, 12/21, 14/23, 19/26, 24/29, 29/32, 34/35, 40/38, 45/40, 50/42, 55/44

Approx.o.d.of tube , mm

6, 8, 9, 13, 16, 22, 26, 30, 36, 40, 45, 50

Total Length , mm

120±10, 125±10, 135±15, 150±15

pack-size
