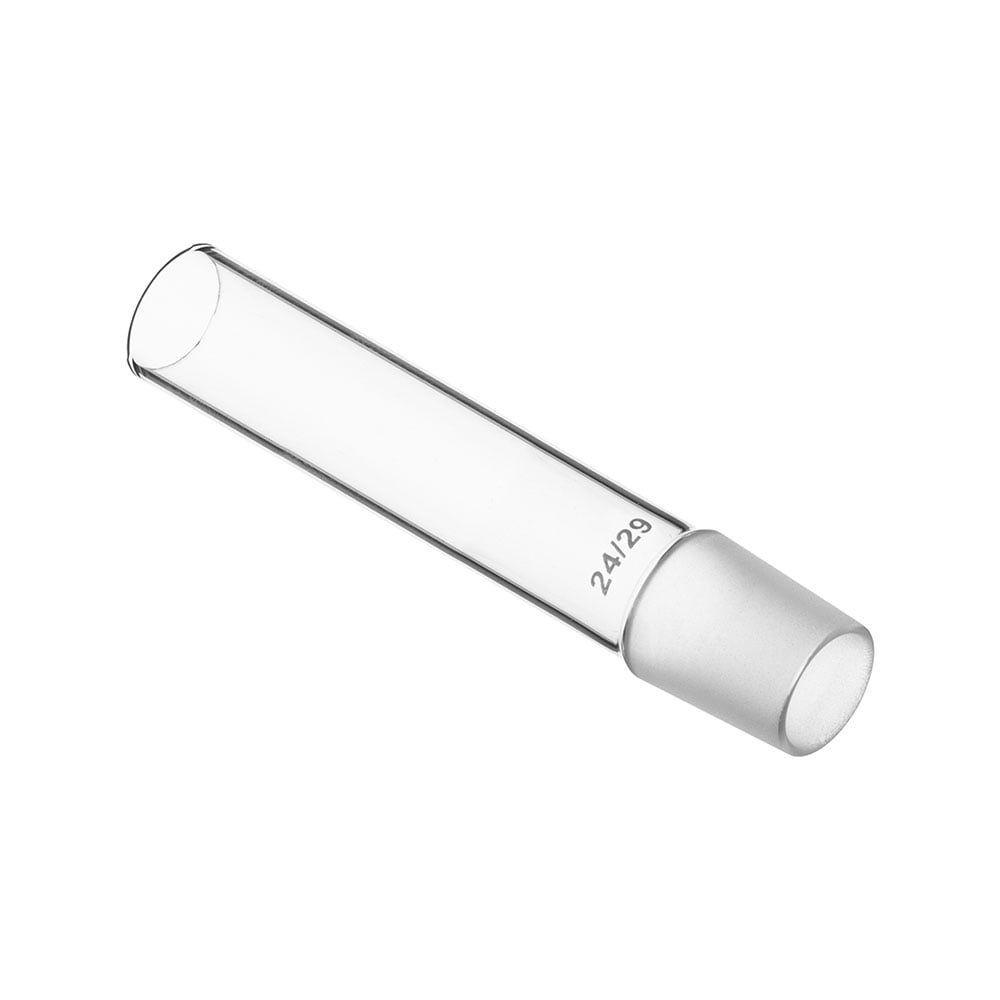

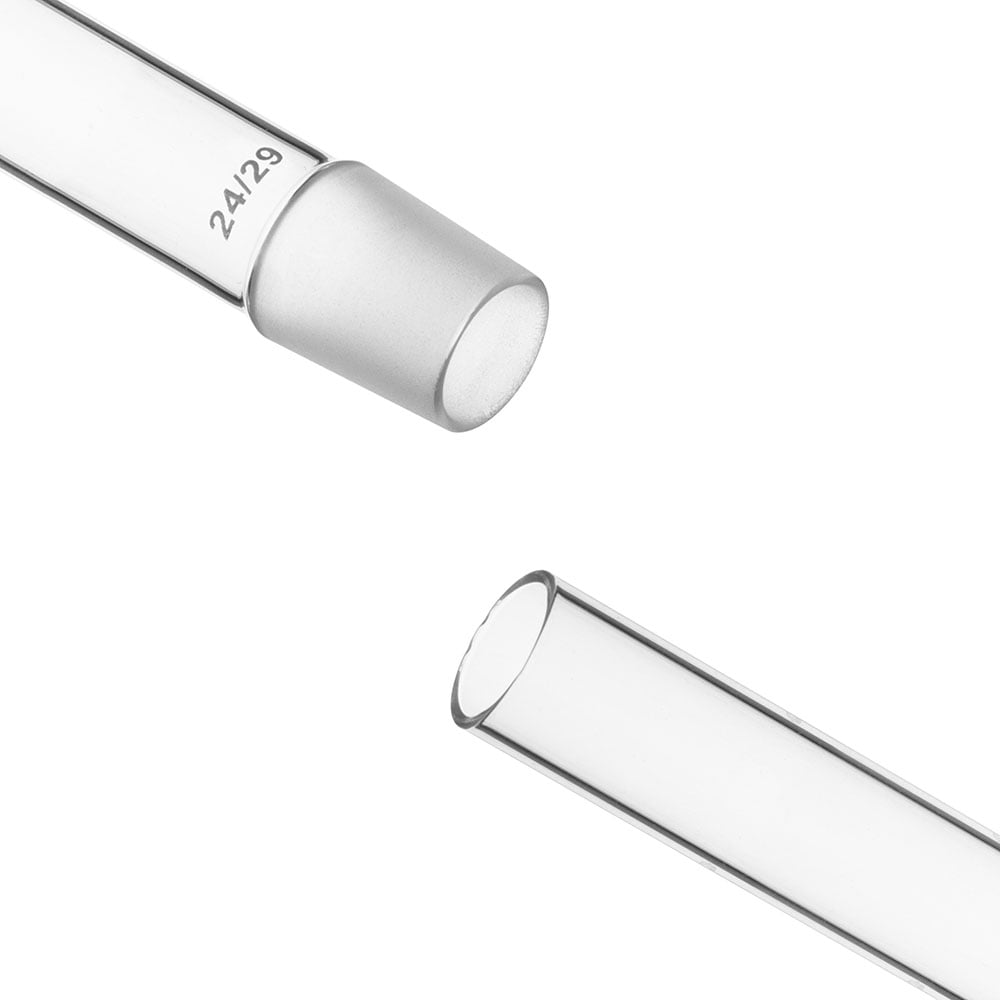

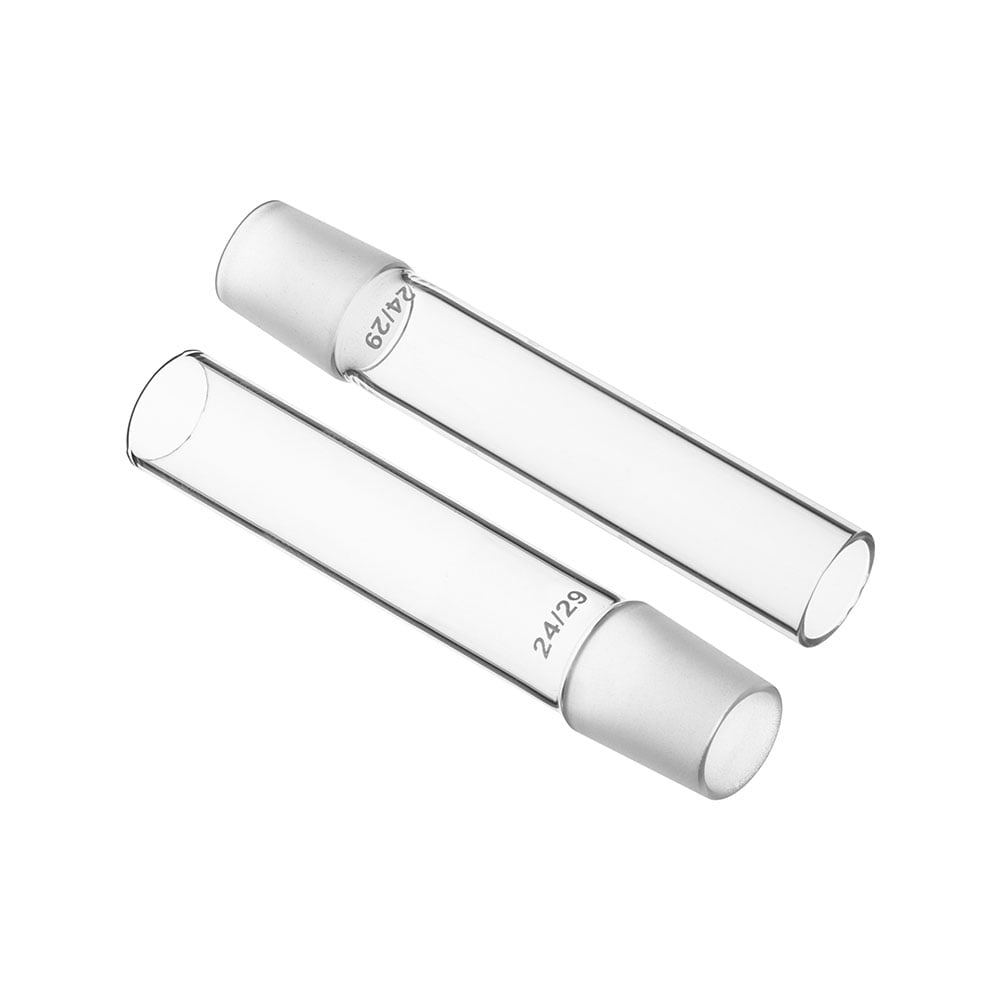

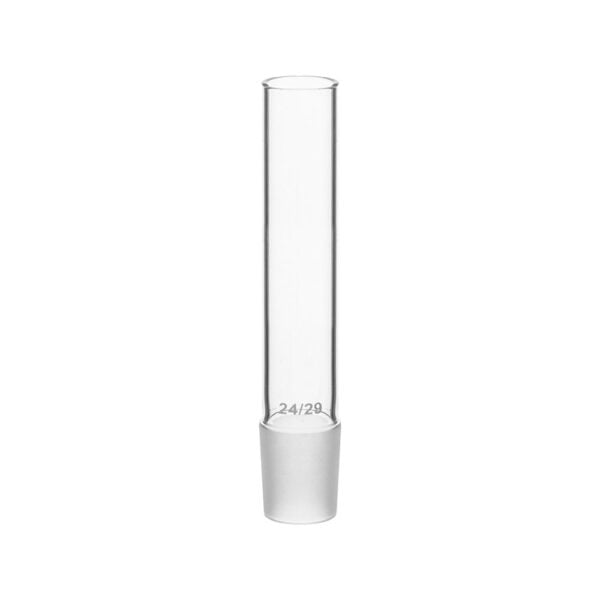

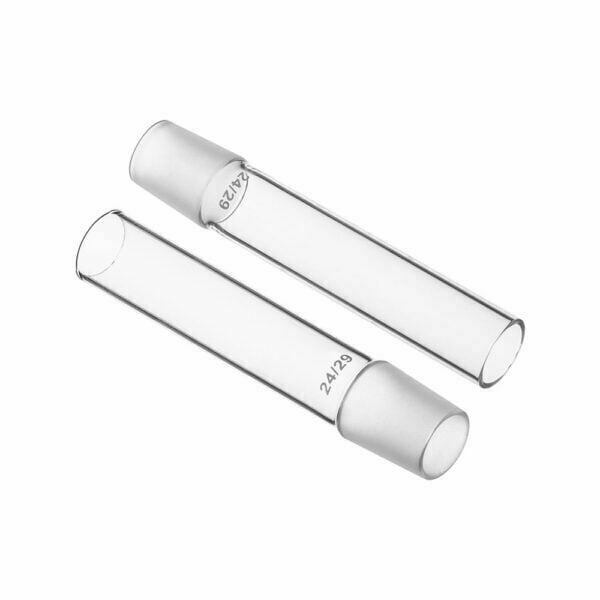

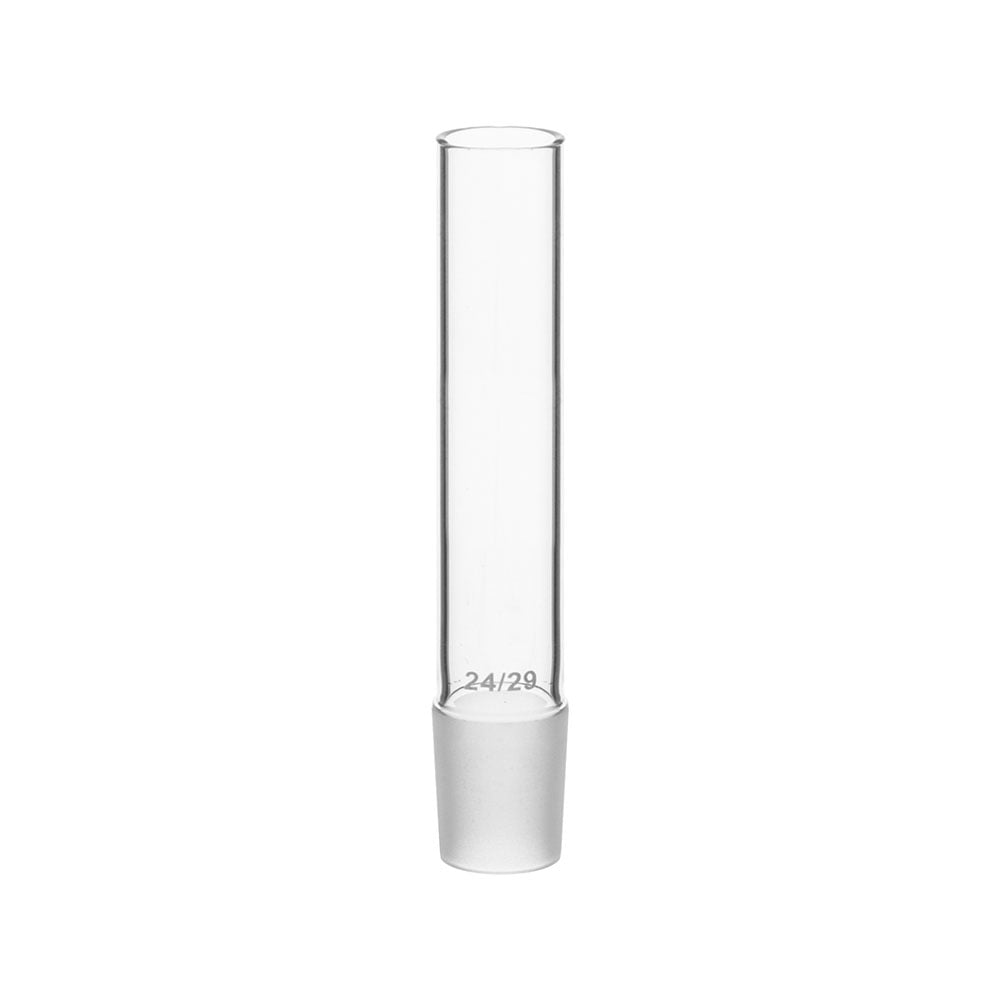

Cone Single, Medium Length


Conformity to ISO 383 / DIN 12249 Standards.

  • Product code is 14.104

14.104

Product # Cone size Approx o d of tube mm Total length mm Pack sizeQuantityAdd To Enquiry
14.104.0005 7/16 6 120±10 12
14.104.0010 10/19 8 120±10 12
14.104.0015 12/21 9 120±10 12
14.104.0020 14/23 13 120±10 12
14.104.0025 19/26 16 120±15 12
14.104.0030 24/29 22 120±15 12
14.104.0035 29/32 26 120±15 12
14.104.0040 34/35 30 120±15 12
14.104.0045 * 40/38 36 120±15 12
14.104.0050 45/40 40 120±15 12
14.104.0055 * 50/42 45 120±15 12
14.104.0060 * 55/44 50 120±15 12

Conformity to ISO 383 / DIN 12249 Standards.

  • Product code is 14.104

* represents Non DIN size

SKU: 14.104 Category:
Cone Size

7/16, 10/19, 12/21, 14/23, 19/26, 24/29, 29/32, 34/35, 40/38, 45/40, 50/42, 55/44

Approx. o.d. of tube , mm

6, 8, 9, 13, 16, 22, 26, 30, 36, 40, 45, 50

Total Length , mm

120±10, 120±15
