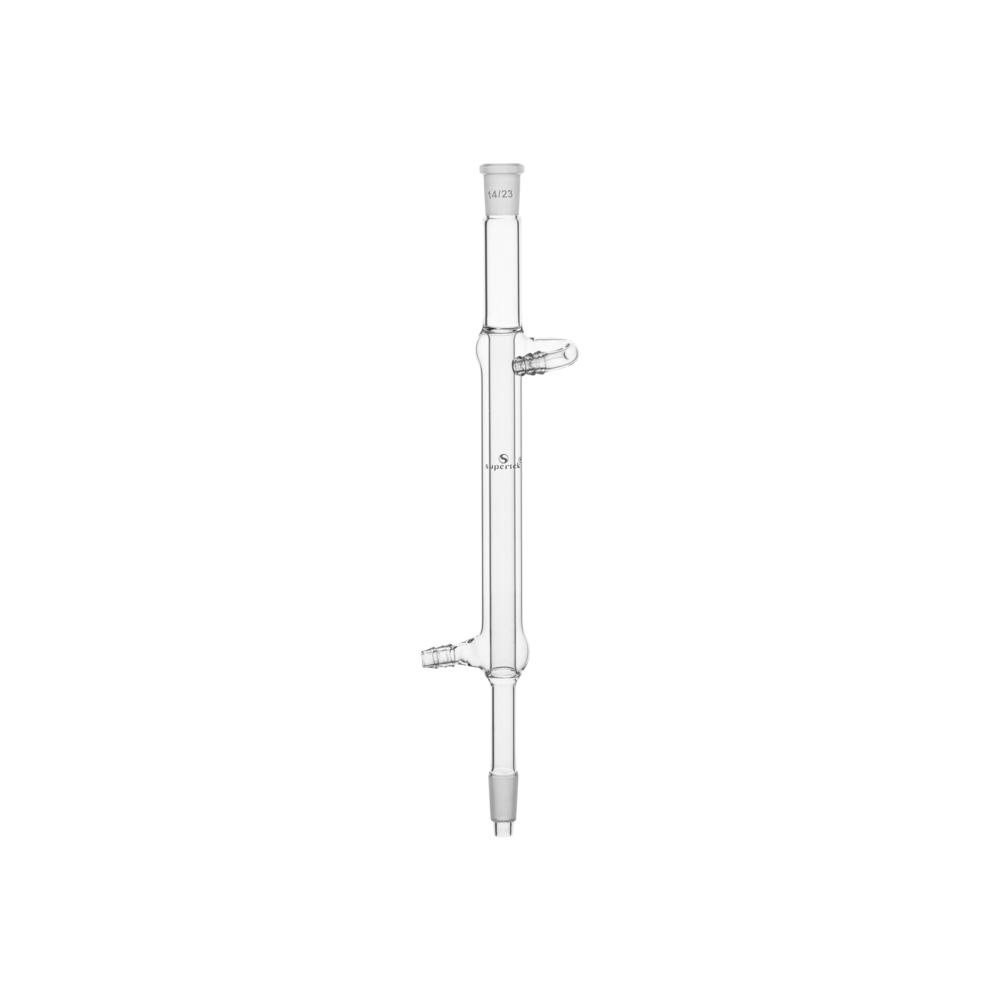

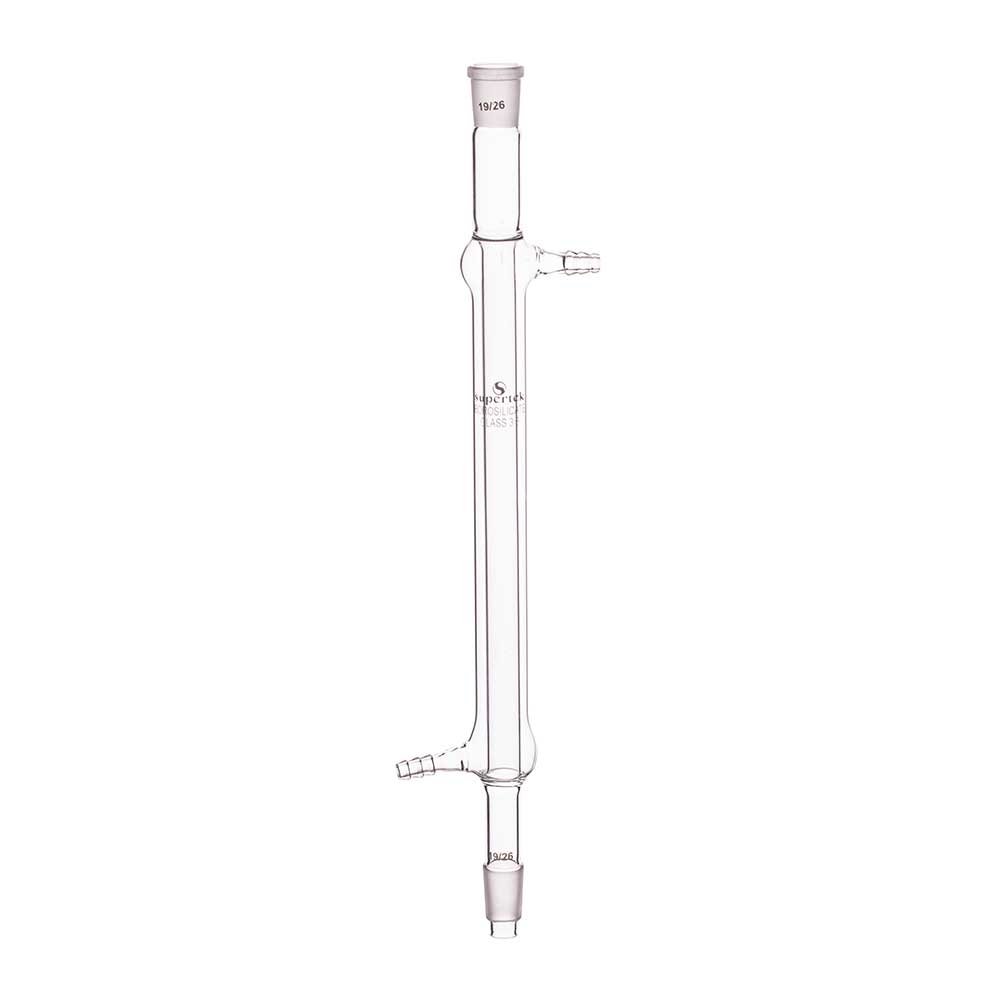

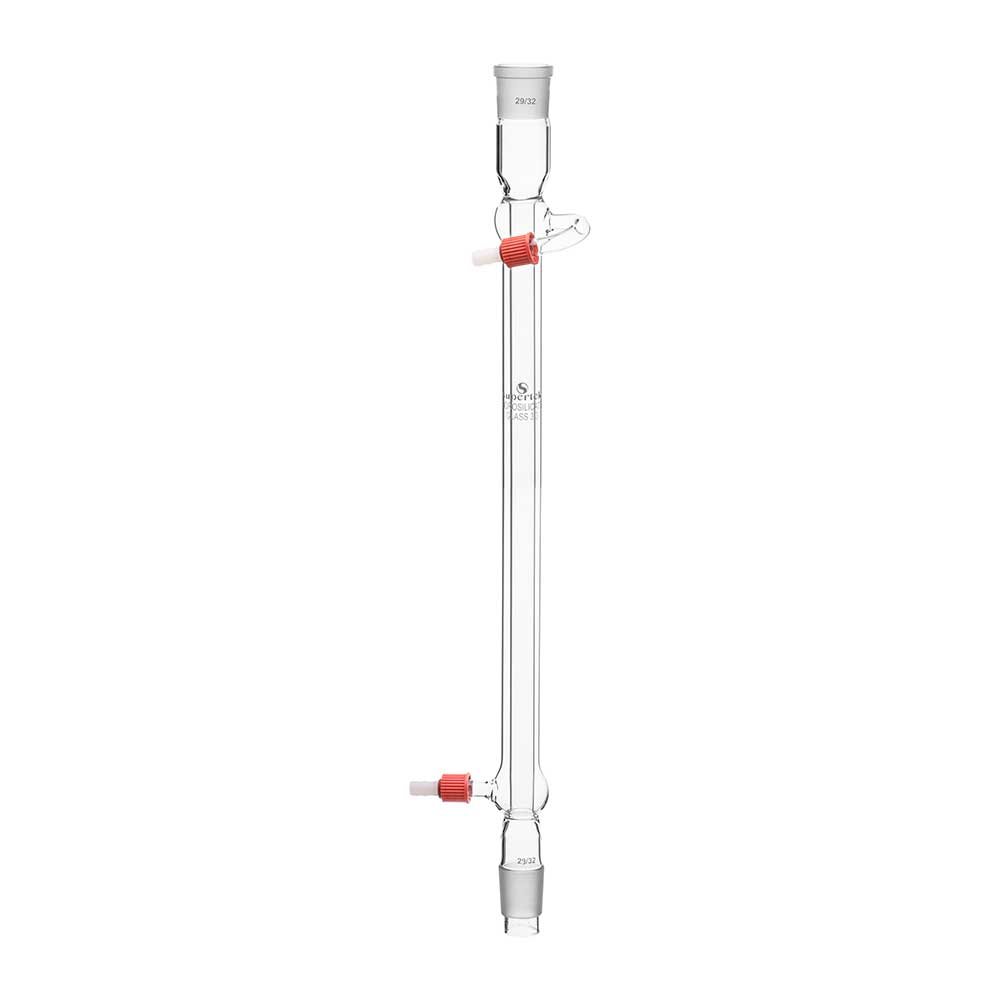

Condenser, Liebig


  • Conformity To Din 12576.
  • Elementary Design
  • Lighter wall of the inner tube facilitates effective heat transfer
  • Designed with standard joints providing universal fitting
  • Available with Glass & Plastic hose connector
  • Detachable plastic screw thread connectors provide easy and safe attachment of flexible tubing.
  • Product code is 16.104

16.104

Product # Connector Effective length mm Socket size Cone size Pack sizeQuantityAdd To Enquiry
16.104.0005* Glass 200 --- --- 1
16.104.0010* Glass 250 --- --- 1
16.104.0015* Glass 300 --- --- 1
16.104.0020* Glass 400 --- --- 1
16.104.0025* Glass 450 --- --- 1
16.104.0030* Glass 500 --- --- 1
16.104.0035 Glass 160 14/23 14/23 1
16.104.0040 Glass 250 19/26 19/26 1
16.104.0045 Glass 250 24/29 24/29 1
16.104.0050* Glass 250 29/32 29/32 1
16.104.0055* Glass 300 24/29 24/29 1
16.104.0060* Glass 300 29/32 29/32 1
16.104.0075* Glass 400 19/26 19/26 1
16.104.0080 Glass 400 24/29 24/29 1
16.104.0085 Glass 400 29/32 29/32 1
16.104.5005* Screw Thread 200 --- --- 1
16.104.5010* Screw Thread 250 --- --- 1
16.104.5015* Screw Thread 300 --- --- 1
16.104.5020* Screw Thread 400 --- --- 1
16.104.5025* Screw Thread 450 --- --- 1
16.104.5030* Screw Thread 500 --- --- 1
16.104.5035 Screw Thread 160 14/23 14/23 1
16.104.5040 Screw Thread 250 19/26 19/26 1
16.104.5045 Screw Thread 250 24/29 24/29 1
16.104.5050* Screw Thread 250 29/32 29/32 1
16.104.5055* Screw Thread 300 24/29 24/29 1
16.104.5060* Screw Thread 300 29/32 29/32 1
16.104.5075* Screw Thread 400 19/26 19/26 1
16.104.5080 Screw Thread 400 24/29 24/29 1
16.104.5085 Screw Thread 400 29/32 29/32 1
  • Conformity To Din 12576.
  • Elementary Design
  • Lighter wall of the inner tube facilitates effective heat transfer
  • Designed with standard joints providing universal fitting
  • Available with Glass & Plastic hose connector
  • Detachable plastic screw thread connectors provide easy and safe attachment of flexible tubing.
  • Product code is 16.104



* represents Non DIN sizes

SKU: 16.104 Category:
Connector

,

Effective Length mm

200, 250, 300, 400, 450, 500, 160, 250, 300, 400

Socket Size

—, 14/23, 19/26, 24/29, 29/32

Cone Size

—, 14/23, 19/26, 24/29, 29/32

pack-size
