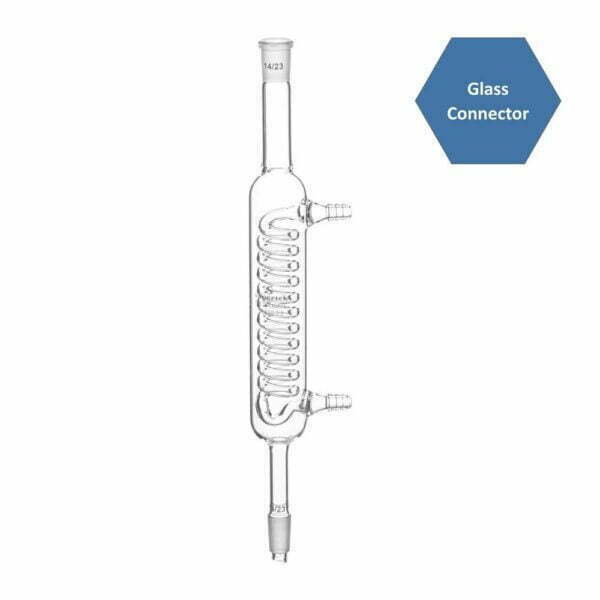

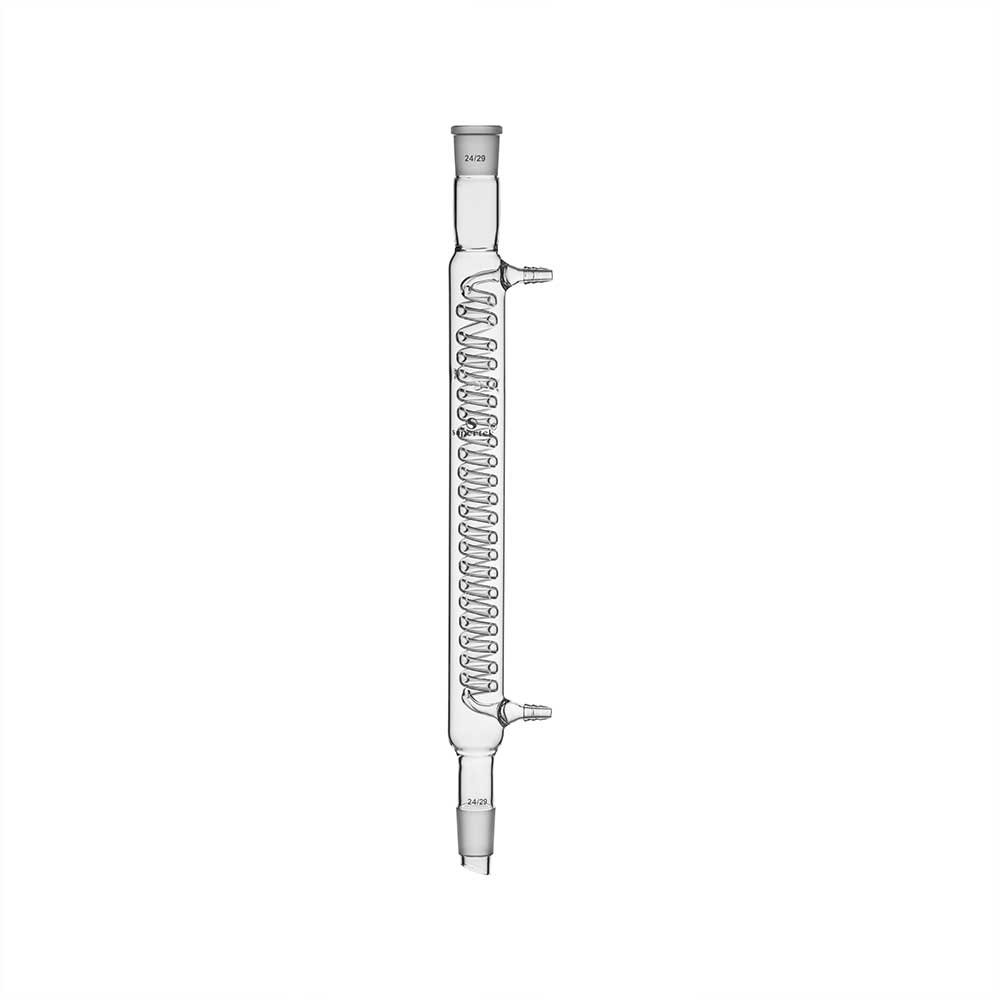

Condenser Coil Graham (Jacket Distillate Type)

The coiled Condensation tubes provide greater surface area for cooling.
Designed with standard joints providing universal fitting.
Available with glass & Plastic hose connector.

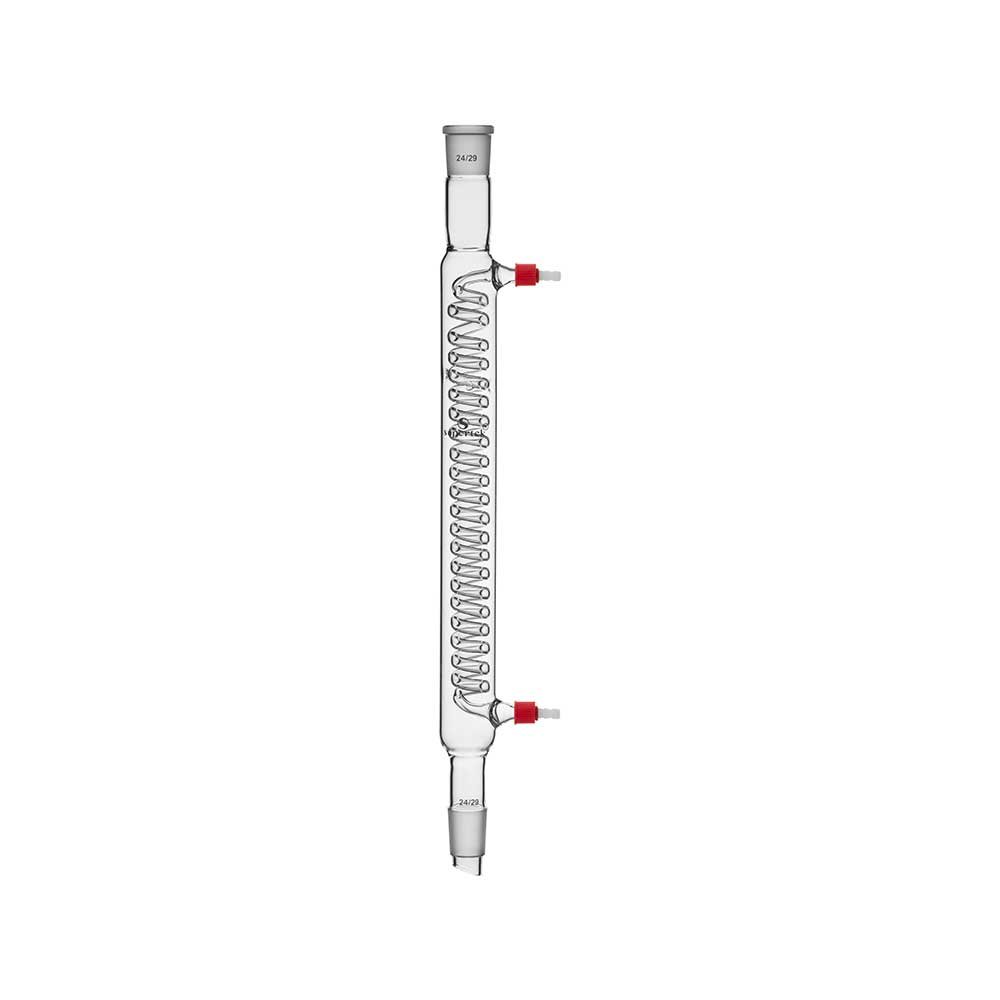

Detachable plastic screw thread connectors provide easy and safe attachment of flexible tubing.

16.112

Available Options

Cat. No.	Connector	Effective Length, mm	Socket Size	Cone Size	Pack Size
16.112.0005	Glass	200	---	---	1
16.112.0010	Glass	300	---	---	1
16.112.0015	Glass	400	---	---	1
16.112.0020	Glass	500	---	---	1
16.112.0025	Glass	160	14/23	14/23	1
16.112.0030	Glass	160	19/26	19/26	1
16.112.0035	Glass	250	19/26	19/26	1
16.112.0040	Glass	250	24/29	24/29	1
16.112.0045	Glass	300	19/26	19/26	1
16.112.0050	Glass	300	24/29	24/29	1
16.112.0055	Glass	400	24/29	24/29	1
16.112.0060	Glass	500	24/29	24/29	1
16.112.0065	Glass	500	34/35	34/35	1
16.112.0070	Glass	600	34/35	34/35	1
16.112.5005	Screw Thread	200	---	---	1
16.112.5010	Screw Thread	300	---	---	1
16.112.5015	Screw Thread	400	---	---	1
16.112.5020	Screw Thread	500	---	---	1
16.112.5025	Screw Thread	160	14/23	14/23	1
16.112.5030	Screw Thread	160	19/26	19/26	1
16.112.5035	Screw Thread	250	19/26	19/26	1
16.112.5040	Screw Thread	250	24/29	24/29	1
16.112.5045	Screw Thread	300	19/26	19/26	1
16.112.5050	Screw Thread	300	24/29	24/29	1
16.112.5055	Screw Thread	400	24/29	24/29	1
16.112.5060	Screw Thread	500	24/29	24/29	1
16.112.5065	Screw Thread	500	34/35	34/35	1
16.112.5070	Screw Thread	600	34/35	34/35	1
