Distillation Apparatus

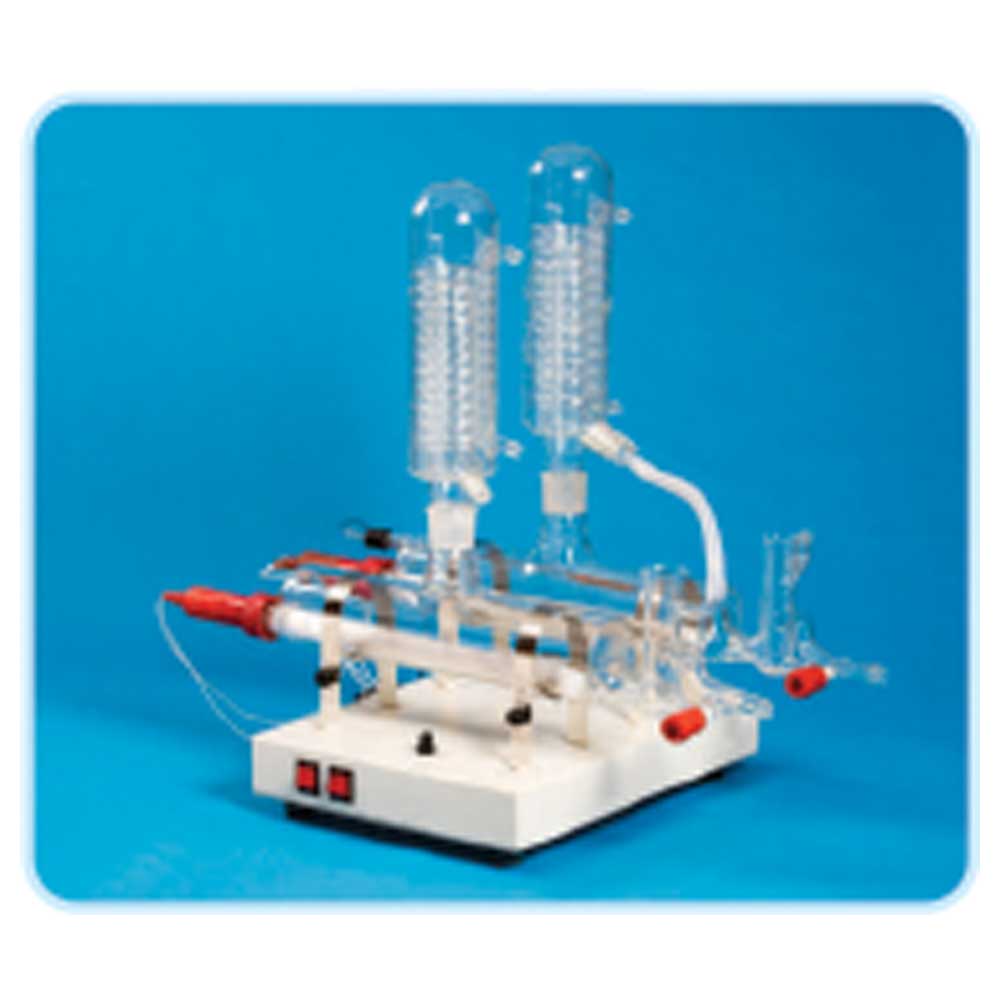

Water Still/Glass Distillation Unit Double
- Compact, easy to use& all parts are replaceable.
- Electrical Power: 220/240 V, 50/60Hz, Single Phase Supply.
- The stand is powder coated for rust free operation and lustrous appearance.
- Drain nozzle/Teflon Screw Cock is provided for easy cleaning and maintenance.
- The unit automatically switches off if water level in the boiler falls below heater.
- Distillate temperature is around 25 to 45°C which is ensured by an efficient condenser.
- Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.
- Replaceable Silica Heater: Boiler is fitted with a removable Silica Sheathed (Quartz) Heater and
- Screw Threaded connector for ease of cleaning when scaling is formed. Quartz heaters are easy to assemble and dismantle
Unique Feature
These models are fitted with in-built Safety Cut-Off Pressure Temperature Switch (PTS) to protect the glass parts in the event of water supply failure or overheating.
Conductivity 0.8 to 1 μs/cm
Distillate Quality pyrogen free.
CH14031
Available Options
| Cat. No. | Output Capacity (Approx.) | Power Rating (Total) | Cooling Water Consumption (Approx.) | Packing Dimensions W x D x H | Weight Gross | Quantity | |
|---|---|---|---|---|---|---|---|
| CH14031-20D | 2 Ltr/hr | 3.0 kW | 120 Ltr/hr | 66 x 50 x 63 cm | 20 kg | ||
| CH14031-40D | 4 Ltr/hr | 6.0 kW | 150 Ltr/hr | 66 x 62 x 65 cm | 24 kg |
