SuperLabᵁᴾ

Availability:

In Stock


For pure H₂O Type ASTM II / CLRW (CLSI) / ISO 3696

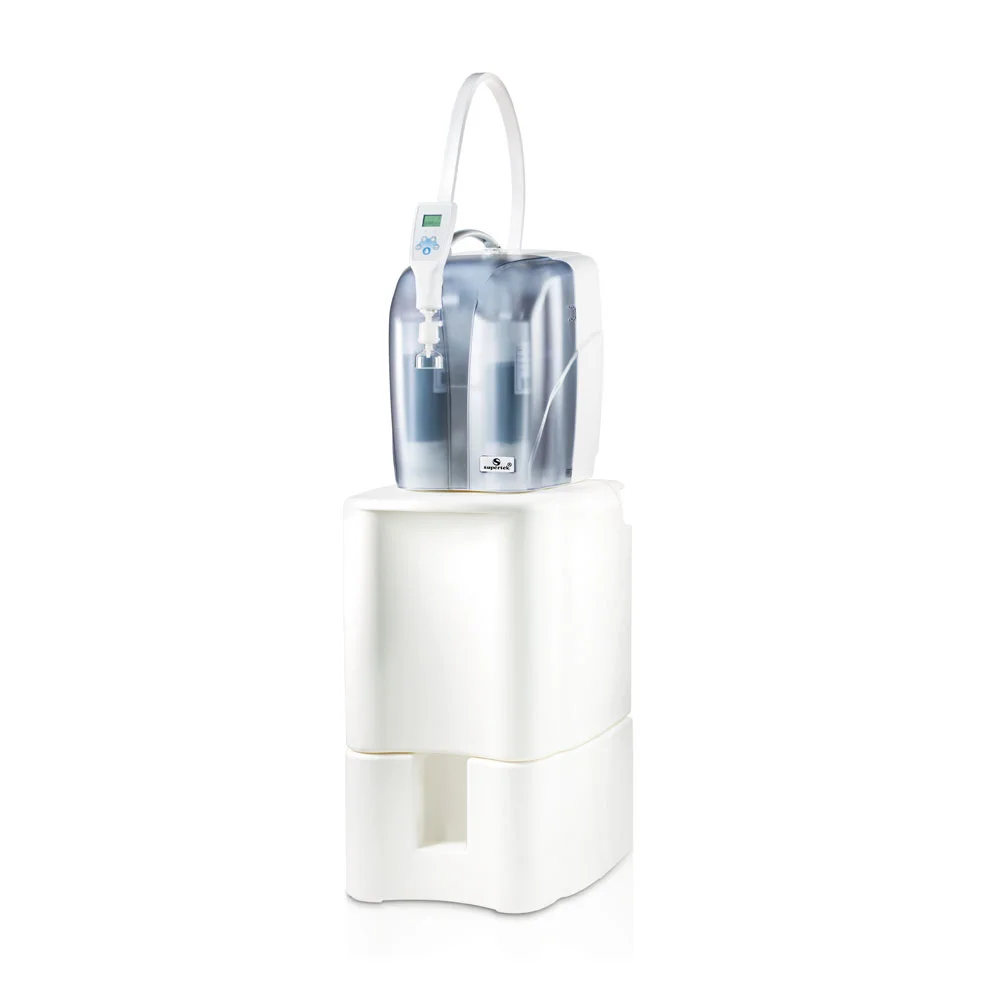

The SuperLabᴸᵁᴾ is a high-capacity Type II water purification system engineered for continuous, reliable performance in laboratory environments. It delivers up to 40 L/h of ASTM II / CLRW-grade water with a consistent 2 L/min dispensing rate. With up to 100 litres of recirculated storage, it’s ideal for autoclaves, clinical analysers, and scientific applications requiring pressurized output. Designed for flexibility, SuperLabᴸᵁᴾ can be installed on a tower, under a bench, or on mobile castors to save space.

Product Features

  • Super Fill digital dispenser for precise volume control

  • Dual cartridge design for stable, long-term Type II output

  • UV-sterilized 100L tank with internal recirculation

  • Space-saving installation: tower, mobile, or under-bench

  • Dispensing rate: up to 2 L/min

  • Generation capacity: up to 40 L/h (Type II)

  • Microbial control is achieved via interval-based recirculation and/or integrated UV treatment

  • Built-in leakage sensor for safety

  • Non-contact level sensor keeps stored water clean and fresh

Applications: Super Lab UP 20Used in dissolution testing, preparation of media and buffers, rinsing of laboratory glassware, and as feedwater for clinical analysers.

Note: For the Accessories & Consumables Please Contact the Sales Representatives.

SL-UP

Cat. No.System NameQuantity
SL-UP-20Super Labᵁᴾ 20
SL-UP-40Super Labᵁᴾ 40

Technical Specifications

Parameter SuperLabUP 20 SuperLabUP 40
Production capacity at 15°C 20 20
Conductivity µS/cm 0.067 – 0.1 0.067 – 0.1
Resistivity MΩ·cm 15 – 10 15 – 10
TOC ppb < 30 < 30
Pure water outlet type Standard Standard
Retention of bacteria, Particles & Pyrogens % 95 – 99% 95 – 99%
Particles ≥ 0.2 µm No particles ≥ 0.2 µm No particles ≥ 0.2 µm
Bacterial Content CFU/ml < 0.01 < 0.01
UV Photo-Oxidation (254nm) Optional Optional
General Technical Data
Operating Pressure bar 2 – 6 2 – 6
Supply Voltage Volts/Hz 90 – 240 / 50–60 90 – 240 / 50–60
Power Consumption kW 0.1 0.1
Water Connections 8mm 8mm
Ambient Temperature 2 – 35 2 – 35
Dimensions W x H x D mm 511 x 1520 x 575 511 x 1520 x 575
Weight 40 40
Feedwater Requirements
Conductivity < 2500 < 2500
TOC < 2000 < 2000
Chlorine Content < 5 < 5
Silt Density / Fouling Index (SDI or FI) < 12 < 12
Manganese and Iron content mg/l < 0.1 < 0.1
Temperature °C 2 – 35 2 – 35
Hardness Up to 300 ppm Up to 300 ppm



SL-UP Category:
System Name

Super Labᵁᴾ 20, Super Labᵁᴾ 40
