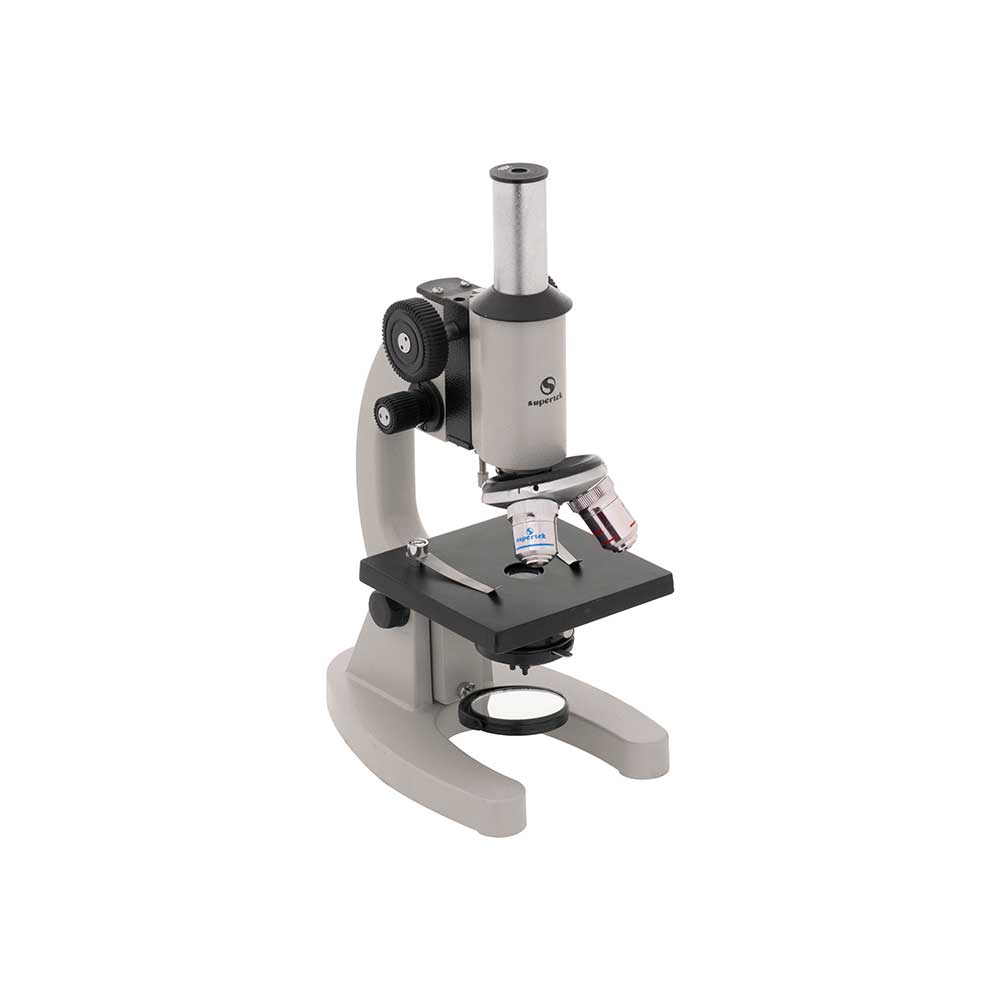

Student Microscope, Model 20202


General Features

  • Pressure die-cast parts to ensure strength and uniformity.
  • Well, proportioned stable, rigid and vertical body inclinable through 90°.
  • Mechanical tube length 160 mm.
  • Separate knobs for coarse and fine focusing. Coarse knobs are with tension adjustment arrangement.
  • Triple revolving nose-piece with international standard threads, with click stops ensuring correct centering.
  • High-grade achromatic objectives and Huygenian eye-pieces for sharp and aberration-free image.
  • Safety stopper to prevent damage to slides and objectives.
  • Fixed square stage of 110×110 mm with two nonremovable stage clips.
  • Sub-stage plano concave daylight mirror reflector in metal mount, replaceable by an electrical illuminator.
  • Smooth black or scratch-resistant grey epoxy finish.
  • Dust cover and cleaning cloth.
  • Packed in moulded styrofoam box or wooden cabinet with lock and key.
  • Stage fitted with iris diaphragm with a sub-stage two-lens Abbe Condenser N.A. 1.2, having helical motion

Optics
Eye-pieces: Huygenian x10 and x15
Objectives: Achromatic x10, and x40 (SL)
Magnification: x100 to x600

B10070
