Electromagnetic Field Demonstrator

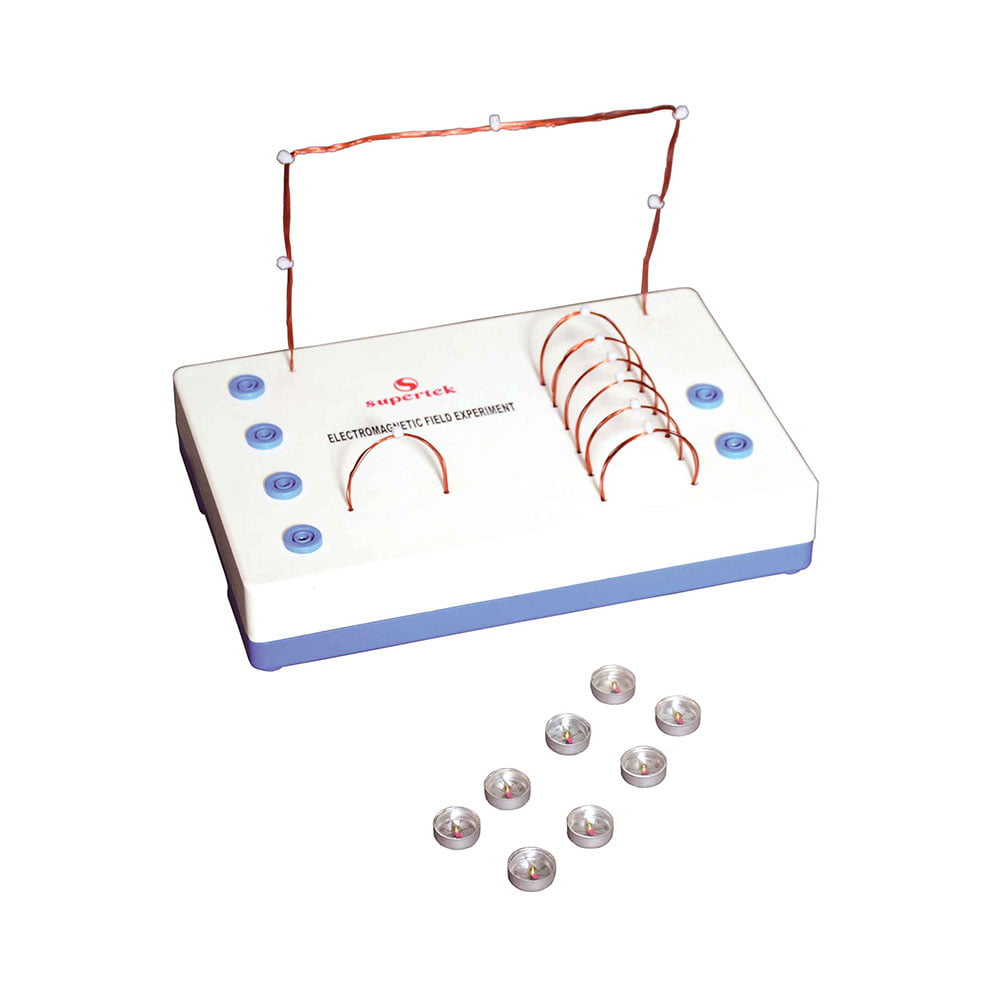

This apparatus demonstrates the magnetic field patterns associated with the different shapes of current carrying conductors. Comprises three conductors, each of different shape/configuration – straight rectangular, circular loop and solenoid – all mounted on a plastic base. Each configuration is provided with a pair of 4 mm sockets to connect them to a low voltage DC power source, with output current not exceeding 5 A. With the included iron filings and 8 magnetic compasses, you can investigate the associated field and flux patterns.
